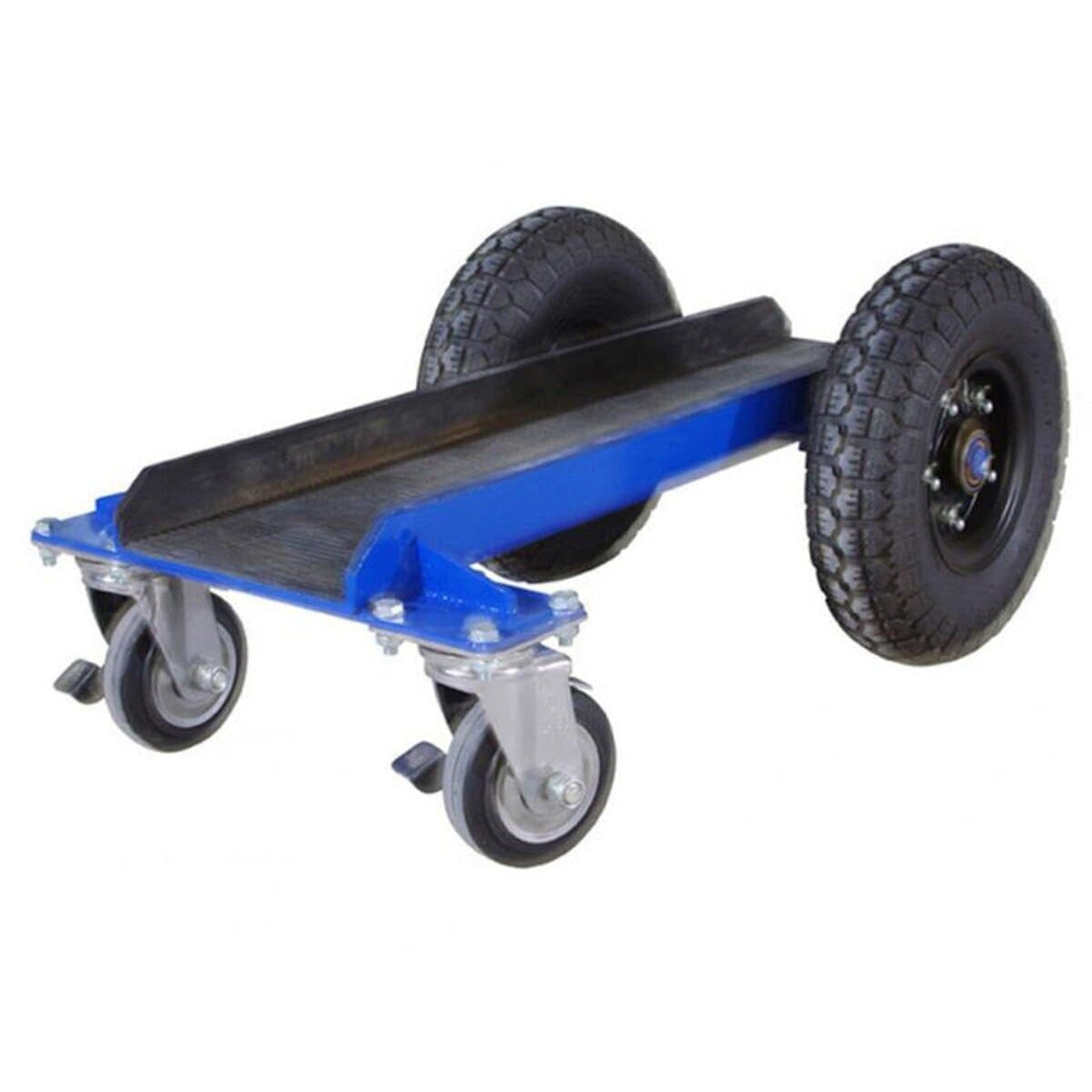

Aardwolf Broad Trolley - ABT01
Large trolley with pneumatic back wheels. Vulcanized rubber on the bottom, sides, and top of the support plate to avoid chipping the edges of finished workpieces.
Ideal for moving door frames and other wide material.
Features
- 2 pneumatic rubber tires at the back
- 2 swivel wheels at the front
- Bottom, sides and top edges of the channel are rubber padded

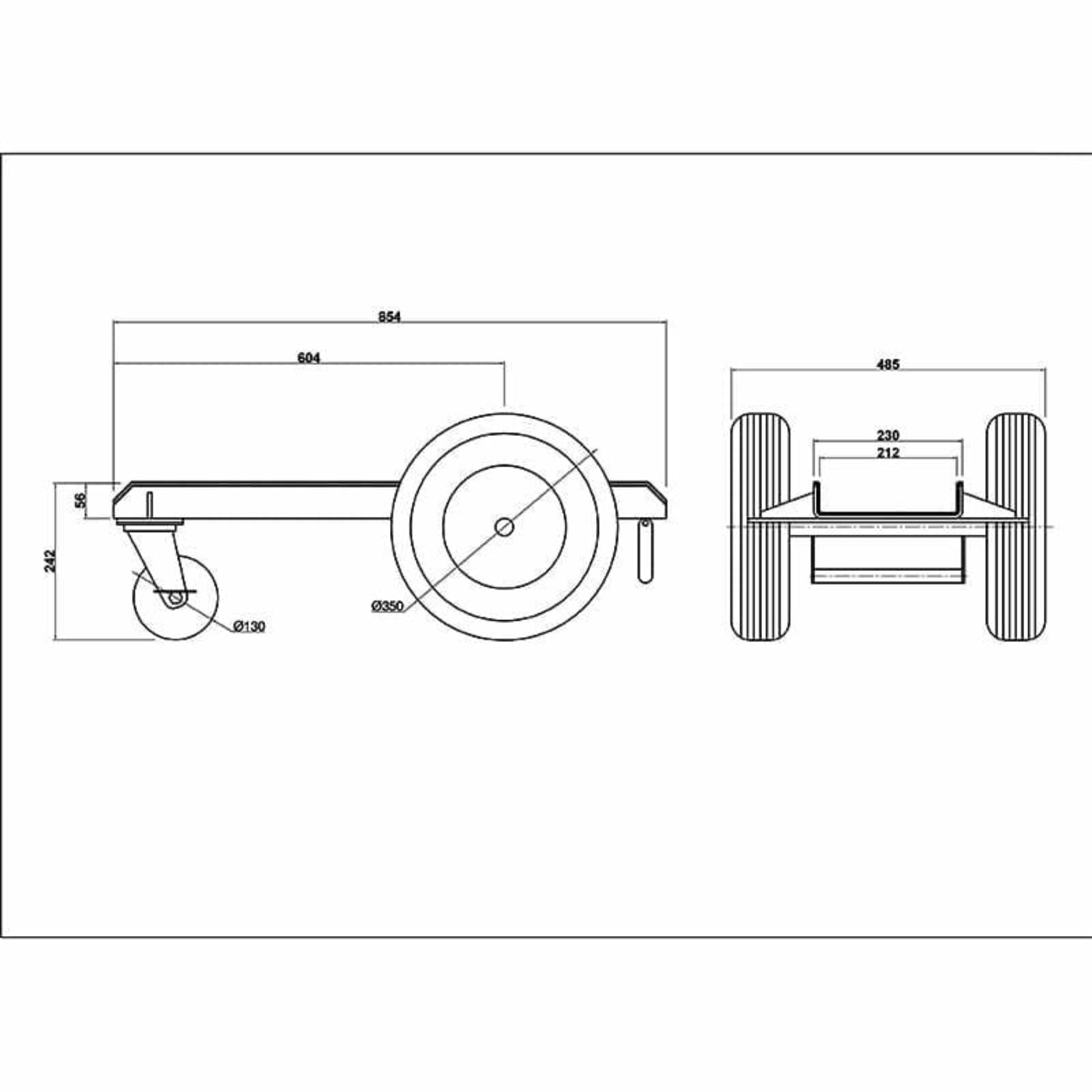

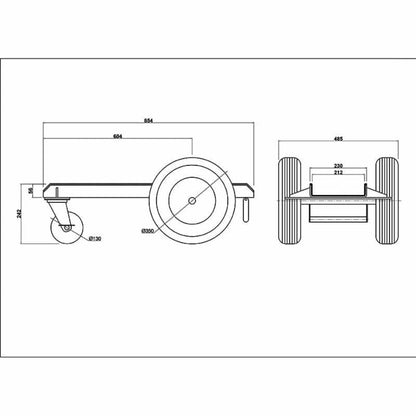

Specifications
|
Metric
(mm-kg) |
Imperial
(inch-lb) |
| Rubber wheel |
350 |
13.8" |
| Working load limit |
450 |
992 |
| Support plate channel |
854x212x50 |
33.6"x8.3"x2" |
| Body |
350x95 |
13.8"x3.7" |
| Net weight |
28 |
61.7 |
| Gross weight |
29 |
64 |
What Our Experts Think
-
Heavy-Duty Design: Built with a robust support plate measuring 854 x 212 x 50 mm, providing a stable platform for transporting heavy materials.
-
Enhanced Mobility: Features two 350 mm pneumatic rubber tires at the back and two swivel wheels at the front, ensuring smooth movement over various surfaces.
-
Protective Padding: The bottom, sides, and top edges of the channel are rubber padded to prevent chipping and damage to finished workpieces.
-
High Load Capacity: Capable of supporting a working load limit of 450 kg (992 lbs), making it suitable for handling substantial loads.
-
Compact Storage: With a net weight of 28 kg and gross weight of 29 kg, it offers a balance between strength and portability.
Q&A
Q: What is the Aardwolf Broad Trolley ABT01?
A: The ABT01 is a heavy-duty trolley designed for safely transporting wide, fragile materials like stone slabs, glass panels, and door frames.
Q: What is the load capacity of the ABT01?
A: It can carry up to 450 kg (992 lbs), making it ideal for commercial and industrial use.
Q: How does the ABT01 protect materials during transit?
A: The support plate is fully lined with vulcanized rubber on all edges to prevent chipping or surface damage.
Q: What kind of wheels does it have?
A: It features two pneumatic tires in the back for shock absorption and two swivel front wheels for smooth, easy maneuvering.
Maintenance Tips
-
Regular Cleaning: Wipe the trolley with a damp cloth to remove dust and debris. For stubborn residues, use mild soap and water. Avoid abrasive cleaners to preserve the finish.
-
Inspect Rubber Padding: Check the vulcanized rubber on the bottom, sides, and top of the support plate for wear or damage. Replace any worn sections to prevent chipping of finished workpieces.
-
Examine Wheels: Inspect the pneumatic back wheels and swivel front wheels for wear or damage. Ensure they rotate smoothly and replace any damaged wheels.
-
Monitor Load Capacity: Adhere to the specified working load limit of 450 kg (992 lbs) to prevent overloading and potential damage.
-
Proper Storage: Store the trolley in a dry, sheltered area to protect it from environmental elements that could cause corrosion or damage.
