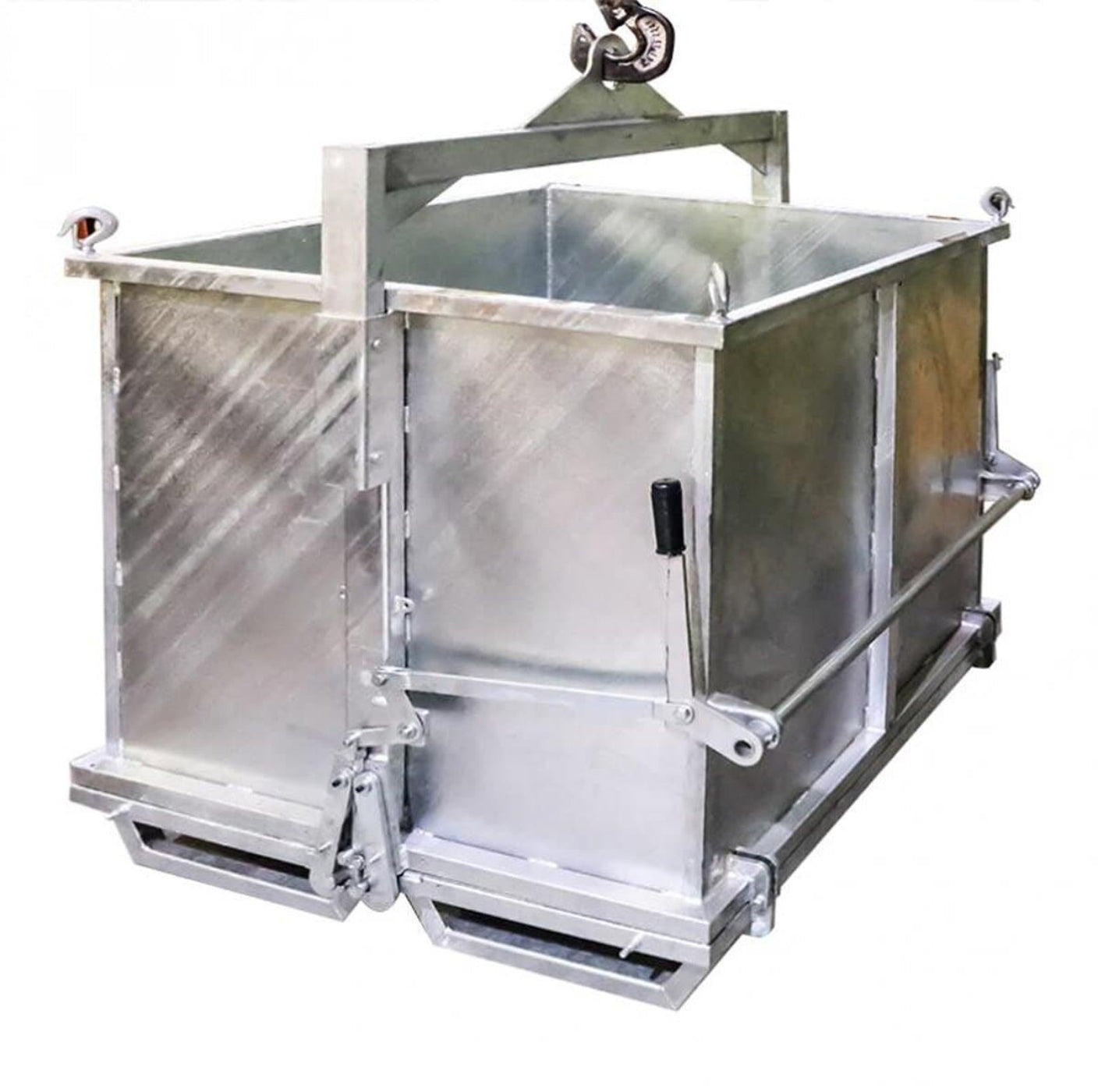

Aardwolf Drop Bottom Bin - ADBB-2000
The Aardwolf Drop Bottom Bin is a heavy-duty unit manufactured from 3mm plate and reinforced to handle all types of solid waste products.It can be use by forklift or overhead crane, for transporting site waste from one location to a dump point, where the contents are emptied into a larger bin or dump truck. Complete emptying is carried out by pulling the draw handle, which allows the floor to drop open. Bottom is closed by an automatic locking mechanism when bin is lowered to the ground.
FeaturesÂ
- Sheet metal sides with sheet metal base.
- Hot dipped galvanised finish.
- Fork pockets.
- Crane lugs.
Specifications
|
Metric
(mm-kg) |
Imperial
(inch-lb) |
| Working load limit |
1500 |
3307 |
| Fork pocket (Width-Height) |
160x70 |
6.3"x2.8" |
| Fork pocket to fork pocket |
1063 |
41.9" |
| Net weight |
366 |
807 |
| Gross weight |
367 |
809 |
| Packaging dimensions |
1300x1300x1720 |
51.2"x51.2"x67.7" |
What Our Experts Think
-
Heavy-Duty Construction: Manufactured from 3mm steel plate with a hot-dipped galvanized finish, ensuring durability and resistance to corrosion.
-
Efficient Waste Handling: Designed for easy emptying; pull the draw handle to release the floor, allowing contents to drop open. The bottom doors automatically close and lock when the bin is lowered to the ground.
-
Versatile Mobility: Equipped with forklift pockets and crane lugs, facilitating transportation by both forklifts and overhead cranes.
-
Compact Design: Measures 1,293 mm in length, 1,280 mm in width, and 1,724 mm in height, with a net weight of 366 kg.
-
Robust Capacity: Supports a working load limit of 1,500 kg (3,307 lbs), making it suitable for handling substantial waste volumes.
Q&A
Q: What is the Aardwolf Drop Bottom Bin – ADBB-2000?
A: The Aardwolf ADBB-2000 is a heavy-duty waste disposal bin designed for the stone industry. It facilitates the safe and efficient disposal of solid waste materials, such as stone cuttings and debris, using either a forklift or an overhead crane.
Q: How does the ADBB-2000 operate?
A: To empty the bin, pull the draw handle, which causes the floor to drop open. The bottom doors automatically close and lock when the bin is lowered to the ground, ensuring safe and controlled disposal of contents.
Q: What lifting options are available for the ADBB-2000?
A: The bin is equipped with crane lugs at each corner for overhead lifting and features fork pockets measuring 6.3" W x 2.8" H, with a 24" internal distance between fork pockets, allowing for easy maneuvering using a forklift.
Q: What is the price of the ADBB-2000?
A: The Aardwolf ADBB-2000 is priced around $3,711.00, though prices may vary depending on the retailer and location.
Maintenance Tips
-
Regular Cleaning: Wipe down the bin with a damp cloth to remove dust and debris. For stubborn residues, use mild soap and water. Avoid abrasive cleaners to preserve the finish.
-
Inspect Locking Mechanism: Check the automatic locking mechanism for proper function. Ensure it engages and disengages smoothly when the bin is lowered to the ground
-
Examine Fork Pockets and Crane Lugs: Inspect the fork pockets and crane lugs for signs of wear or damage. Ensure they are free from deformation and securely attached to maintain safe handling.
-
Monitor Load Capacity: Adhere to the specified working load limit of 1,500 kg (3,307 lbs) to prevent overloading and potential damage.
-
Proper Storage: Store the bin in a dry, sheltered area to protect it from environmental elements that could cause corrosion or damage.
