12V - 300AH - 3.8kWh Lithium Battery Bank

Save 10%

Price:
Sale price$1,376.99 Regular price$1,529.99

Description

5,000 Cycles. LiFePO4. 10+ Year Lifespan.

RICH SOLAR 12V lithium battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint. Easily uses the same space as your existing 12V battery and replaces lead acid, AGM or Gel battery applications in RVs, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries.

Features:

  • Extremely high number of charge/discharge cycles
  • > 10 Year lifespan with proper maintenance
  • Built-in smart battery management system
  • Wide operating temperature range
  • Unsurpassed high temperature performance
  • Green energy without metal contaminant
  • Low maintenance
  • High amp capacity
  • Stable output voltage
  • Little self-discharge
  • Over charging or discharging protection.
  • Over current & short circuit protection.
  • High & low temperature disconnects
  • Charge Voltage: 14.6V
  • Max Charge Current: 50 A
  • Max Discharge Current: 100 A
  • Battery Dimensions: 12.8″L x 6.6″W x 8.5″H
  • Weight: 21.8 lb

BMS Safety Protection

  • Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
  • Convenient removable carry handle
  • Lightweight
  • Short circuit protected
  • Physical damage to battery case will not cause fire
  • Excessive thermal exposure will not cause a fire
  • Able to withstand over-charge/over-discharge without damage to the battery
  • Sophisticated Battery Management System (BMS)

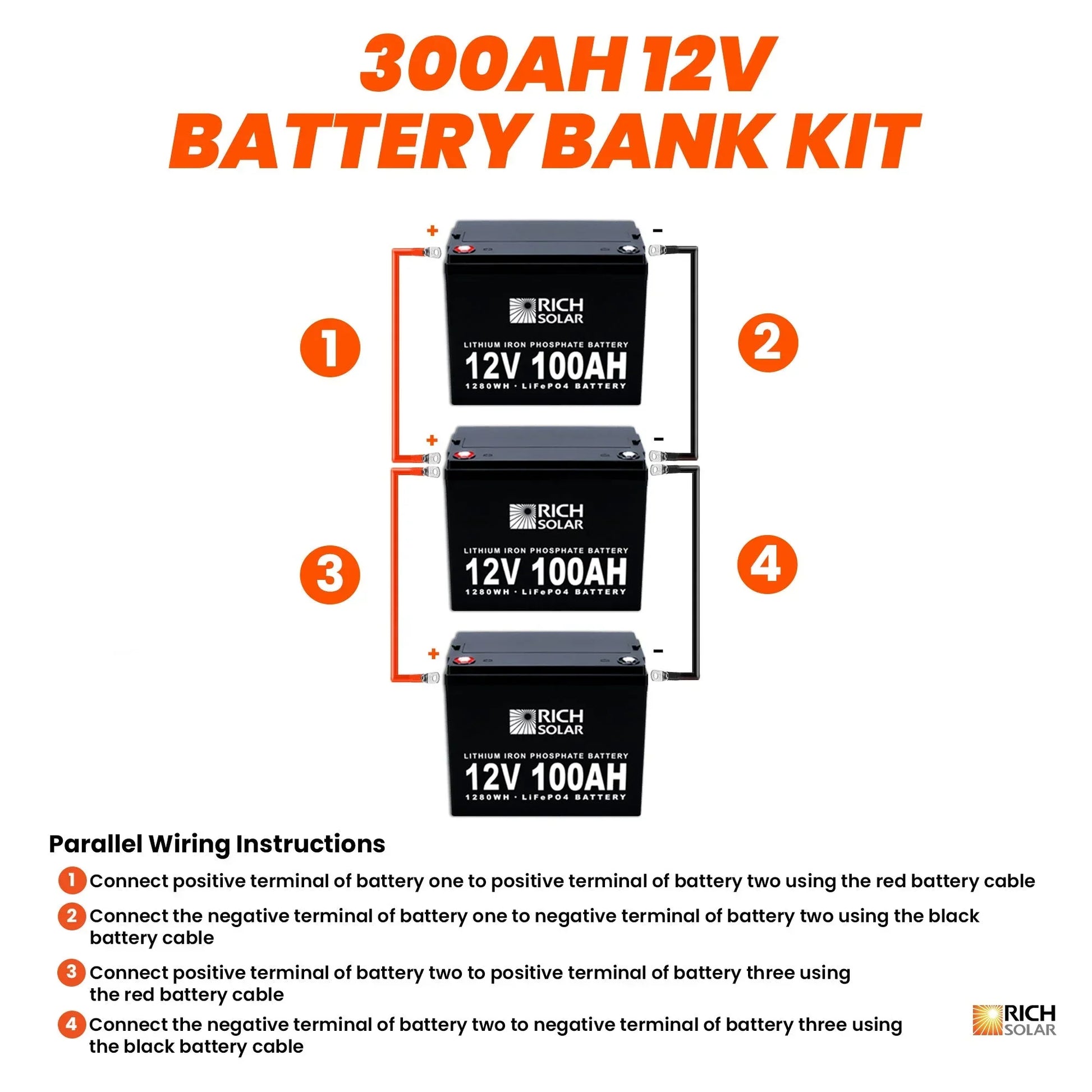

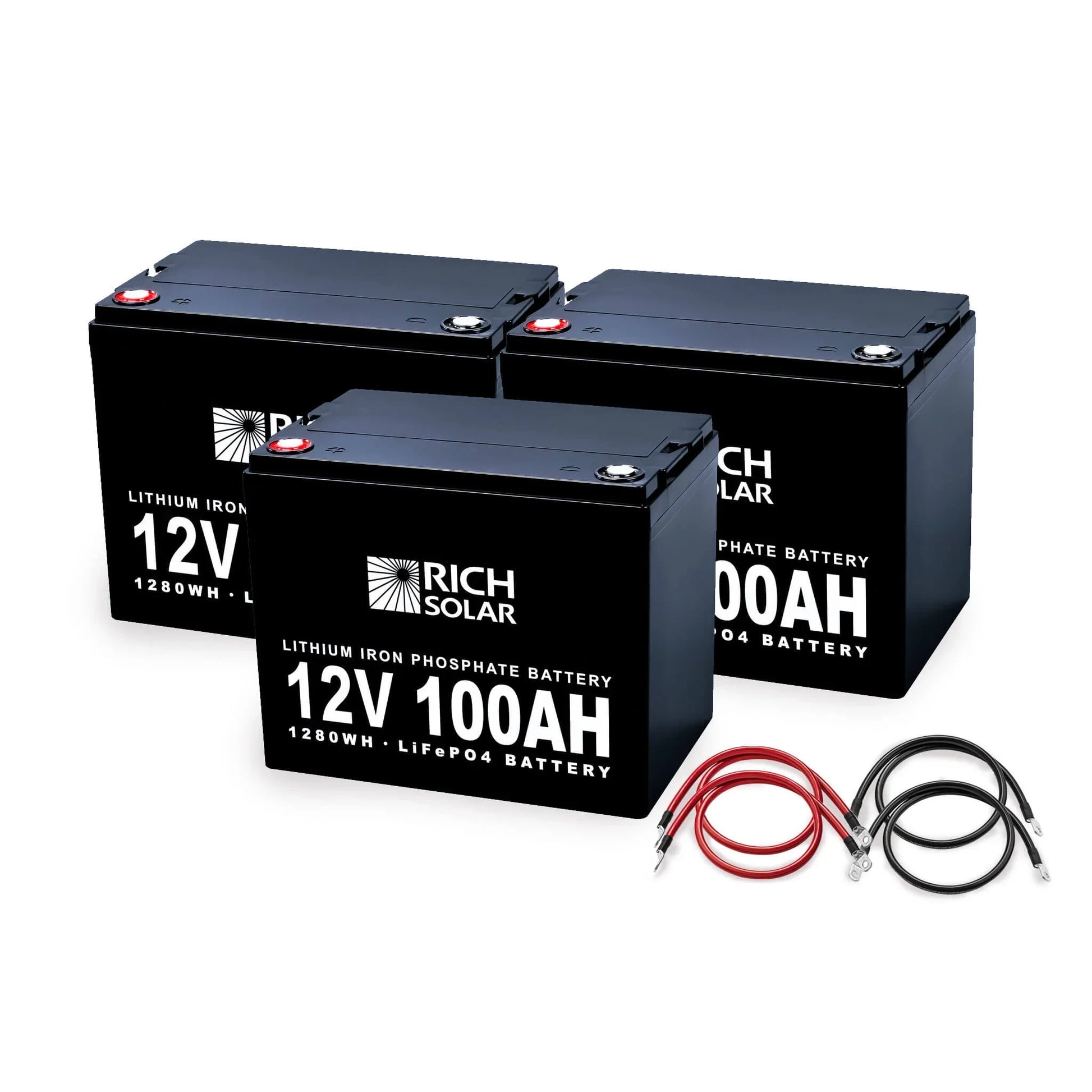

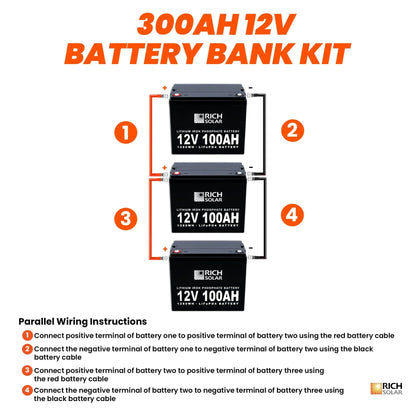

This 300AH 12V 3.8kWh Lithium Battery Bank comes with:

  • 3x 12V 100AH LiFePO4 Battery
  • 4x 1ft 2 AWG Battery Cable

12V 100Ah LiFePO4 Lithium Iron Phosphate Battery Specifications

Electrical Specifications
Nominal Voltage:  12.8V
Nominal Capacity(at .5C, 77°F): 100Ah
Minimum Capacity (at .5C, 77°F): 95Ah
Expected Cycle Life:  >3000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

Operating Specifications
Charge Method: Smart charger, constant current, constant voltage
Operating Voltage:  12.8 V
Capacity:  100 Ah
Energy: 1280 Watt Hours
Charge Voltage Range (Max 14.6V):  14.4 -14.6V
Continuous Charge Current:  50A
Continuous Discharge Current:  100A
Over Voltage Shutdown: 15.6 +/-0.2V
Discharge Cut-off Voltage:  8V =/- 0.5V
Self Discharge (stored at 50% SOC):  < 3%/month
Waterproof:  IP65

Temperature Performance
Charge Temperature: 32° F to 140° F
Discharge Temperature:  -4° F to 140° F
Storage Temperature: -4° F to 140° F
BMS High Temperature Cut-off: 149°F
BMS Low Temperature Cut-off:  32°F

Physical Specifications
Battery Dimensions: 12.8″L x 6.6″W x 8.5″H
Weight: 21.8 lb
Battery post size 5/16″

BMS Operation


Over Charge Protection
Over charge detection voltage: 3.9 +/- 0.05V
Over charge detection delay time:  0.96 – 1.4s
Over charge release voltage:  3.80 +/-0.05V
Maximum charge voltage: 3.65 +/-0.05V

Over Discharge Protection
Over discharge detection voltage:  2.0V +/- 0.05V
Over discharge detection delay time: 115-173ms
Over discharge release voltage:  2.3V +/- 0.10V
Over Current Protection Over current detection delay time: 9 +/- 2ms
Over current release condition: Cut load


Polarity Reverse Protection: Yes

Short Circuit Protection: Yes

3 Year Manufacturer Defect

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
