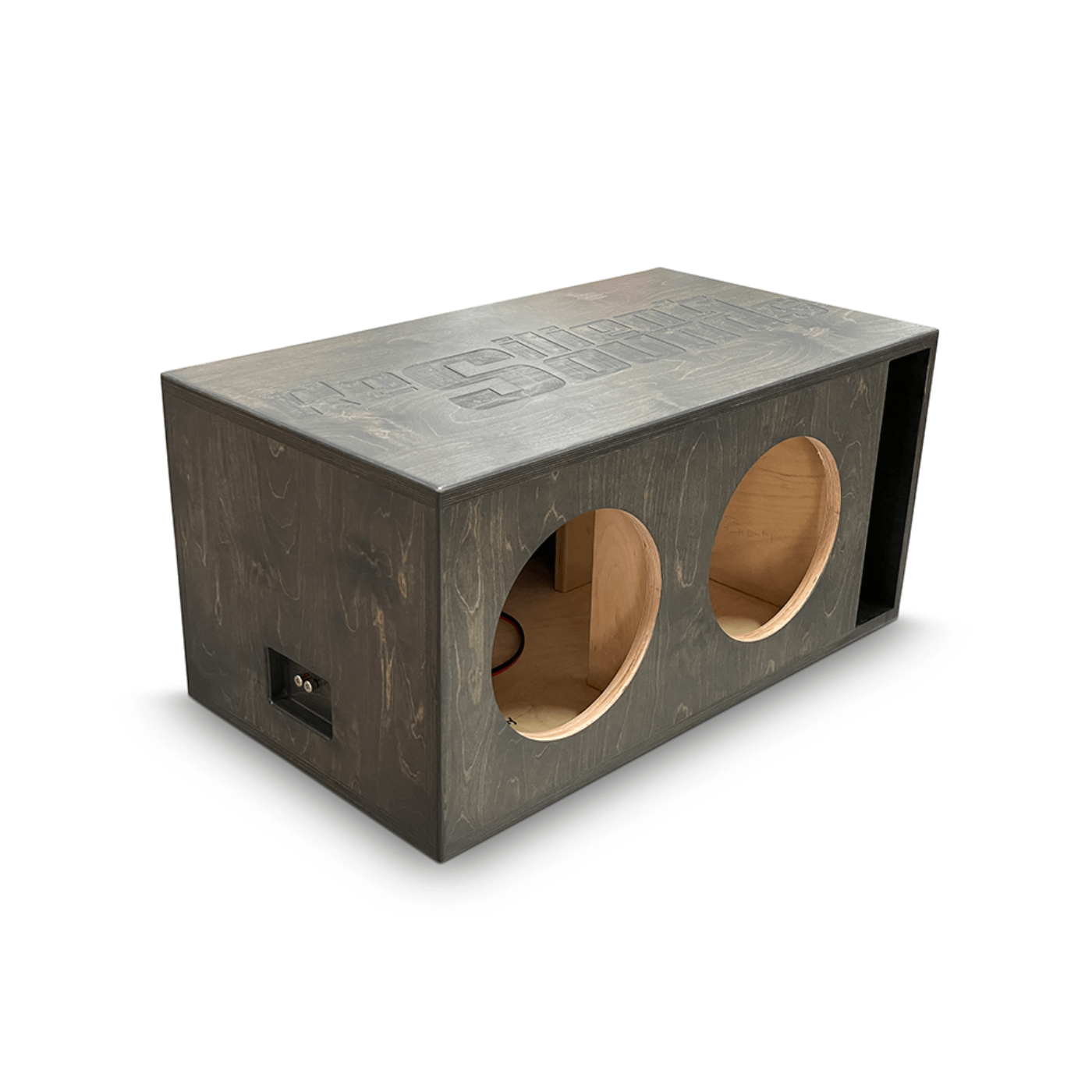

Resilient Sounds Dual 12" Platinum v2 Subwoofer Enclosure - AABE-RS-PTv2-D12-HD
Custom built enclosure specifically for dual Resilient Sounds Platinum v2 12"
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for dual Resilient Sounds Platinum v2 12" subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA. subwoofers.
Specifications
| Net Enclosure Volume |
4.5 cubic feet |
| Tuning Frequency |
32 Hz |
| Port Area |
64 square inches |
| Port Dimensions |
16" x 4" |
| Subwoofer Cut-Out Diameter |
11.1175 inches |
| Enclosure Material |
1" Birch Plywood |
| Plywood Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal Type |
Pre-wired Metal Binding Post |
Dimensions
- 18.0" tall
- 36.75" wide
- 21.0″ deep
What our Experts Think
-
Optimized Design for Performance: This enclosure is specifically engineered to house two Resilient Sounds Platinum v2 12" subwoofers, ensuring optimal performance and sound quality.
-
High-Quality Construction: Built with 1" birch plywood, known for its durability and ability to withstand vibrations produced by powerful subwoofers.
-
Precision Tuning: With a tuning frequency of 32 Hz, the enclosure is designed to enhance low-frequency response, delivering deep and impactful bass.
-
Adequate Porting: The enclosure features 64 square inches of port area, facilitating efficient airflow and reducing air turbulence, which can lead to distortion.
-
Aesthetic Appeal: The gray stained finish and 17-ply birch veneer construction not only provide a sleek appearance but also add to the enclosure's structural integrity.
-
Pre-Wired for Convenience: Comes pre-wired with metal binding posts, simplifying the installation process and ensuring a secure connection.
Q&A
Q: What is the Resilient Sounds Dual 12" Platinum v2 Subwoofer Enclosure?
A: It’s a high-performance enclosure built to house two 12-inch Resilient Sounds Platinum v2 subwoofers, designed for deep, powerful bass.
Q: What material is the enclosure made from?
A: Constructed from premium MDF, it ensures strength, durability, and superior sound quality.
Q: Is this enclosure tuned for optimal bass output?
A: Yes, it’s precision-tuned to maximise low-frequency performance and enhance the subwoofer's output.
Q: Can it accommodate other 12" subwoofers?
A: While designed for Platinum v2 subs, it can fit other 12" subwoofers with compatible mounting specs.
Q: Does the enclosure come fully assembled?
A: Yes, it arrives fully assembled for easy installation and quick setup.
Q: What kind of finish does the enclosure feature?
A: It’s wrapped in a durable, carpeted finish, offering protection and a sleek look that fits most vehicle interiors.
Q: Is this enclosure suitable for high-powered systems?
A: Absolutely — it’s built to handle the power demands of high-output audio setups with ease.
Maintenance Tips
-
Clean exterior regularly using a microfiber cloth to remove dust and prevent dirt buildup.
-
Ensure port openings are clear to maintain optimal airflow and bass response.
-
Inspect subwoofer mounting and wiring monthly to check for tightness and wear.
-
Avoid exposure to moisture and direct sunlight to preserve the enclosure’s finish and integrity.
-
Secure the enclosure firmly in your vehicle to reduce unwanted vibrations and potential damage.
-
Use an amplifier within the recommended power range to protect the subwoofers and avoid distortion.
-
Inspect terminal connections every 1–2 months for signs of corrosion or loosening.
