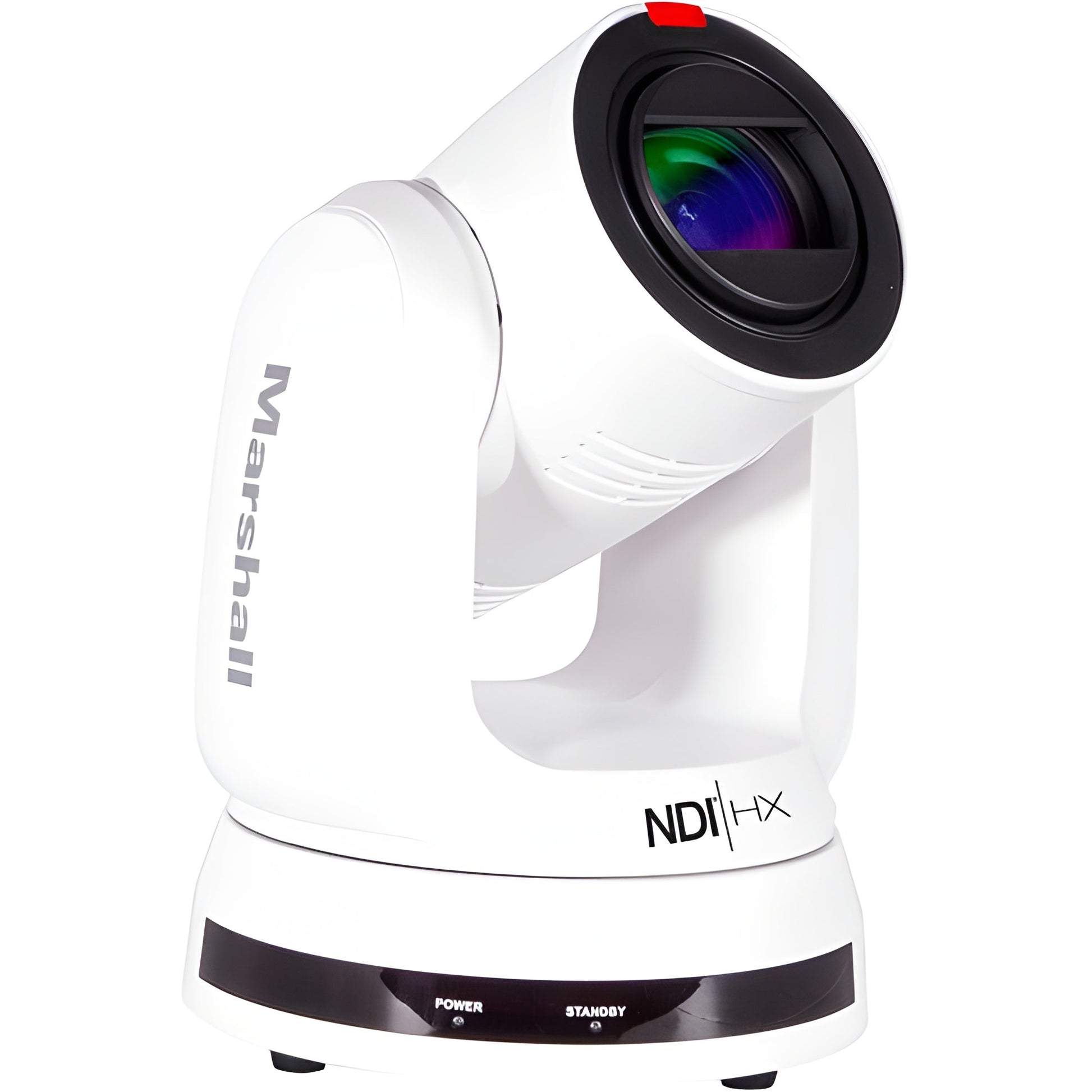

Marshall Electronics CV730-WH UHD 4K60 IP PTZ Camera with 30x Optical Zoom (White) - CV730W
Marshalls CV730 UHD 4K60 IP PTZ Camera, in white, is an indoor camera with a 30x optical zoom lens suitable for everything from small meeting rooms to large event spaces such as auditoriums. A tally lamp is built in right above the lens for applications requiring tally for your talent. Featuring an 8.5MP 1/1.8" sensor, the CV730 captures up to UHD 4K/59.94 resolution video and provides simultaneous 12G-SDI, HDMI, and IP outputs.
While a power supply is included, a single Ethernet cable, sold separately, can be used for power, control, video, and audio, or for just power and control while the video signal is sent via the other outputs. Via RS-232 input and output ports or an RS-422 port, up to seven cameras can be linked up in a serial connection, and you can remotely adjust and match settings such as iris, pan, tilt, zoom, white balance, exposure, pedestal, and many more over long distances or during setup. Auto settings can also be set up to track environmental fluctuations. Alternatively, an included IR remote control can be used to adjust settings, including selecting presets.
- Up to UHD 4K/59.94 Capture and Output
- Simultaneous 12G-SDI, HDMI & IP Outputs
- RS-232 and RS-422 Control for 7 Cameras
Features
Up to UHD 4K resolution capture and output at up to 59.94 fps
Simultaneous 12G/6G/3G-SDI, HDMI 2.0, and IP (HEVC/H.265) outputs
30x optical zoom (6.5 to 202mm), starting at 65° horizontal FOV
3.5mm TRS stereo audio mic/line input
RS-232 and RS-422 ports for controlling up to seven cameras
340° pan and 120° tilt range

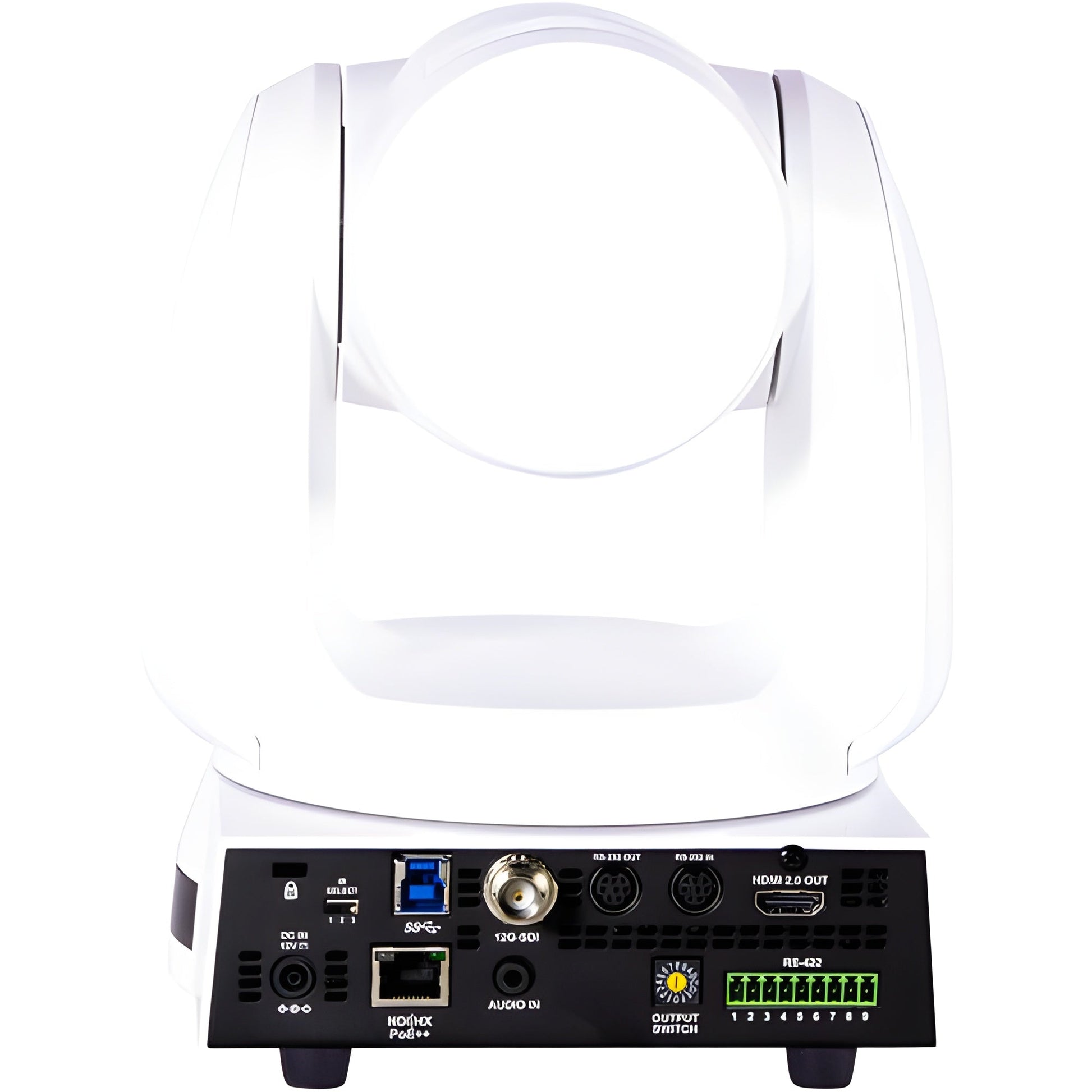

Dip switch on the rear
What Our Experts Think
-
Ultra HD 4K Resolution – Captures 4K UHD (3840x2160) video at 60fps for outstanding image clarity.
-
30x Optical Zoom – Provides detailed close-ups without compromising resolution, perfect for professional applications.
-
Smooth PTZ Control – Precise pan, tilt, and zoom functions allow for seamless remote operation.
-
IP Streaming & Connectivity – Supports NDI|HX, 3G-SDI, HDMI, and IP streaming, ensuring flexible workflow integration.
-
Low-Light Performance – Features HDR and advanced noise reduction for superior image quality in various lighting conditions.
-
Ideal for Professional Use – Perfect for broadcast studios, live events, corporate meetings, houses of worship, and esports.
-
Sleek White Finish – Blends well with modern setups while maintaining durability and reliability in demanding environments.
Q&A
Q: What is the Marshall Electronics CV730-WH UHD 4K60 IP PTZ Camera?
A: The Marshall CV730-WH is a professional UHD 4K PTZ camera with 30x optical zoom, designed for broadcast, live streaming, and professional video production. It comes in a white housing, ideal for blending into different environments.
Q: What is this camera used for?
A: It is perfect for broadcast studios, live events, houses of worship, corporate meetings, and sports productions, providing smooth pan, tilt, and zoom functionality for dynamic coverage.
Q: Does this camera support 4K resolution?
A: Yes, it captures UHD 4K video at up to 60fps, ensuring high-quality, detailed visuals.
Q: What connectivity options does it offer?
A: The CV730-WH supports IP streaming, 3G-SDI, HDMI, and NDI|HX, allowing flexible integration into production setups.
Q: Can this camera be controlled remotely?
A: Yes, it supports remote control via IP, RS-232, and RS-422, making it easy to manage in professional environments.
Maintenance Tips
-
Clean the Lens Carefully – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges without scratching.
-
Ensure Proper Ventilation – Keep air vents unobstructed to prevent overheating and maintain peak performance.
-
Check Cable Connections – Regularly inspect power, network, and video cables for secure connections and signal integrity.
-
Update Firmware – Install the latest firmware updates to enhance functionality, security, and compatibility.
-
Protect from Power Surges – Use a surge protector or an uninterruptible power supply (UPS) to prevent damage from voltage fluctuations.
-
Avoid Extreme Conditions – Keep the camera away from excessive heat, humidity, and direct sunlight to extend its lifespan.
-
Test PTZ Functions – Periodically check pan, tilt, and zoom operations to ensure smooth movement and responsiveness.
-
Secure Mounting – Ensure the camera is properly mounted and stable to avoid vibrations or misalignment.
