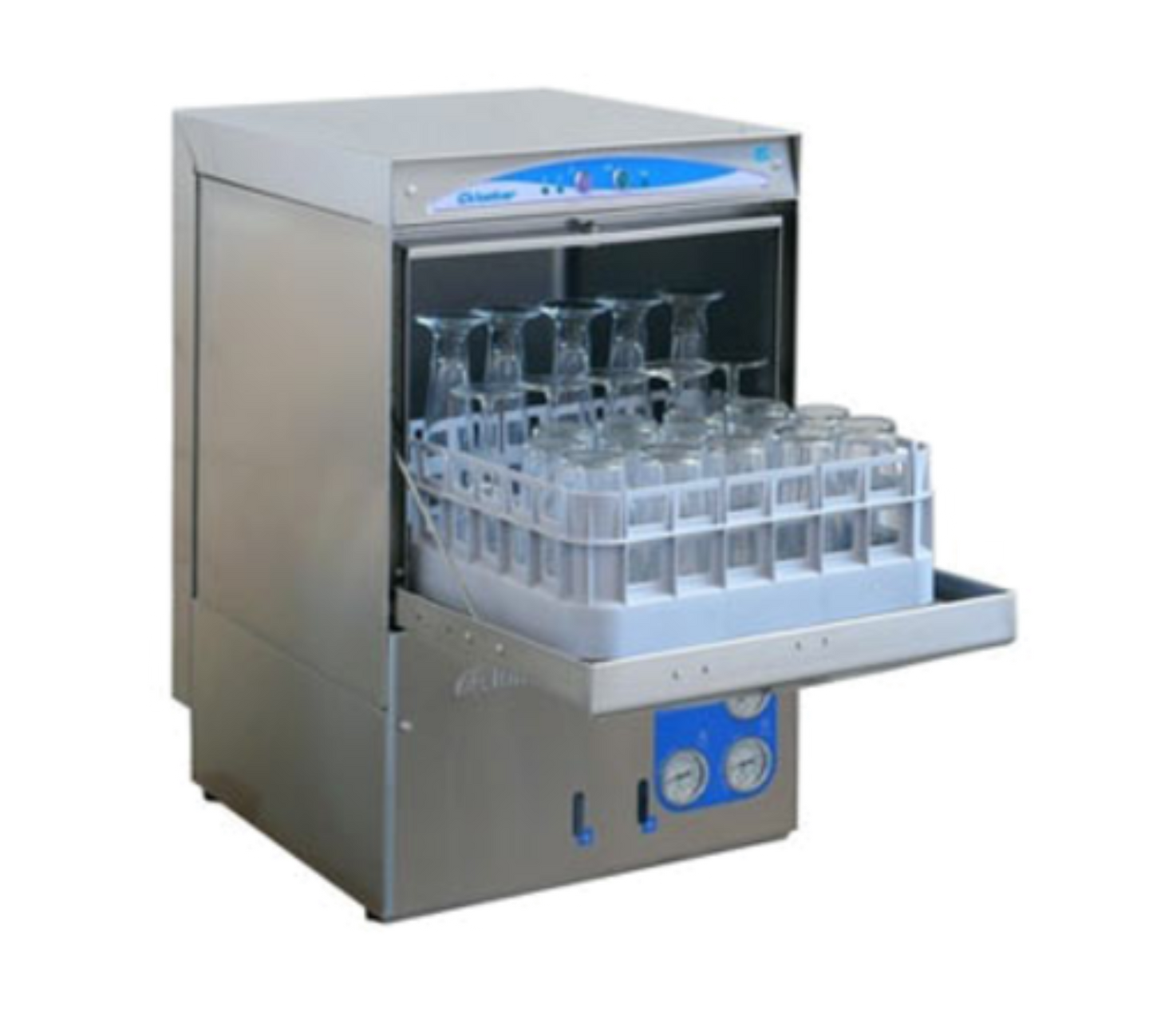

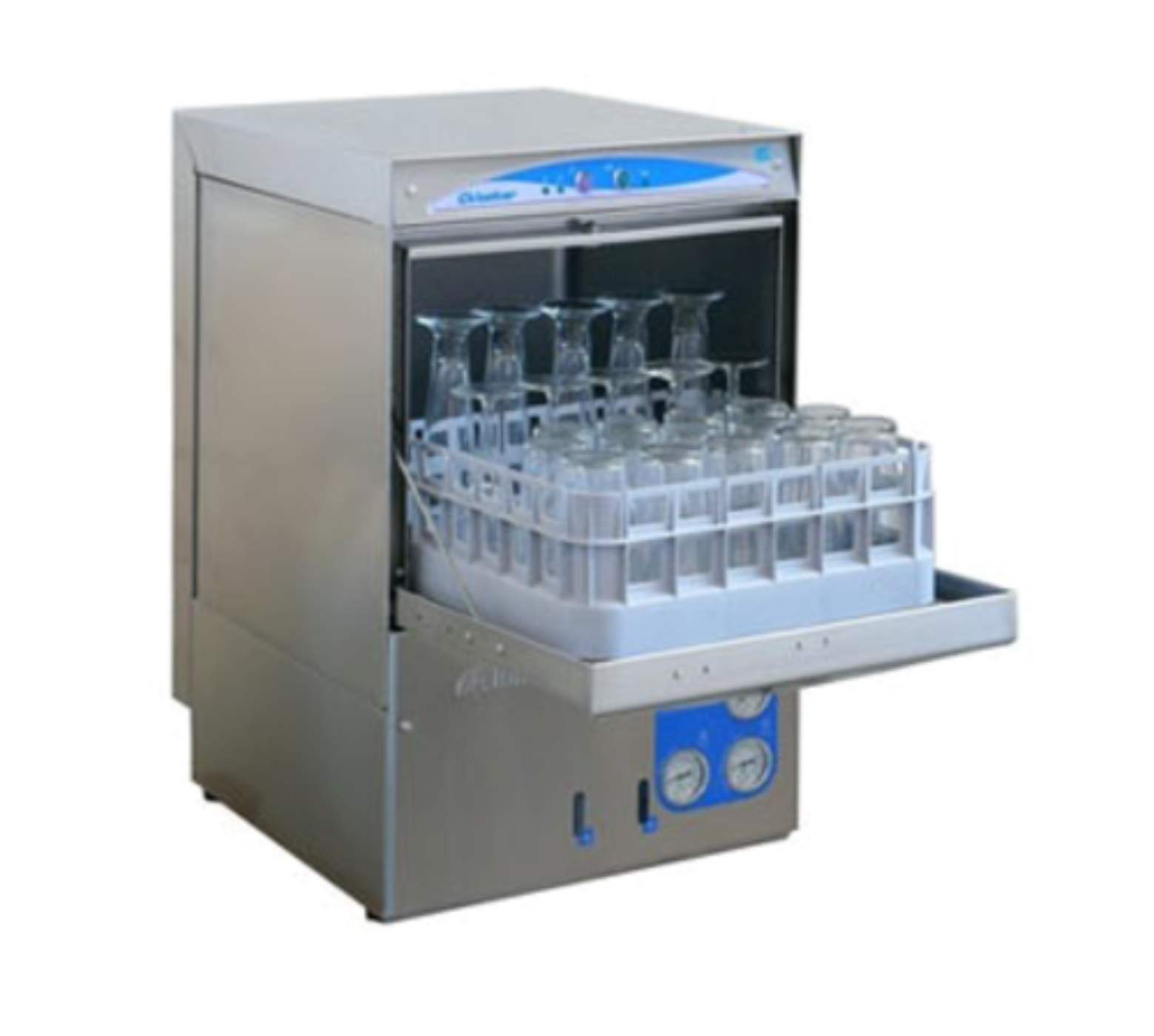

Eurodib USA Lamber Undercounter Dishwashers - DSP3
Lamber Glasswasher, 16" x 16" square basket, 2 minute wash cycle/30 baskets per hour capacity, wash and rinse temperature thermometers, removable control panel, rinse aid dispenser, gravity drain, automatic tank loading, door opening safety device, thermocontrol, security thermostat, includes (2) baskets for glasses, (1) saucers insert and (2) cutlery containers, 18/10 AISI 304 stainless steel construction, 208-240v/60/1-ph, 15 amps, 3.2kW, UL, cULus
Specifications
| Manufacturer |
Eurodib USA |
| Brand Name |
Lamber |
| Certifications |
cULus, UL |
| Height |
29.25 inches |
| Width |
18.13 inches |
| Depth |
20.0 inches |
| Shipping Weight |
120.0 lbs |
| Rack Size |
16" x 16" |
| Rack Per Hour |
Approximately 30 racks per hour |
| Temperature |
Low temperature |
| Style |
Door type |
| Cycle Time |
2-minute wash cycle |
| Controls |
Removable control panel |
| Features |
Wash/rinse temp thermometers, rinse aid dispenser, gravity drain, automatic tank loading |
| Safety Features |
Door opening safety device, thermocontrol, security thermostat |
| Accessories Included |
(2) glass baskets, (1) saucer insert, (2) cutlery containers |
| Construction |
18/10 AISI 304 stainless steel |
| Electrical |
208-240v / 60 Hz / single phase, 15 amps, 3.2kW |
Documents
What Our Experts Think
-
1. High-Speed Performance: Washes up to 30 racks per hour with a 2-minute cycle—perfect for busy cafés, bars, or small kitchens.
-
2. Space-Saving Build: Compact undercounter footprint (18.1" wide) fits tight workspaces without sacrificing capacity.
-
3. Hygienic Cleaning: Maintains rinse temperatures between 179–194°F, ensuring sanitation compliance for foodservice.
-
4. Energy Efficient: Uses just 0.63 gallons of water per cycle, minimizing utility costs and environmental impact.
-
5. Built to Last: Constructed from durable 18/10 AISI 304 stainless steel for long-term, heavy-duty use.
-
6. Easy to Operate: Simple controls, automatic tank loading, and removable panels streamline daily use and cleaning.
-
7. Safety Features: Includes door safety lock and thermal protection for reliable, risk-free operation
Q&A
Q: What is the Eurodib DSP3 designed for?
A: It's a high-temperature undercounter glasswasher ideal for bars, cafés, and small restaurants.
Q: How many racks per hour can it clean?
A: It can clean up to 30 racks per hour with a fast 2-minute wash cycle.
Q: What are the main features?
A: Features include built-in detergent and rinse aid dispensers, stainless steel wash and rinse arms, automatic tank loading, and thermocontrol for high-temperature sanitizing.
Q: What size glassware does it accommodate?
A: It fits glassware up to 11.8 inches tall.
Q: Is it easy to maintain?
A: Yes, it has a removable control panel, stainless steel construction, and a gravity drain system for easy cleaning and upkeep.
Q: What are the electrical requirements?
A: It runs on 208-240V, single phase, with a 3.2 kW power draw.
Q: What accessories are included?
A: Includes two 16" x 16" glass racks, one saucer insert, and two cutlery containers.
Maintenance Tips
-
Daily Cleaning: Turn off the machine, remove filters and overflow pipe, clean tank and jets, and wipe down all surfaces.
-
Use Proper Chemicals: Only use commercial, non-foaming detergents and chlorine-based rinse aid at recommended concentrations.
-
Descale Monthly: Use a phosphoric acid-based descaler to remove mineral buildup, especially in hard water areas.
-
Check Operation: Ensure correct detergent levels, proper placement of filters, and do not tamper with thermostats.
-
Idle Care: If unused for long periods, drain water completely and leave the machine open to dry.
