CreatBot D1000 is an affordable, professional, large-scale 3D printer.
Affordable And Reliable Large 3D printer
CreatBot D1000 was created to make industrial 3d printing of large-scale objects and prototype as easy as possible. It is an industrial 3d printer that responds to market demand and is embedded with a new smart dual extruder kit, an enclosed heated chamber, automatic leveling system and camera control for big, impressive, prints. Camera control technology allow customers to control printing process with an APP, which can get best printing quality with shortest time without failure. With a fast-heating platform and hot chamber this high-resolution large-print workhorse produces incredible results with high-quality materials. CreatBot D1000 sets a new standard in additive manufacturing and extends the material capabilities of large-scale 3d printers, it brings the possible to greatly reduce cost and time for more companies.
CreatBot D1000 will be your best choice with no doubt, if you are looking for an industrial large scale 3d printer for prototype and engineering-grade materials.
The most important, AFFORDABLE for every company!
One Cubic Meter Industrial Grade Large 3D Printer.
The D1000 is an upgraded from the Creatbot F1000. With a build volume of over 1000*1000*1000mm, it is the perfect machine for creating large and full size parts, prototypes, tools, molds, jigs & fixtures in-house. Within days you can have a fully functional high quality prototype. CreatBot big rolls of filament of PLA, ABS, ASA, PA-CF, etc are well suited for your big models without worrying about frequent replacement of filament. All of its features are manufactured to the highest standards. Every time, every part, no mistake.
Faurecia is a global advanced automotive system engineering and equipment supplier. They use the CreatBot 3D printer D1000 model to design and develop automotive seat molds, and are widely used in Audi, VW, NISSAN and GM motors. The molds in the video is their typical 3D printing product produced with the D1000 3D printer. The Bowl and lid are required to withstand 100MPa, we choose Nylon-carbon fiber materials for the production with 50% infill. Finally the prints performance are excellent and passed their strict testing!
Size worry-free
For High strength prototype
The CreatBot D1000 was created to make industrial 3D printing of large-scale objects and prototypes as easy as possible.
It is embedded with advanced technology for ultra big, impressive prints. It will be your best choice without a doubt if you are looking for an lndustrial large scale 3D printer for prototype and engineering-grade materials.
If you are tired of the fragility of PLA and the deformation of ABS, try our revolutionary material Ultra PA-CF.Print your large model with a big size nozzle and in a few days you will get an oversized model with high strength 80MPa and temperature resistance 150 ° C. The best choice for your prototype verification.

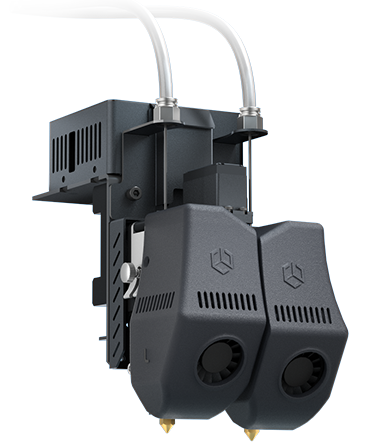

Auto-rising Dual Extruders 420 ℃
D1000 is embedded with a new smart auto-rising dual-extruder kit and hotend temperature up to 420 ℃. The hotend can quickly be replaced with a different size It is able to print not only large PLA +water solubility materials PVA
for prototype with fastest speed, but also ABS, PC, Nylon, Carbon Fiber, Flexible and more high performance material for direct application. The dual-hotend is easy to maintain and affordable to replace.
Outage Restore & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament if it powers off suddenly. It will continue to print from the last stopped point once powered back on. No trace!
The printer will avoid invalid printing by stoping print and warning when filament runs out.
Linear rail and Servo motors
When it reachs to 1000mm+ length, the small rail will have big deflection. The D1000 accurate linear rail structure is very thick and strong. It won’t deform or lose precision.
With servo motors, timeliness, fast response, no inertia, no delay, and closed-loop control of position which solves the problem of missing a step. Heat and noise are significantly reduced. It gives print model ultra high performance with high speed.
Hot Chamber + Filament Dry Room
60°C hot chamber ensures print quality for high performance materials. The fully enclosed chamber can block all external interference. Also this frame can reduce noises at the same time to provide constant temperature, so that the model won't deform.
The filament dry room provides chamber temperatures of 45°C and 65°C to dry 2*5kg/roll filament like PLA, nylon, PC, ABS and other materials with water absorption.
Auto Leveling Platform
Use of 100 points through the high precision servo probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.
HEPA Air Filter
The air filter system can adsorb impurities and gases that generate by printing special filament like ABS, Nylon, PC. Overall, safer and more environmental protection which is more suitable for houses, schools, and office spaces.
Camera Control Technology
Camera control technology allow customers to control printing process on speed, pause, temp, etc. with an APP remotely, which can provide the best printing quality in the shortest amount of time without failure. A very useful feature on large models and long time prints.
Technical Specs
| Printing | |
| Print Technology | Fused Deposition Modeling |
| Build Volume | Single Extrusion: 1000*1000*1000 mm Dual Extrusion: 940*1000*1000 mm |
| Number of Nozzles | Auto-rising dual extruders |
| Layer Resolution | 0.05 mm |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | ABS,PLA,Carbon Fiber,PETG,Nylon,PC,etc. |
| Nozzle Diameter | 1.0 mm（0.4~1.5 mm optional） |
| Print File Type | STL, OBJ, AMF, Gcode |
| Speed | |
| Best Printing speed | 60 mm/s |
| Max. Printing speed | 120 mm/s |
| Software | |
| Software | CreatWare, Simplify 3D, Cura, Slic3r, etc |
| Supported File Types | STL,OBJ,Gcode,AMF |
| Operating Systems | Windowsall, macOS |
| Special Function | |
| Outage Restored | Save data when power is off |
| Filament Detection | Pause printing when filament run out |
| Automatic Shut-down | Turn off the power automatically when printing is complete |
| Camera control | Camera remote monitoring and real-time control of the printing process |
| Temperature | |
| Max. Nozzle Temperature | 420 ℃ |
| Max. Bed Temperature | 100 ℃ |
| Hot Chamber Temperature | 60 ℃ |
| Filament Dry Room Temperature | 45 ℃/65 ℃ |
| Mechanical | |
| Construction | Power-Coated Steel, Aluminum Casting for Motion Components, POM |
| Build Plate | Aviation aluminum plates |
| Build Plate Leveling | Automatic |
| Extruder | Smart Dual Extruders |
| Stepper Motors | 1.8° Step Angle with 1/16 Micro-stepping |
| X Y Positioning Precision | 0.011 mm |
| Z Positioning Precision | 0.0025 mm |
| Electrical | |
| Power Requirements | 220~240 V, 50~60 Hz |
| Screen | 9.7-inch full color touch screen independent operating system (multi-language) |
| Rated Power | Printer: 4000W, Chamber: 4500W |
| Storage Media | U Disk |
| Connectivity | USB |
| Size & Weight | |
| Product Dimensions & Weight | 1810*1350*1942mm 650kg |
| Packing Size & Weight | 1980×1520×2200mm 750kg |
- 1000*1000*1000mm
- High resolution&speed
- Camera control technology
- Reliable 24/7
- Fully enclosed
The whole-steel body not only ensures the stability during printing but also the greatly extended working life. The optimization and cooperation of overall structure ensures the sustainable and efficient operation. The first batch of CreatBot 3d printers with whole-steel body have been working for 9 years and more than 30,000 hours.
After-sale Service
Whether you’re having a problem with something you bought from us, or just have some questions about us, we’re always happy to help. Whenever you have a question, just head over to our support team via support@creatbot.com to get in touch with our team. We do our best to get back to you as soon as possible and offer email service Monday-Friday. You should receive a response in 24 hours. We also schedule Skype online support as needed. Start a support case with us, and if we can’t resolve it quickly via email, we’ll be happy to talk to you on Skype.
Warranty
CreatBot represents and warrants to the first End-User of original products that the products shall materially conform to CreatBot’s published specifications in effect as of the date of delivery, subject to the terms and conditions below.
Warranty Period
6 months after date of delivery to first End-User.
Return Policy
CreatBot accepts returns on a very limited basis: for any electronic items, returns are only accepted on devices which have serious and irreversible quality defect problem, meanwhile, the End-User must apply for the returns within 3 calendar days from the date of delivery.
Return Process
If returns or changes are acceptable by both, the brief return process will be as below:
- Contact with our sales team to offer the photo to show the printer condition.
- If printer condition is OK, we will refund you 30% of the money in advance.
- Please ensure to use the original packing box it pack the printer p-4 rounded-lg bg-light border to avoid the damage of transportation, and return the machine by our appointed express.
- Show us the tracking number, after confirming the tracking number, we will refund you 40% of the money.
- After we receive the machine and confirm the printer condition, we will refund you the rest of 30%.
Exclusions
The warranty obligations do not cover physical damage sustained from improper handling during shipping as p-4 rounded-lg bg-light border as normal wear and tear in use of Product. The warranty shall be voided if alleged Product failure was caused in whole or part by: (i) unauthorized modifications, alterations or repair; (ii) parts or Consumables were installed and used that were not certified or approved by CreatBot or its designated representative, including without limitation the use of filament not from CreatBot; (iii) unusual physical or electrical stress; (iv) abuse, misuse, accident, neglect; (v) exposure to moisture, flooding, fire, electrical problems associated with incoming power or other acts not the fault of CreatBot; (vi) not adhering to CreatBot’s recommended maintenance procedures or failure to comply with Product instructions and/or documentation; (vii) to the extent allowed by applicable law, the Product has been removed from the country or region where it was originally sold by CreatBot or its designated representative. No coverage under the Warranty will exist if CreatBot was not notified of the alleged defect or malfunction prior to the expiration of the Warranty Period. CreatBot shall make the final determination as to the existence and cause of any alleged defect.
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
