| Item Model Number |
S22-116 |
| Capacity |
2,200 lbs. @ 24" load center |
| Power |
24-volt DV |
| Max Lift Height |
116" |
| Collapsed Height |
2" |
| Turning Radius |
54.5" |
| Travel Speed |
3.1 mph (empty), 2.5 mph (loaded) |
| Battery Type |
(2) 12V 85AH Maintenance-free Batteries |
| Charger |
110V Smart Charger |
| Battery Capacity |
85AH |
| Tires/Wheels |
Drive: 8.3" x 2.8" Polyurethane |
| Stability Casters: 4" x 2" Polyurethane |
|
| Tandem Load: (2) 4" x 2" Polyurethane |
|
| Brakes |
Electro-magnetic Disc Brake |
| Overall Fork Dimensions |
42" x 29.5" |
| Individual Fork Dimensions |
42" x 4" x 1.5" |
| Fork Outer Diameter Adjustments |
8" to 29.5" |
| Straddle Leg Inside Dimension |
38" to 50" (in 4" increments) |
| Vehicle Dimensions |
65.5" x 44"-56" x 82.5" |
| Weight (with Battery & Charger) |
1500 lbs. |
| Package Contents |

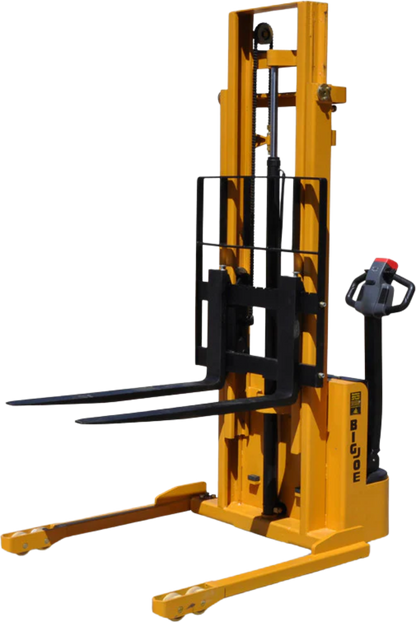

Big Joe S22-116 Walkie Straddle Stacker |
| User Manual |
|
What Our Experts Think
-
2200 lbs Capacity – Heavy-duty capacity for handling substantial loads with ease and efficiency.
-
116" Max Lift Height – Ideal for accessing higher shelving and stacking needs, providing versatility in material handling.
-
Walkie Operation – Offers smooth, easy maneuvering and control, even in narrow aisles and tight spaces.
-
Durable Build – Constructed with robust materials for long-lasting performance, even in challenging environments.
-
New Condition – Fully ready for immediate use, ensuring top-notch performance and reliability from the start.
Q&A
Q: What is the maximum weight capacity of the Big Joe Walkie Straddle Stacker?
A: The stacker has a maximum weight capacity of 2200 lbs, perfect for lifting and transporting heavy loads.
Q: What is the maximum lift height of this stacker?
A: This model offers an impressive 116-inch maximum lift height, ideal for high stacking and reaching elevated storage areas.
Q: Is it suitable for narrow aisles?
A: Yes, the Walkie Straddle Stacker is designed for narrow aisle operations, offering excellent maneuverability in confined spaces.
Q: What type of power does this stacker use?
A: The stacker is powered by electric operation, making it efficient and convenient for long-term use.
Q: Is the stacker easy to operate?
A: Yes, it features simple controls that make it easy for operators to lift, lower, and move heavy loads with precision.
Q: What is the construction material of the stacker?
A: The stacker is made from high-quality steel, ensuring durability and long-lasting performance in industrial environments.
Q: Is this stacker new?
A: Yes, this is a brand new model, featuring the latest technology for reliable and efficient performance.
Maintenance Tips
-
Battery Care – Regularly check the battery charge and terminals for corrosion. Clean the terminals and ensure secure connections for efficient operation.
-
Hydraulic System Maintenance – Inspect the hydraulic system for leaks or damage. Top up the hydraulic fluid as needed and ensure smooth lift and lowering actions.
-
Wheels and Rollers – Check the wheels for wear, cleaning them periodically and applying lubricant for smooth movement. Replace worn wheels to maintain performance.
-
Frame and Lift Inspection – Examine the frame and lift components for any signs of damage or wear. Tighten bolts and address any issues to maintain safety and functionality.
-
Regular Cleaning – Keep the stacker clean by wiping it down with a mild detergent and water, avoiding harsh chemicals that could harm the surface.
-
Safety Check – Perform routine safety checks on the braking system, lifting mechanism, and controls to ensure everything is in proper working order before use.
