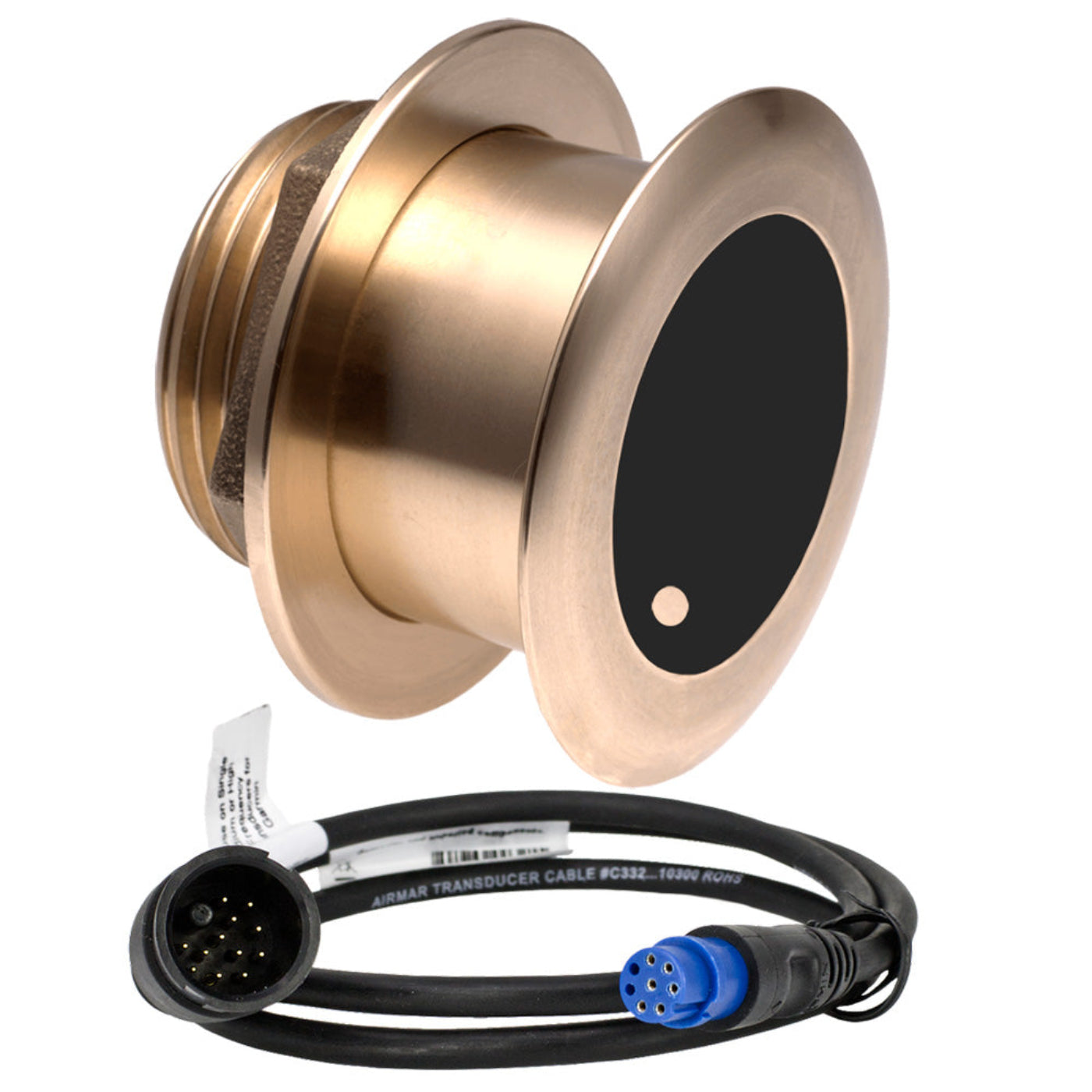

Airmar B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer f/8-Pin Garmin - B175C-20-MW-8G
Airmar’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.
Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.
The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.
Features
-
Fixed 20° tilted version for 16° to 24° hull deadrise
-
8 Pin Connector for Garmin FishFinders
-
Depth and fast-response water-temperature sensor
-
1 kW with depth tracking down to 400 m (1,300#39;)
-
Medium frequency: 60-100 kHz
-
57° to 73° beamwidth (port/starboard)
-
16° average fore/aft
-
40 kHz of total bandwidth from one transducer
Specifications
| Acoustic Window | Urethane |
|---|---|
| Common Use | Fishing |
| Connector | Garmin 12-Pin |
| Country of Origin | USA |
| Display Connector | 12G |
| Hole Size | Temperature |
| Hull Material | 95 mm (3-3/4") |
| Material | Fiberglass or wood |
| Max Depth | Bronze |
| Power Rating | 24° |
| Tilt Angle | 400 m (1300') |
| Tilted Element | 60-100 kHz |
| Weight | 2.7 kg (6 lbs.) |
What Our Experts Think
- High-Performance CHIRP Technology: The Airmar B175MW delivers clear, detailed imaging with its 20° ultra-wide beam, perfect for deeper water sonar.
- Optimal for Garmin Users: Specifically designed for Garmin’s 8-pin connectors, ensuring seamless integration and superior performance.
- Reliable 1kW Power: Offers powerful 1kW output, ideal for accurate depth and structure readings at various depths.
- Durable Bronze Construction: Crafted from corrosion-resistant bronze, it ensures long-lasting reliability even in harsh marine environments.
- Efficient for Offshore and Coastal Use: The medium-frequency range excels in both offshore and coastal fishing, providing excellent target separation and coverage.
Q&A
Q: What makes the Airmar B175MW unique?
A: The B175MW features a 20° ultra-wide beam and 1kW power, offering superior sonar imaging for deeper waters, specifically designed for Garmin 8-pin systems.
Q: Is this transducer compatible with all Garmin devices?
A: The B175MW is compatible with Garmin units that use an 8-pin connection.
Q: What type of materials is the B175MW made from?
A: It is constructed from durable, corrosion-resistant bronze, ensuring long-lasting performance in harsh marine environments.
Q: What fishing environments is the B175MW best suited for?
A: It’s ideal for both offshore and coastal fishing, delivering clear sonar returns for precise depth and target separation.
Q: How deep can the B175MW transducer perform effectively?
A: With its 1kW power, it provides reliable sonar performance at various depths, making it perfect for both shallow and deep water fishing.
Maintenance Tips
- Regular Cleaning: Clean the transducer regularly using fresh water to remove dirt and debris. Use a soft cloth to avoid scratching the surface.
- Inspect for Damage: Periodically check the transducer for any visible cracks or wear. Address any issues immediately to prevent further damage.
- Avoid Antifouling Paint: Do not apply antifouling paint to the transducer, as it can interfere with performance.
- Check Cable Connections: Ensure that the cable is securely connected and free from corrosion. Clean connectors regularly to maintain signal quality.
- Seasonal Maintenance: Before storing your vessel for extended periods, remove the transducer and clean it thoroughly to prevent build-up and damage.
