Afinia EinScan HX 3D Scanner - 38546

Name: Afinia EinScan HX 3D Scanner - 38546
Brand: Afinia
SKU: 38546
Price: 9399.99 USD
Availability: InStock

FREE SHIPPING Save 6%

Afinia

Price:

$9,399.99 $9,999.00

Quantity:

CLEARANCE SALE.
ITEMS LEFT.
PEOPLE are also watching that product.

Description
Features
Specifications
Delivery

Description

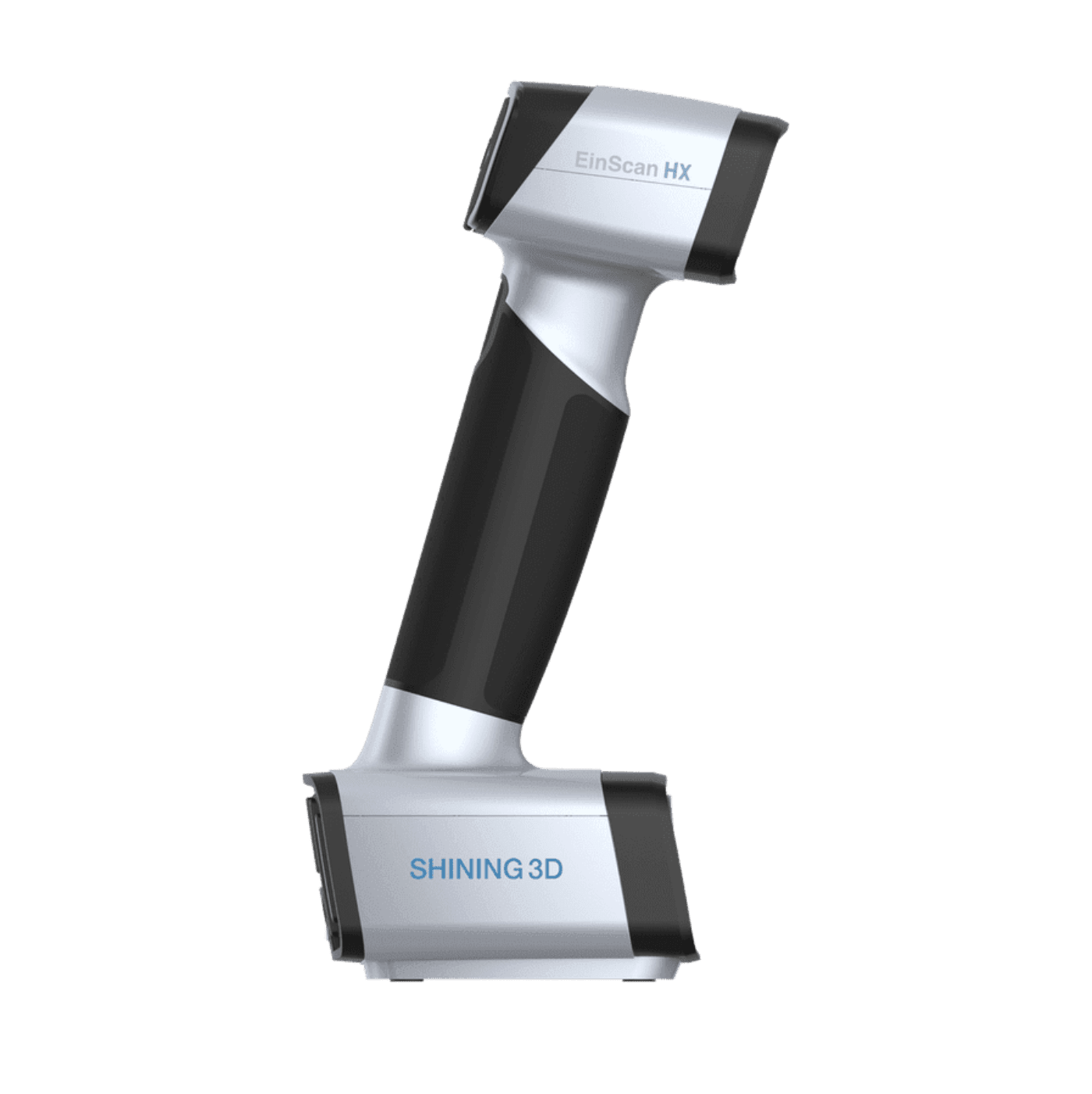

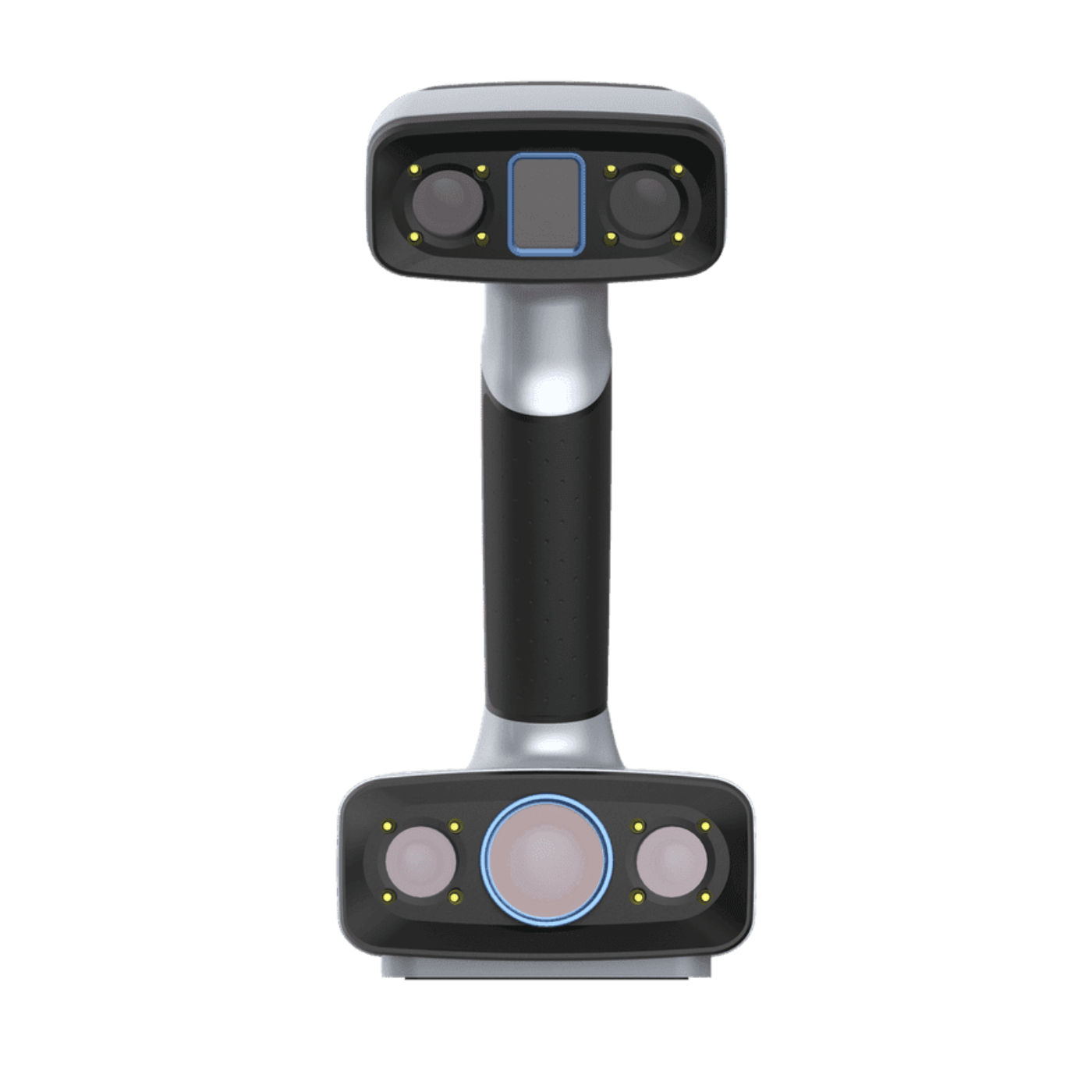

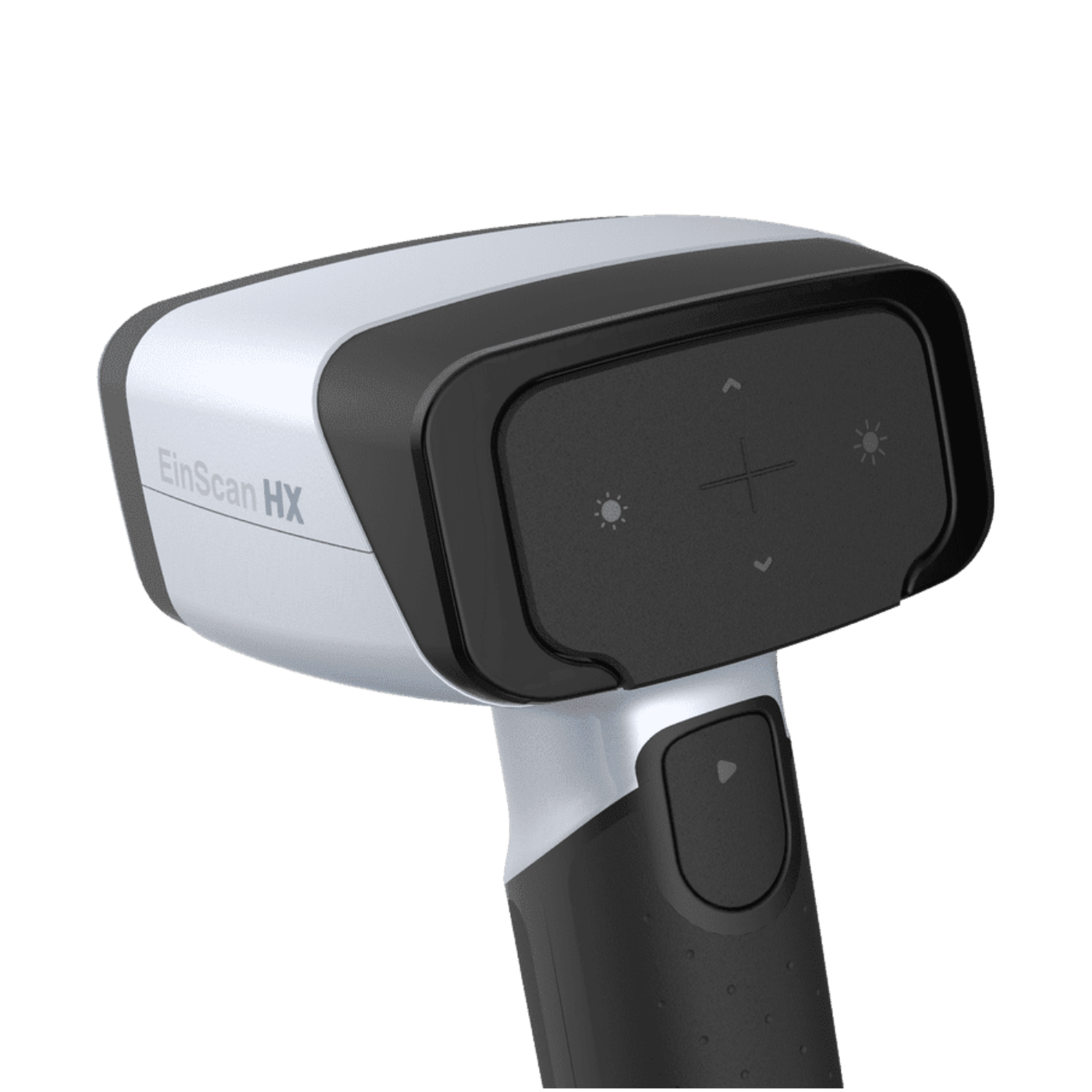

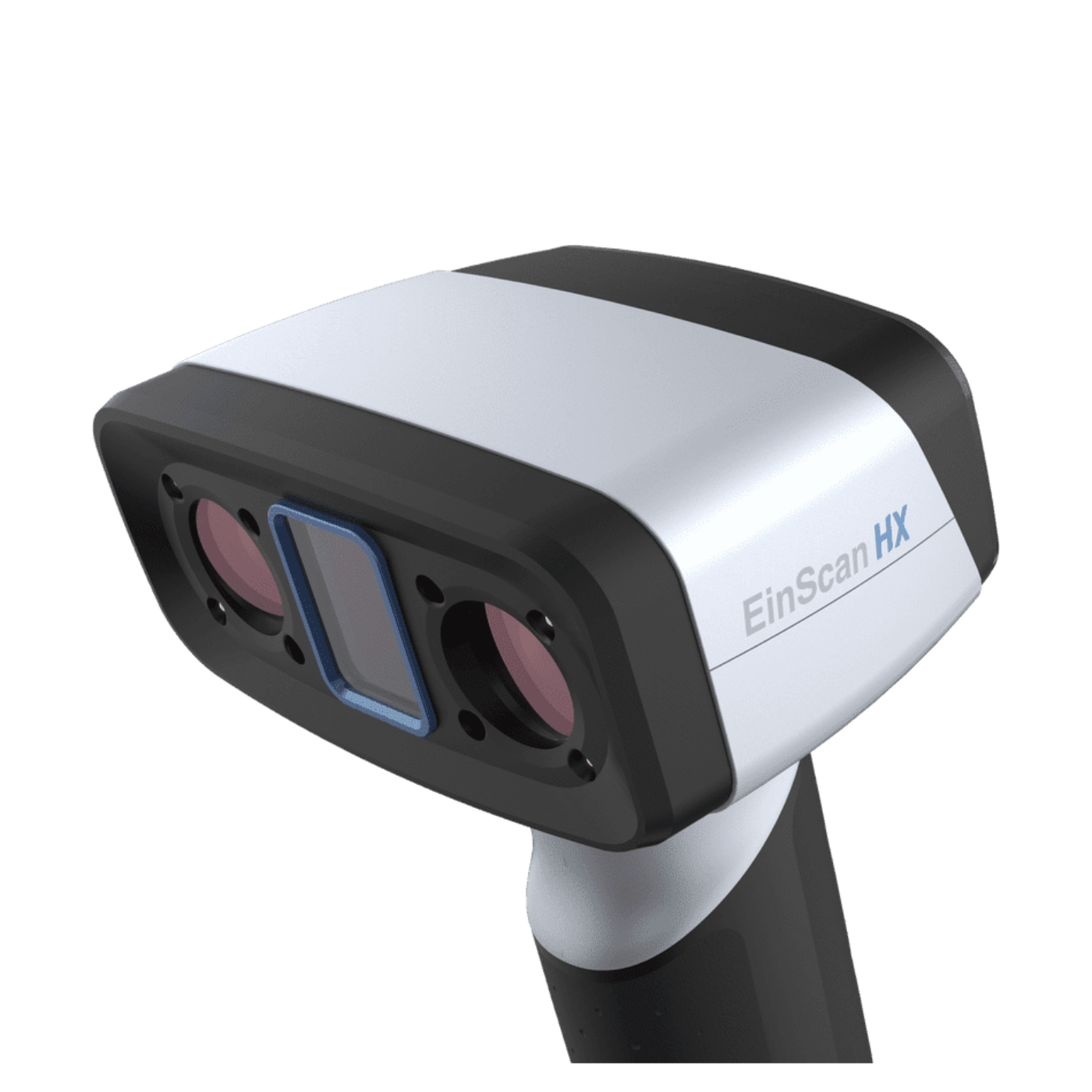

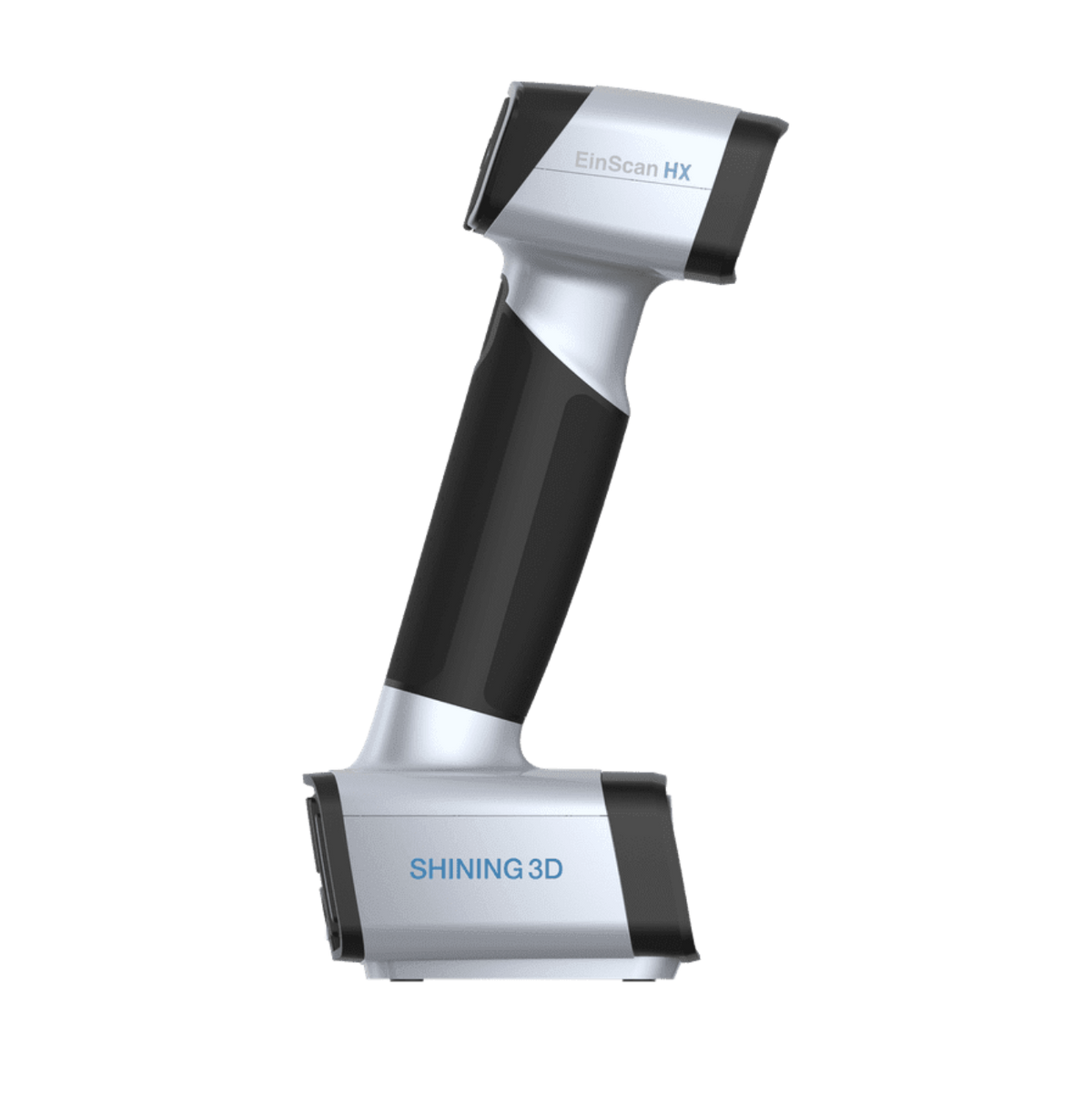

Afinia EinScan HX 3D Scanner - 38546

With strengths of technical accumulation on HX 3D vision technology in more than a decade, SHINING HX 3D is now introducing its new developed handheld 3D scanner, EinScan H. Based on hybrid structure light technology of LED and invisible infrared light, EinScan H is making human face scanning more comfortable without strong light. With a built-in color camera and large field of view, EinScan H provides high quality 3D data with full color ready-to-use in minutes.

Hybrid structure light source technology integrating LED structured light and invisible infrared light into one device and adding advanced smart presetting in different scan modes allows 3D scanning in a broad range of applications and promotes the popularization of portable 3D scanning technology.

Features

Hybrid Light Source: Utilize both LED and invisible infrared light for versatile scanning of diverse objects.
Safe Face Scanning: Enjoy a comfortable scanning experience with invisible infrared light.
Impressive High Resolution: Capture intricate details with a minimum point distance of 0.25mm.
Exceptional Accuracy: Achieve high-precision scans with accuracy up to 0.05mm.

Specifications

Scan Mode	Rapid Scan	Laser Scan
Scan Accuracy	Up to 0.05mm	Up to 0.04mm
Volumetric Accuracy*	0.05+0.1mm/m	0.04+0.06mm/m
Scan Speed	1,200,000 points/s, 20FPS	480,000 points/s, 55FPS
Camera Frame Rate	55FPS	55FPS
Align Mode	Feature Alignment, Markers Alignment, Texture Alignment, Hybrid Alignment	Markers Alignment
Working Distance	470mm	470mm
Depth of Field	200mm-700mm	350mm-610mm
Max FOV	420mm*440mm	380mm*400mm
Point Distance	0.25mm-3mm	0.05mm-3mm
Light Source	Blue LED	7 Blue Laser Crosses
Safety	Eye-safe	Class I(Eye-safe)
Built-in Color Camera	Yes
Texture Scan	Yes	No
Connection Standard	USB3.0
Output Formats	OBJ, STL, ASC, PLY, P3, 3MF
Dimensions	108mm x 110mm x 237mm
Weight	710g
Certifications	CE, FCC, ROHS, WEEE, KC
Recommended Configuration	Operating System: Windows 10, 64 bit Graphics card: NVIDIA GTX1080 or higher Video memory: ≥4GB Processor: Intel I7-8700 or higher Memory: ≥32GB
