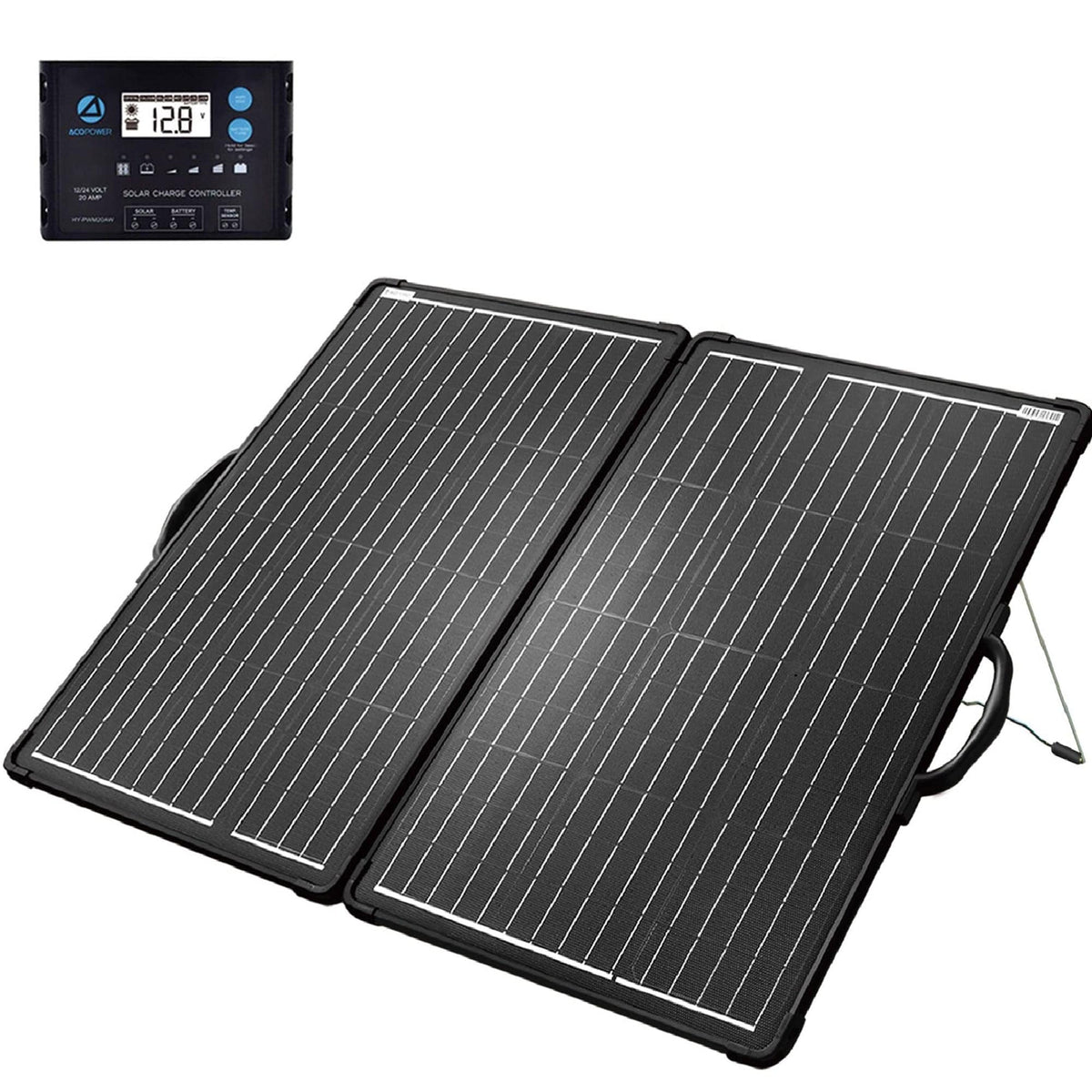

ACOPOWER Plk 200W Portable Solar Panel Kit - HY-PLK-200W20A

Save 10%

Price:
Sale price$449.99 Regular price$499.00

Description

The ACOPOWER 200W Monocrystalline Lightweight Portable Solar Panel Kit Is Lightweight, Portable And Comes With A Pre-Installed Charge Controller!

The included charge controller protects battery against unsafe electrical conditions and must be used to charge 12V batteries. To charge solar generators with a built-in charge controller, simply use the MC4 cables provided and plug them into the cables that came with your power station to charge. A 12V battery and solar generator can be charged at the same time. Has a built in kickstand for easy set up and when stored, folds up to protect it from damage.

Light and portable: weighs 20.9lbs and has a folded size of 31.5 x 27 x 2 inches. Ideal output: 960 Watt hours per day (depends on sunlight availability)
8 Battery Type Compatible -Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium.

Easy Set-up: pre-installed stand allows for easy and quick set-up. MC-4 connectors or Anderson plug allow easy installation to RV / camper / trailer battery unit. For pre-wired RV or camper, please contact ACOPOWER for adapters Furrion and SAE Zamp solar

Compact design: small size and large capacity, suitable for charging large-capacity solar generators and RV batteries

ACOPOWER 200W FOLDABLE SOLAR PANEL
Module Type: 2×100W Maximum Power: 200W
Open-Circuit Voltage (Voc): 23.4V Maximum Operating Voltage (Vmp): 19.8V
Short-Circuit Current (Isc): 11.56A Maximum Operating Current (Imp): 10.1A
Folded size: 31.5x27x2 in / 800×685×50mm
Weight: 20.9 lbs / 9.5kg
20A SOLAR CHARGE CONTROLLER
Nominal Voltage: 12V/24V DC Rated Charge Current: 20A
Max. PV Input Voltage: 50V Grounding: Common Negative
Battery Start Charging Voltage: 3V Temperature Compensation Coefficient: -24mV/°C
Operating Temperature: -40°F to 140°F Storage Temperature: -40°F to 185°F
Terminals: Up to 10 AWG Enclosure: IP65
Dimensions: 5.59x 3.7x 1.06 inches Weight: 1.1 lbs
WARRANTY INFORMATION
Panels: The solar panel itself comes with an 18-months workmanship warranty and a 25-year 85% output warranty.
Accessories: 1-year material warranty



200W Portable Solar Panel

  • Compact Design and portable: weighs 20.9lbs and has a folded size of 31.5 x 27 x 2 inches.

  • Ideal output: 960 Watt hours per day (depends on sunlight availability)

  • Monocrystalline panel for maximum charge output.

  • Waterproof, compact and lightweight.

  • Pre-installed stand allows for easy and quick set-up. MC-4 connectors or Anderson plug allow easy installation to RV / camper / trailer battery unit. For pre-wired RV's or campers.

  • Compatible with 8 different types of batteries - Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium.

20A LCD Charge Controller

  • Waterproof design, suitable for indoor, outdoor, camping, boats, and RV use.

  • 20 amps 12V/24V auto continuous charging capacity, enables use of up to 12V/360watts and 24V/720watts.

  • Negative Ground Design

  • Large LCD display - Shows volts, amps, amp hours and battery presets.

  • 1 x 200W Portable Solar Panel

  • 1 x 20A LCD Charge Controller

  • 1 x User Manual


Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
