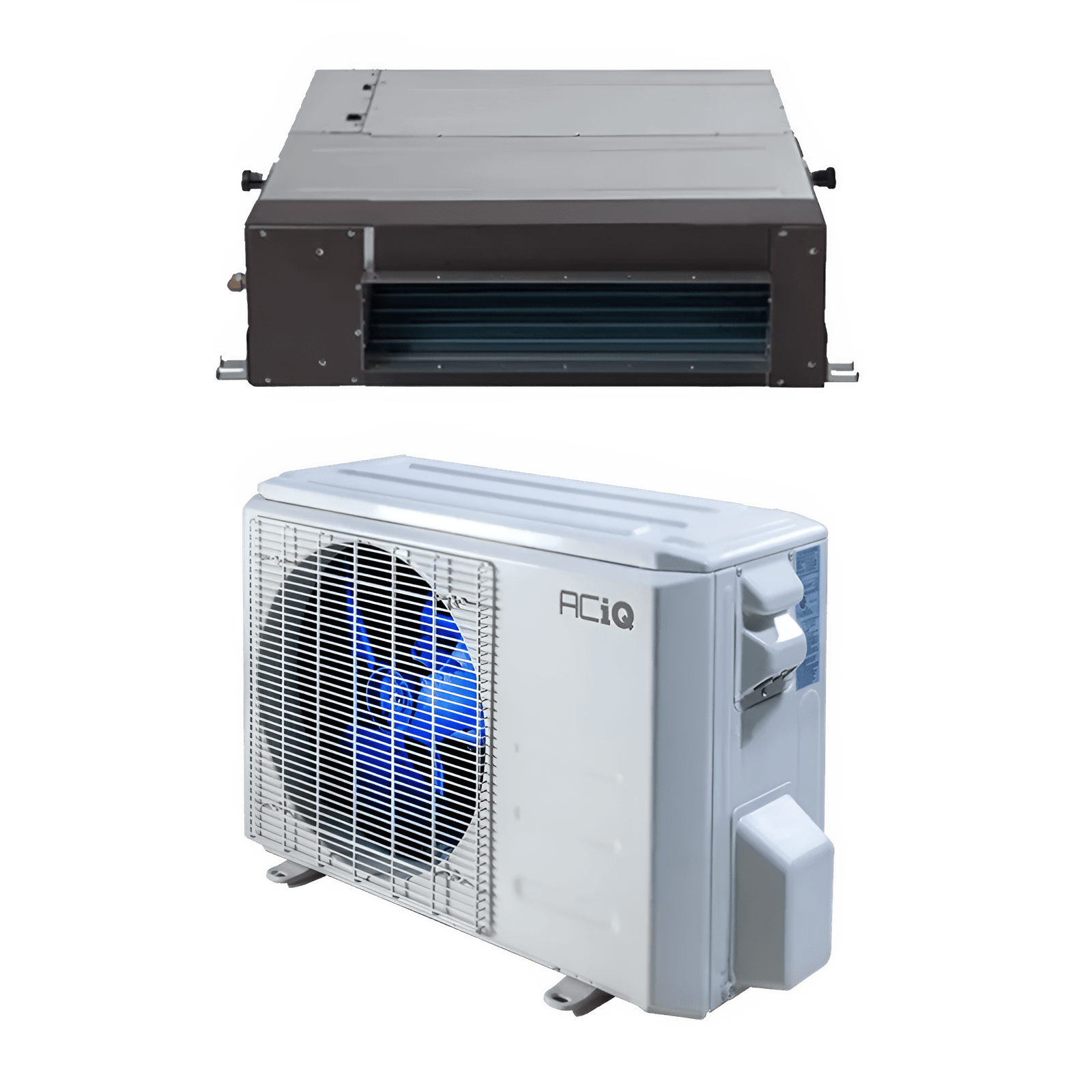

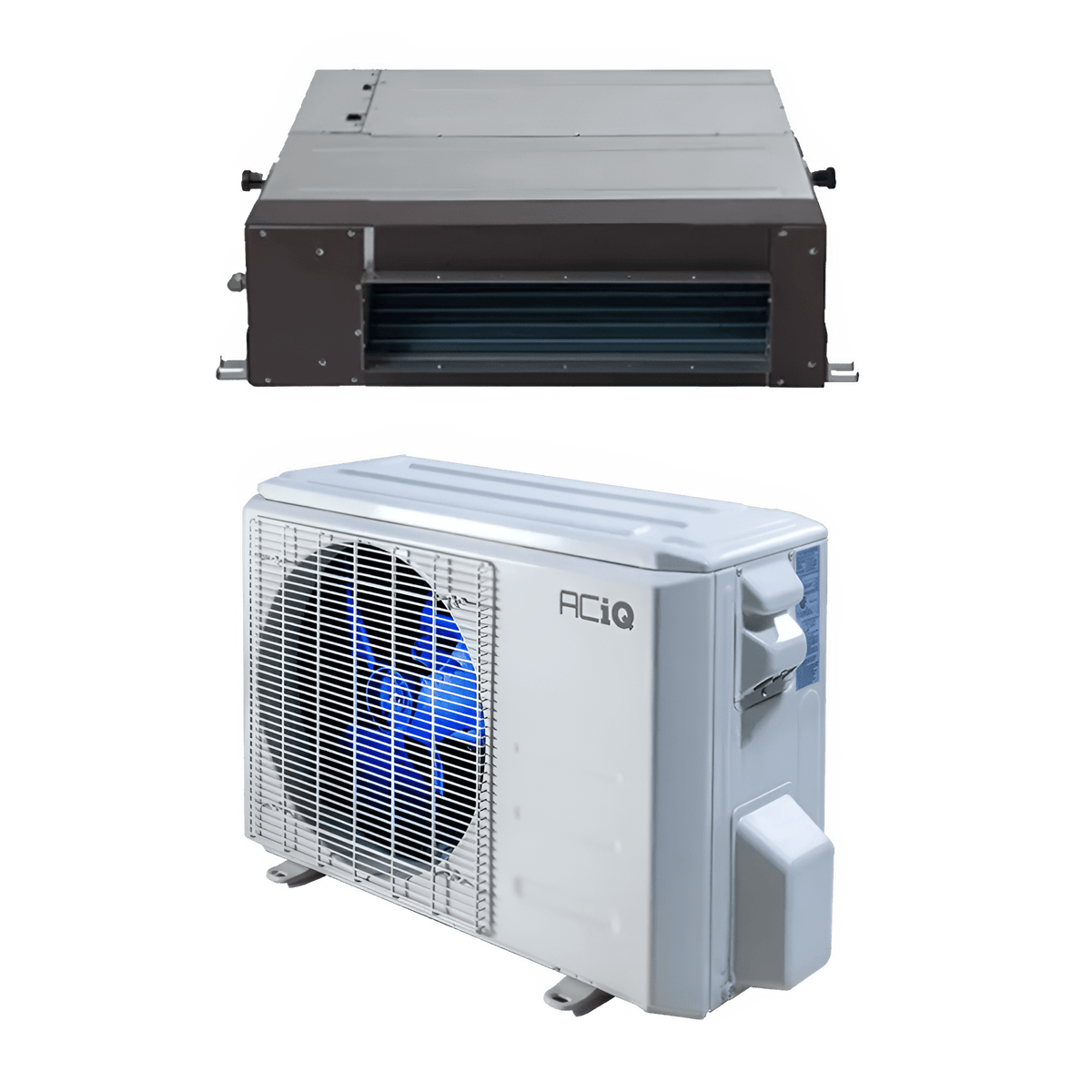

9,000 BTU 19 SEER ACiQ Platinum Single Zone Concealed Duct Mini Split System w/ Max Heat

ACiQ mini split systems offer intelligent technology and exceptional comfort, all at an affordable price. Single zone options are ideal for basement or garage conversions, as well as other single areas in your home that require extra cooling or heating.

  • Intelligent comfort at an affordable cost
  • Ideal for up to a small room (depending on climate)
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating
  • Quiet operation at even the highest workloads
  • Included Smart Remote
  • WiFi compatibility through free app, Amazon Alexa or Google Assistant

Model

ACIQ-09ZPL-HP230B / ACIQ-09CD-HH-MB

SEER

19

Cooling BTU

9,000

Heating BTU

9,000

Electrical

208/230V 1 Phase 60 Hz

Liquid Line

1/4'

Suction Line

3/8'

Communicating Capability

Enabled with Wi-Fi® capability

Compressor Type

Rotary

Warranty

12-Year Compressor / 7-Year Parts with Registration

  • High Efficiency: The 9,000 BTU 19 SEER ACiQ Platinum offers exceptional energy efficiency, keeping energy costs low while maintaining powerful performance.
  • Max Heat Technology: With Max Heat, it provides reliable warmth even in colder conditions, perfect for year-round comfort.

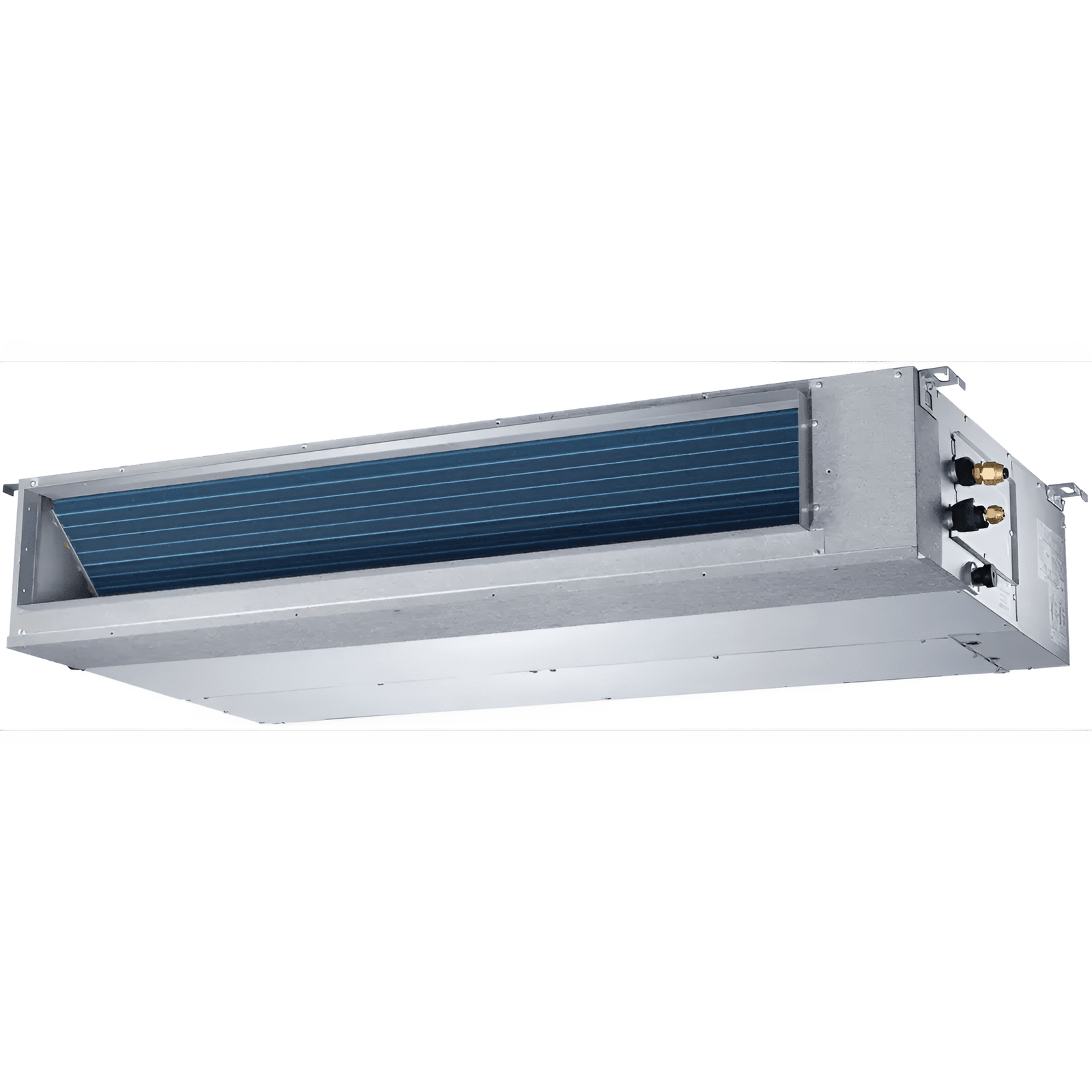

  • Discreet Installation: The concealed duct design is ideal for those seeking a hidden, space-saving solution while still delivering effective cooling and heating.
  • Quiet Operation: Designed to run quietly, it creates a peaceful environment without compromising comfort.
  • Ideal for Zoned Comfort: Perfect for smaller rooms or spaces that need dedicated heating and cooling control.

Q: What is the cooling and heating capacity?
A: It provides 9,000 BTUs of both cooling and heating, ideal for small rooms or zones.

Q: Is it energy-efficient?
A: Yes, with a 19 SEER rating, it ensures low energy consumption while maintaining optimal performance.

Q: Can it handle cold temperatures?
A: Yes, Max Heat technology ensures reliable heating even in colder climates.

Q: How quiet is this unit?
A: The concealed duct design operates quietly, providing comfort without noise disturbance.

Q: Is this system easy to install?
A: Yes, the concealed duct design offers discreet installation, perfect for space-saving needs

  • Clean Filters Regularly: Check and clean filters every 1-2 months to ensure optimal airflow and efficiency.
  • Inspect Ductwork: Clean ducts and ensure no blockages to maintain proper air circulation.
  • Clean Coils: Inspect and clean evaporator and condenser coils annually for maximum performance.
  • Check Refrigerant Levels: Ensure refrigerant levels are balanced for efficient cooling and heating.
  • Clear Condensate Drain: Regularly check and clear the condensate drain to prevent water damage and clogs.
  • Annual Professional Service: Schedule a yearly inspection by a professional to extend the system’s lifespan.
