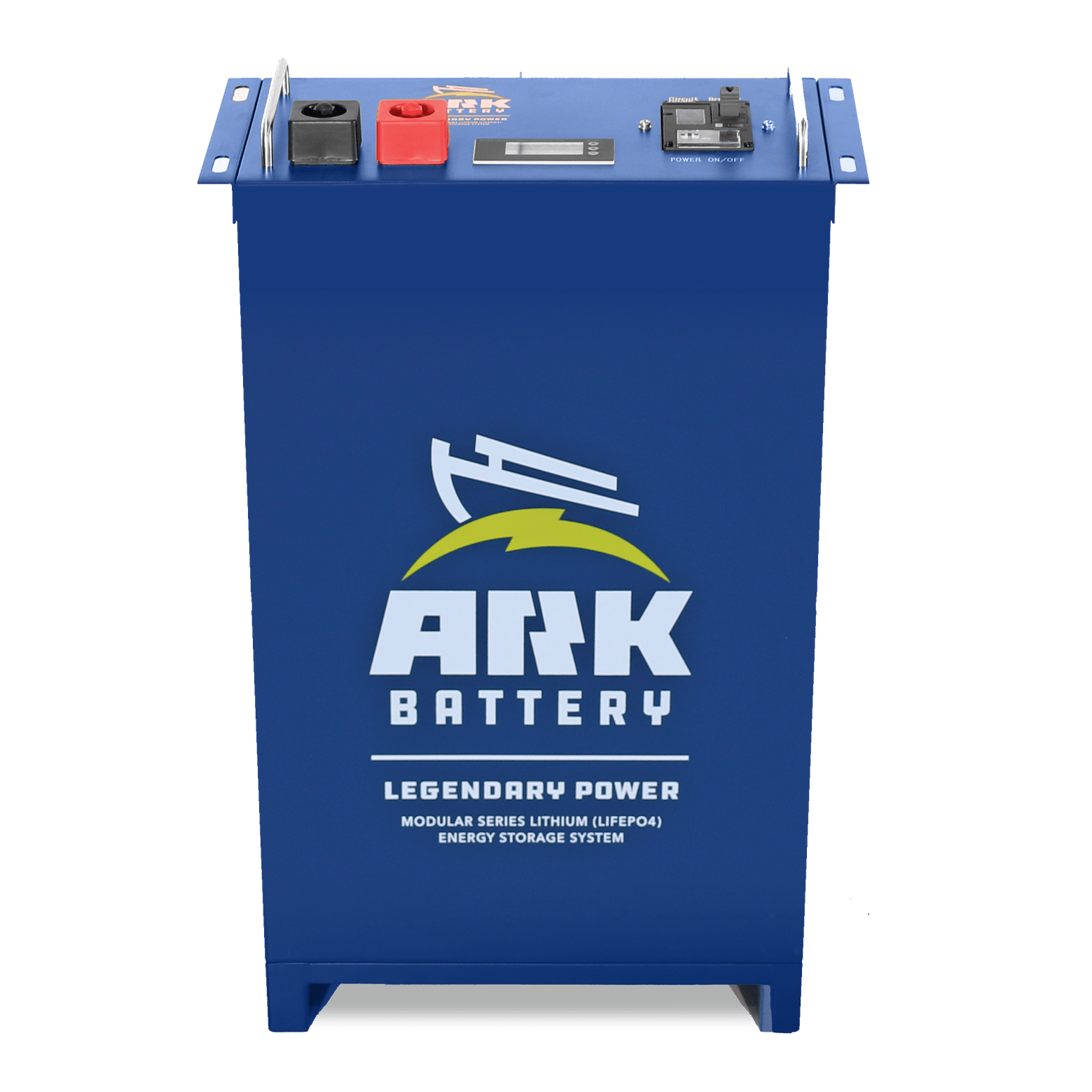

Ark Lithium Battery – ARK256200, 25.6 Volts, 200AH, LiFe PO4 Battery - ARK256200
80
Peoples are also watching.
Brand:
Ark Battery
SKU:
ARK256200
- $2,158.99
$2,538.99- $2,158.99
- Unit price
- per
authorized dealer, shop your favorite brand.
Expert Support,
Dial (888) 851-3898
Limited Supply,
grab it before it's gone.
Lowest prices,
As low as possible.
All Item are brand New,
Never used.
Popular Add-Ons
Add-Ons Bundle
$200.00
$70.00
$100.00
$30.00
Bundle Offer
$300.00
$100.00
Recently Viewed Products
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 3300 lbs Cap. 177"Lifting A-3029
Experience unparalleled efficiency and precision with our Apollolift Powered Forklift Full Electric Walkie Stacker. This cutting-edge material handling solution boasts a 1,200-watt drive motor and a robust 2,200-watt lift motor, ensuring smooth and effortless cargo movement. Equipped with an advanced AC control system and...
- $10,200.99
$12,000.00- $10,200.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 3300 lbs Cap. 220"Lifting A-3030
Meet the Apollolift Powered Forklift Full Electric Walkie Stacker, your ultimate material handling solution. With a potent 1,200-watt drive motor and a robust 2,200-watt lift motor, it effortlessly handles hefty loads. The advanced AC control system, coupled with stepless speed control, ensures precise navigation...
- $11,050.99
$13,000.00- $11,050.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs. 98" lifting A-3022
Introducing our Apollolift Powered Forklift Full Electric Walkie Stacker, a game-changer for your material handling needs. With a robust 650-watt drive motor and a powerful 2,200-watt lift motor, this pallet jack delivers exceptional strength and precision. It boasts adjustable forks that accommodate a...
- $5,950.99
$7,000.00- $5,950.99
- Unit price
- per
Manual Push And Pull, Powered Lifting And Lowering Special chain steering system. Integrate panel design. Foot pedal brake for safety and ramp usage. Adjustable forks and straddle legs. DIMENSIONS: Overall Length: 72.2" Overall Width: 44½"-60.3" Recommended Aisle Width: 92.4" Turning Radius:59.3" Mast Height Lowered:...
- $3,995.99
$4,700.00- $3,995.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs.98" lifting A-3038
The Best Choice For Narrow Site! 650-watt drive motor, 2,200-watt lift motor. Forks are adjustable to fit most pallets. Curtis (US Brand) Controller. Use GEL battery free to maintain. Both sides of button for lifting and lowering operation. Multi-function display shows the working...
- $5,700.00
$5,700.00- $5,700.00
- Unit price
- per
MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING 1,500-watt lift motor. Special chain steering system. Easy operation for lifting and lowering. Strong battery with 12V/120AH capacity and over charge design. Adjustable forks & fix legs. DIMENSIONS: Overall Length：68.7" Overall Width: 37.8'' Recommended Aisle Width：90" Turning...
- $3,485.99
$4,100.00- $3,485.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs. 118" lifting A-3023
THE BEST CHOICE FOR NARROW SITE 650-watt drive motor, 2,200-watt lift motor. Forks are adjustable to fit most pallets. Curtis (US Brand) Controller. Use GEL battery free to maintain. Both sides of button for lifting and lowering operation. Multi-function display shows the working hours,...
- $6,205.99
$7,300.00- $6,205.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs. 118" lifting A-3042
THE BEST CHOICE FOR NARROW SITE 650-watt drive motor, 2,200-watt lift motor. Forks are adjustable to fit most pallets. Curtis (US Brand) Controller. Use GEL battery free to maintain. Both sides of button for lifting and lowering operation. Multi-function display shows the working hours,...
- $6,000.00
$6,000.00- $6,000.00
- Unit price
- per
Ark Lithium Battery – ARK256200, 25.6 Volts, 200AH, LiFe PO4 Battery - ARK256200
Each ARK Battery has a distinct (Impactiv) balancing system to ensure that all cells are charged and discharged equally. This achieves the same result as “equalizing” a lead-acid battery. LiFePO4 batteries may not be capable of external equalization, but it is imperative that each cell maintain the same voltage. A battery that is “imbalanced” will have a lower capacity, a considerably lower cycle life, and annoying BMS shut-offs.
All ARK Batteries employ IMPACTIV balancing, which increases dissipative consumption if a cell reaches an unsafely high voltage and distributes extra power from high-voltage cells to low-voltage cells.
Features
-
Stable Voltage.
-
Maintenance Free.
-
Light Weight.
-
Field Serviceable.
-
Integrated breaker protection.
-
Temperature Protected.
-
BMS Protected.
-

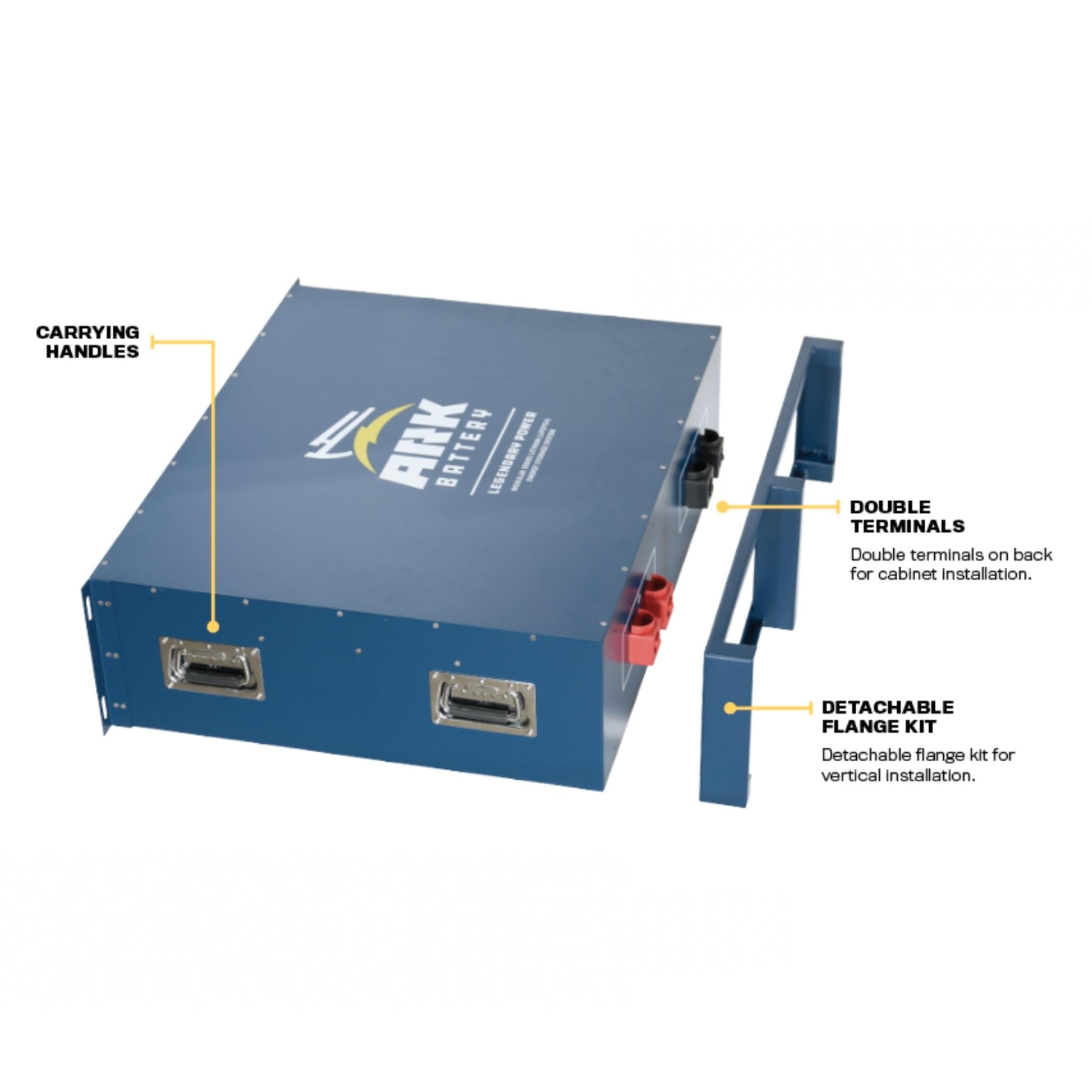

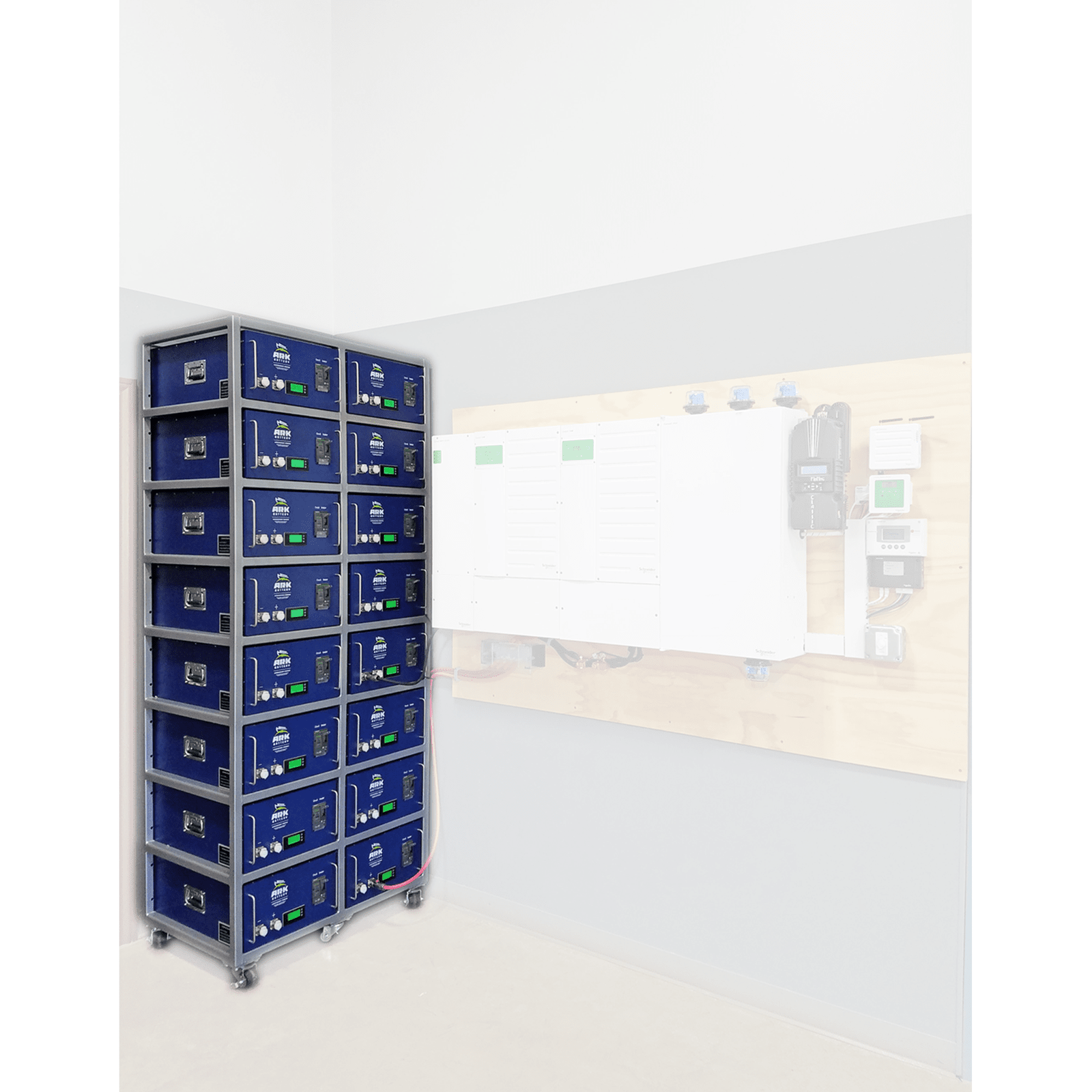

ARK Batteries can be mounted either vertically or horizontally in a rack or cabinet. The device has terminals on the front and back that make it simple to cable either position.
-

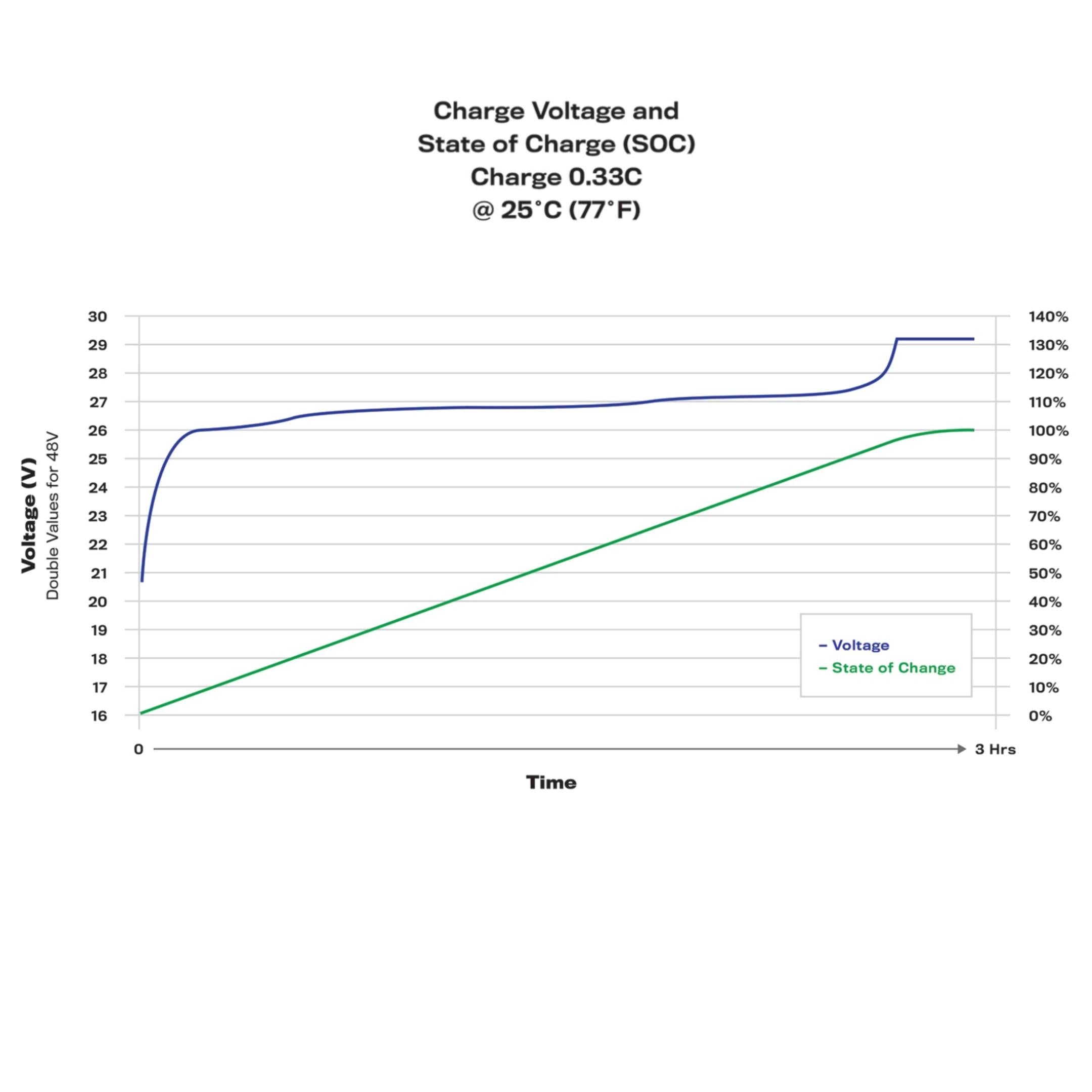

ARK Batteries can be charged in significantly less time than lead acid batteries.
-

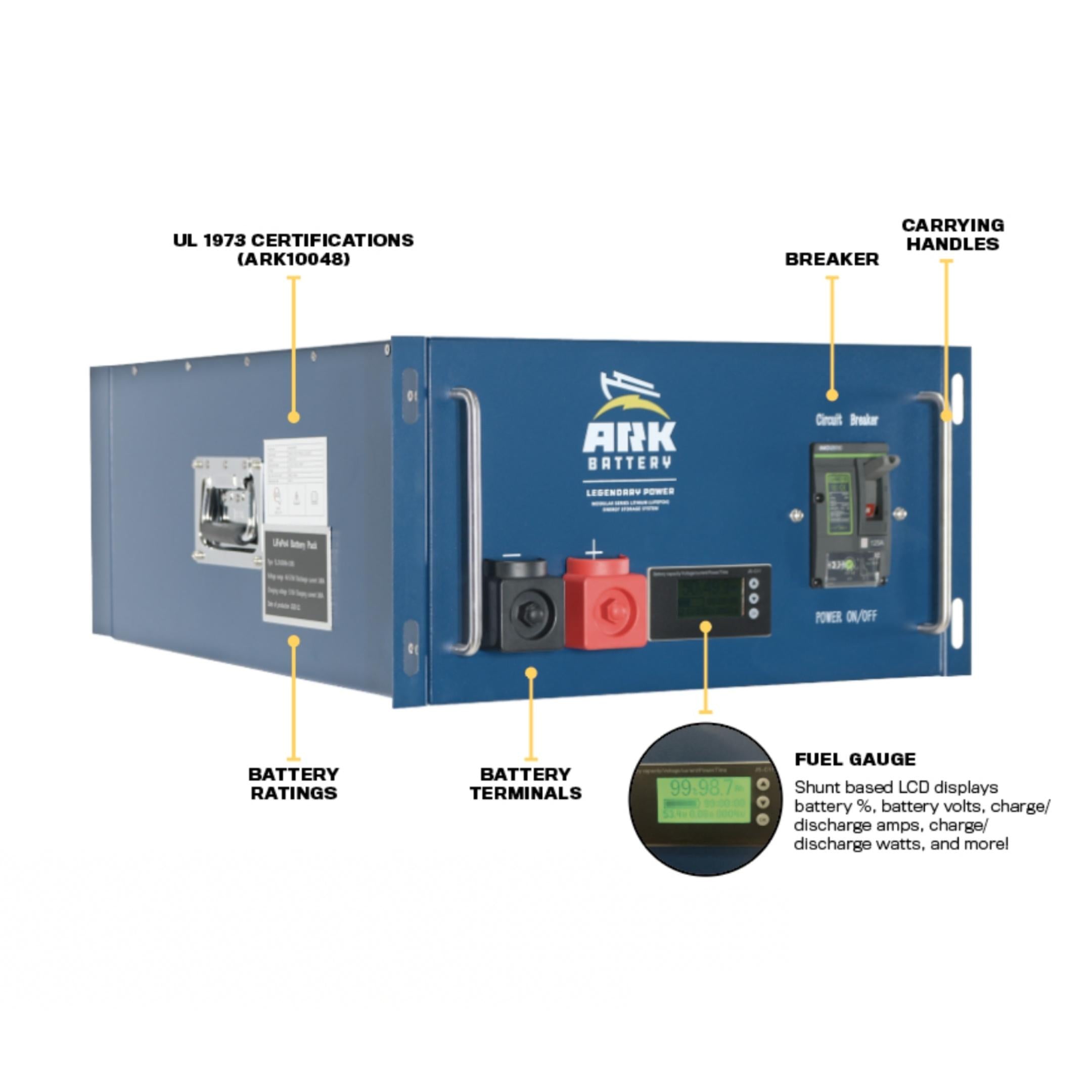

A shunt-based LCD shows the battery percentage, battery voltage, charge/discharge amps, and charge/discharge watts.
Specifications
| Nominal Battery Voltage | 24 Volts |
|---|---|
| Actual Voltage | 25.6 Volts |
| Amp Hours | 200 |
| Max Continuous Charge/Discharge Amps: | 140 |
| Breaker Size (Amps) | 160 |
| Minimum Temperature | 32ºF |
| Maximum Temperature | 115ºF |
| Maximum Charge Volts | 28.8 |
| Cell Chemistry | LiFe PO4 |
| Cell Format | Prismatic |
| Certifications | UL 1642 UN 38.3 |
| Warranty | 10 Year Limited |
| Dimensions | 17″ x 24″ x 33″ |
| Weight | 185 lb. |
Downloads & Manual
What Our Experts Think
- High Power Output: The Ark Lithium Battery ARK256200 offers 200Ah capacity at 25.6V, ideal for systems requiring steady, substantial power.
- LiFePO4 Technology: Features advanced Lithium Iron Phosphate chemistry for enhanced safety, longer lifespan, and excellent thermal stability.

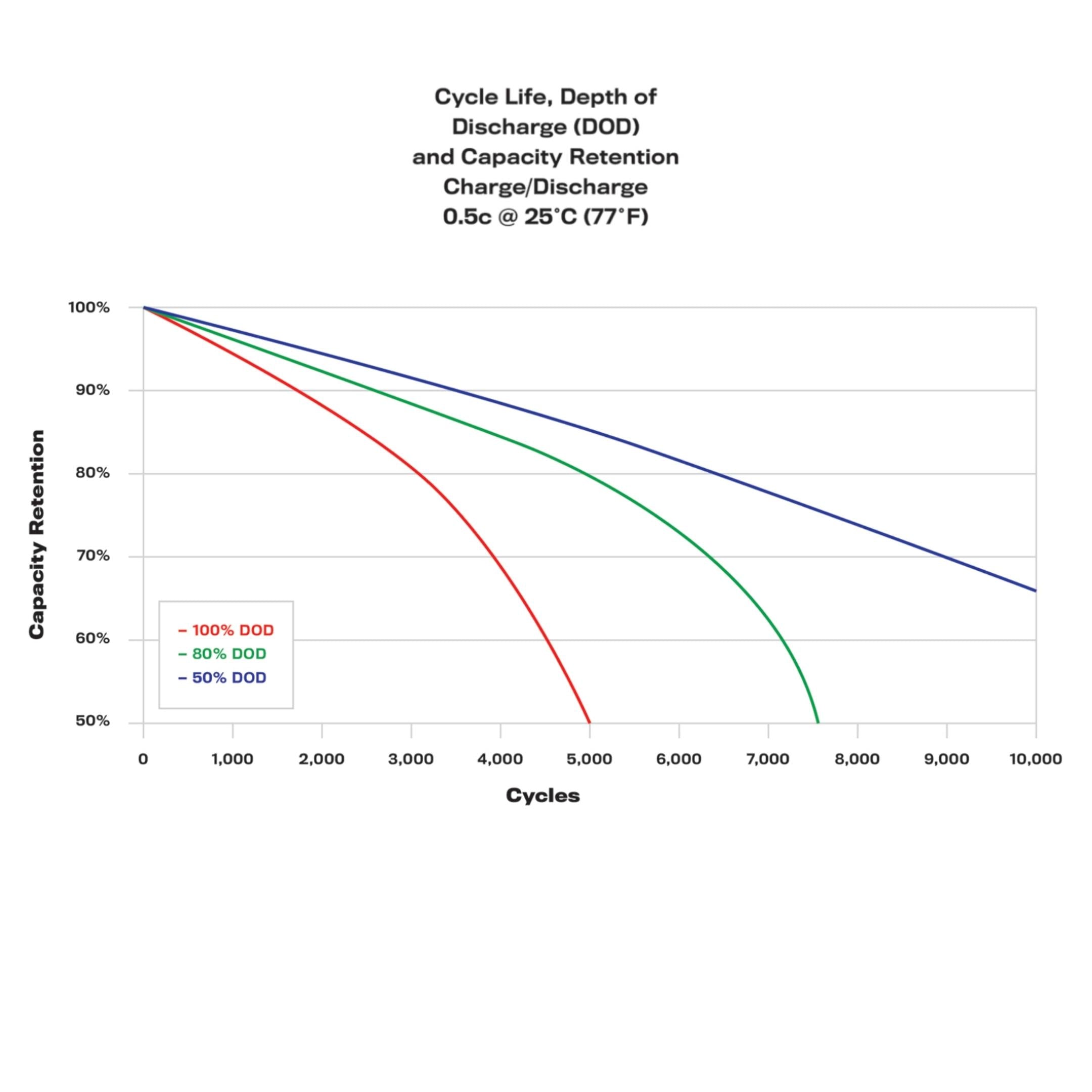

- Extended Cycle Life: Built to last with up to 4,000 charge cycles, reducing the need for frequent replacements and offering great long-term value.
- Rapid Charging: Designed for quick recharging, ensuring your systems stay powered with minimal downtime.
- Smart Battery Management System (BMS): Safeguards against overcharging, overdischarge, and overheating, maximizing performance and longevity.
- Versatile Use: Perfect for solar power setups, RVs, off-grid systems, and other high-demand applications.
Q&A
A: The Ark Lithium Battery ARK256200 is a high-capacity LiFePO4 battery with 25.6 volts and 200AH, designed for reliable, long-lasting power in renewable energy systems, off-grid setups, and other demanding applications.
Q: What are the key features of the ARK256200?
A:
- 200Ah capacity with 25.6 volts for steady and efficient power.
- LiFePO4 technology offering superior efficiency, safety, and a long cycle life (up to 6000 cycles).
- Integrated Battery Management System (BMS) for enhanced safety, including overcharge, over-discharge, and temperature protection.
- Lightweight and compact design, making it easy to install and maintain.
- Suitable for solar energy storage, RVs, backup power, and marine applications.
Q: How does the ARK256200 compare to traditional lead-acid batteries?
A: It is lighter, more energy-efficient, and lasts significantly longer than lead-acid batteries. Additionally, it is safer with a lower risk of issues like thermal runaway.
Q: What applications is the ARK256200 ideal for?
A: Perfect for off-grid solar systems, backup power solutions, recreational vehicles (RVs), marine applications, and other high-power systems.
Q: How long can the ARK256200 last?
A: The battery can last up to 6000 charge cycles with proper care, offering much longer durability than traditional battery options
Maintenance Tips
- Regular Charging: Use a LiFePO4-compatible charger and ensure the voltage stays within the recommended range (25.6V nominal).
- Avoid Deep Discharge: Don't let the battery discharge below 20% to maintain optimal performance and lifespan.
- Check Voltage: Monitor battery voltage periodically to ensure it's within the healthy range.
- Clean Terminals: Keep battery terminals free of corrosion by cleaning them with a terminal brush as needed.
- Store Properly: If unused for long periods, store in a cool, dry place and charge every 3-6 months to avoid deep discharge.
- Optimal Temperature: Use and store the battery in temperatures between 0°C and 45°C (32°F to 113°F) for best performance.
- Inspect for Damage: Regularly check for signs of swelling, leakage, or physical damage, and discontinue use if any issues arise.
