Aims Power 10000 Watt 12V Power Inverter - PWRINV10KW12V

Save 10%

Sale price$1,034.99 Regular price$1,149.00


At Aims Power, We’re Passionate About Designing And Developing Off-grid And Renewable Energy Solutions.

This new 10000-watt 12-volt inverter model has all the capabilities of AIMS Power's 8000-watt 12-volt inverter but offers a higher wattage capacity for bigger power demands. Our 10000-Watt 12VDC to 120VAC Modified Sine Power Inverter can run multiple appliances at once.

It also offers a reliable, powerful solution for operating a piece of equipment that demands a high-wattage capacity, such as an air conditioner or air compressor. These machines use what's called "locked rotor startup" or "locked rotor amperage." LRA generates a surge that only a very powerful inverter can handle.

See Features Below:

  • 10000W max continuous power

  • Modified sine wave with Pulse Width Modulation technology (soft start)

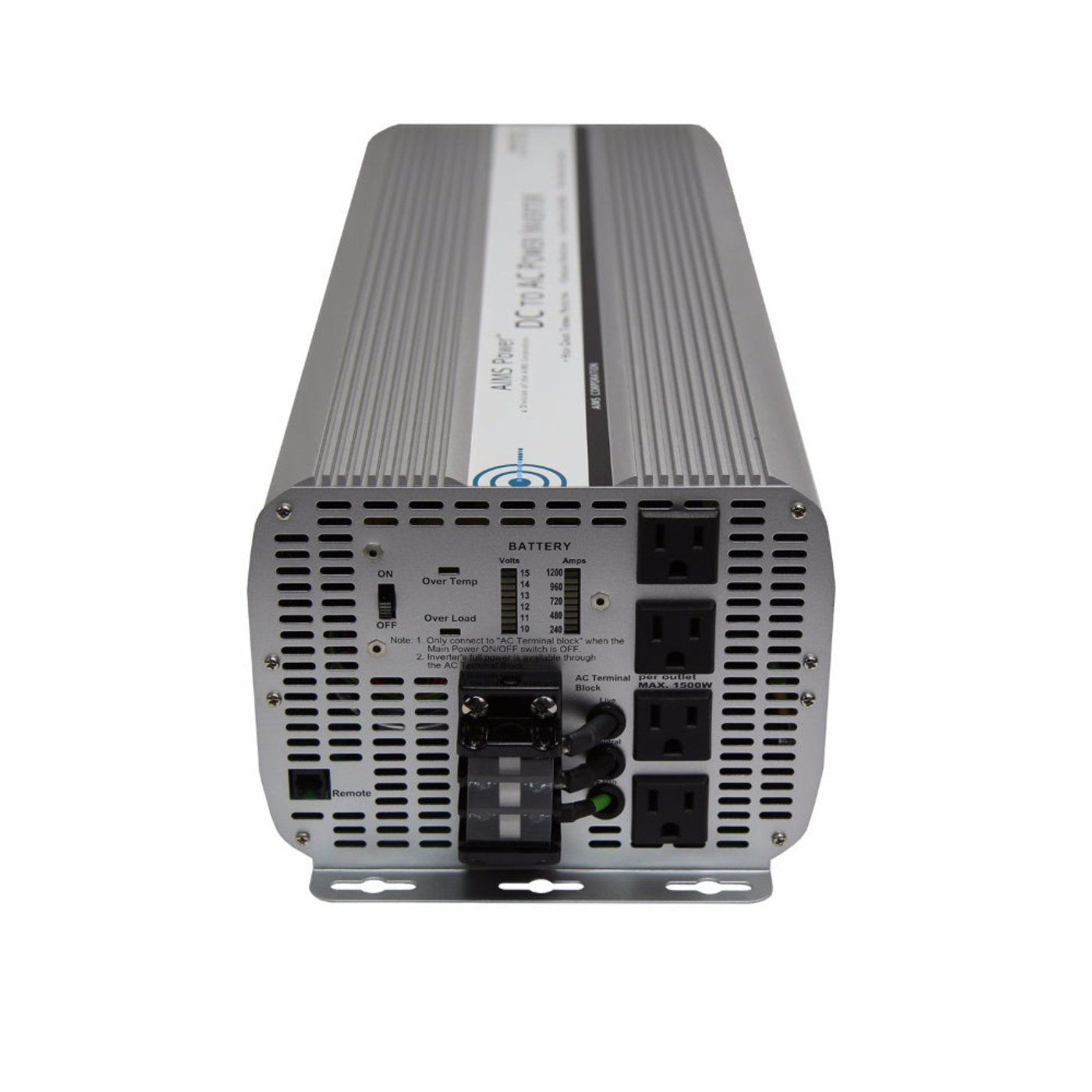

  • Volt meter on front panel to monitor your battery voltage

  • Amp meter on front panel to monitor your current use (rate at which battery is drained)

  • Over Temperature LED indicator

  • Over Load LED indicator

  • AC direct connect terminal block

  • On/off switch

  • Over Temperature protection

  • Over Load protection

  • Single cooling fan thermally controlled

  • Internally fuse protected

  • AC output short circuit protection

  • Auto reset on most fault conditions

  • Aluminum case for optimal cooling

  • Pre-wired for remote on/off switch

  • Pre-slotted mounting plate

  • Instruction manual

  • Free 1 year tech support

  • 1 Year Warranty Parts and Labor

Continuous   output power 10000 Watts
Surge   power capability (peak power) 20000 Watts
dc input /   operating voltage 10 to 16 Volts
Output   voltage 120 Volts ac +/- 10%
Output   wave form modified sine wave with phase correction
Output   frequency 60 Hz +/- 1 Hz
Battery   low voltage alarm 10.5 +/- 0.5 Volts
Battery   low voltage shutdown 10.0 +/- 0.5 Volts
No load   current < 1.8 DC amps
Full load   efficiency 90%
1/3 load   efficiency 95%
No load   minimum operating temperature 30ºF
Full load   maximum operating temperature 140ºF (automatic shutdown)
AC Output   Socket Type quadruple Type 2 -3 prong
High input   voltage protection 15V-17V
Low input   voltage shutdown 10V Internal fuse protection
Product   size (L x W x H) 21 3/8 x 7 7/8 x 6 inches
Weight unit 23.1 lbs. boxed 25 lbs.
UL maximum   recommended per outlet 1500W
This   inverter requires 2 sets of 4/0 AWT cable if you are going to run at 10000   watts.

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
