Abyss Battery 36v 105ah Lithium Trolling Motor Battery - AB-36V105-BT
80
Peoples are also watching.
Brand:
Abyss Battery
SKU:
AB-36V105-BT
- $2,379.99
$2,799.99- $2,379.99
- Unit price
- per
authorized dealer, shop your favorite brand.
Expert Support,
Dial (888) 851-3898
Limited Supply,
grab it before it's gone.
Lowest prices,
As low as possible.
All Item are brand New,
Never used.
Popular Add-Ons
Add-Ons Bundle
$200.00
$70.00
$100.00
$30.00
Bundle Offer
$300.00
$100.00
Recently Viewed Products
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 3300 lbs Cap. 177"Lifting A-3029
Experience unparalleled efficiency and precision with our Apollolift Powered Forklift Full Electric Walkie Stacker. This cutting-edge material handling solution boasts a 1,200-watt drive motor and a robust 2,200-watt lift motor, ensuring smooth and effortless cargo movement. Equipped with an advanced AC control system and...
- $10,200.99
$12,000.00- $10,200.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 3300 lbs Cap. 220"Lifting A-3030
Meet the Apollolift Powered Forklift Full Electric Walkie Stacker, your ultimate material handling solution. With a potent 1,200-watt drive motor and a robust 2,200-watt lift motor, it effortlessly handles hefty loads. The advanced AC control system, coupled with stepless speed control, ensures precise navigation...
- $11,050.99
$13,000.00- $11,050.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs. 98" lifting A-3022
Introducing our Apollolift Powered Forklift Full Electric Walkie Stacker, a game-changer for your material handling needs. With a robust 650-watt drive motor and a powerful 2,200-watt lift motor, this pallet jack delivers exceptional strength and precision. It boasts adjustable forks that accommodate a...
- $5,950.99
$7,000.00- $5,950.99
- Unit price
- per
Manual Push And Pull, Powered Lifting And Lowering Special chain steering system. Integrate panel design. Foot pedal brake for safety and ramp usage. Adjustable forks and straddle legs. DIMENSIONS: Overall Length: 72.2" Overall Width: 44½"-60.3" Recommended Aisle Width: 92.4" Turning Radius:59.3" Mast Height Lowered:...
- $3,995.99
$4,700.00- $3,995.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs.98" lifting A-3038
The Best Choice For Narrow Site! 650-watt drive motor, 2,200-watt lift motor. Forks are adjustable to fit most pallets. Curtis (US Brand) Controller. Use GEL battery free to maintain. Both sides of button for lifting and lowering operation. Multi-function display shows the working...
- $5,700.00
$5,700.00- $5,700.00
- Unit price
- per
MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING 1,500-watt lift motor. Special chain steering system. Easy operation for lifting and lowering. Strong battery with 12V/120AH capacity and over charge design. Adjustable forks & fix legs. DIMENSIONS: Overall Length：68.7" Overall Width: 37.8'' Recommended Aisle Width：90" Turning...
- $3,485.99
$4,100.00- $3,485.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs. 118" lifting A-3023
THE BEST CHOICE FOR NARROW SITE 650-watt drive motor, 2,200-watt lift motor. Forks are adjustable to fit most pallets. Curtis (US Brand) Controller. Use GEL battery free to maintain. Both sides of button for lifting and lowering operation. Multi-function display shows the working hours,...
- $6,205.99
$7,300.00- $6,205.99
- Unit price
- per
Brand:
Apollolift
Apollolift Powered Forklift Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs. 118" lifting A-3042
THE BEST CHOICE FOR NARROW SITE 650-watt drive motor, 2,200-watt lift motor. Forks are adjustable to fit most pallets. Curtis (US Brand) Controller. Use GEL battery free to maintain. Both sides of button for lifting and lowering operation. Multi-function display shows the working hours,...
- $6,000.00
$6,000.00- $6,000.00
- Unit price
- per

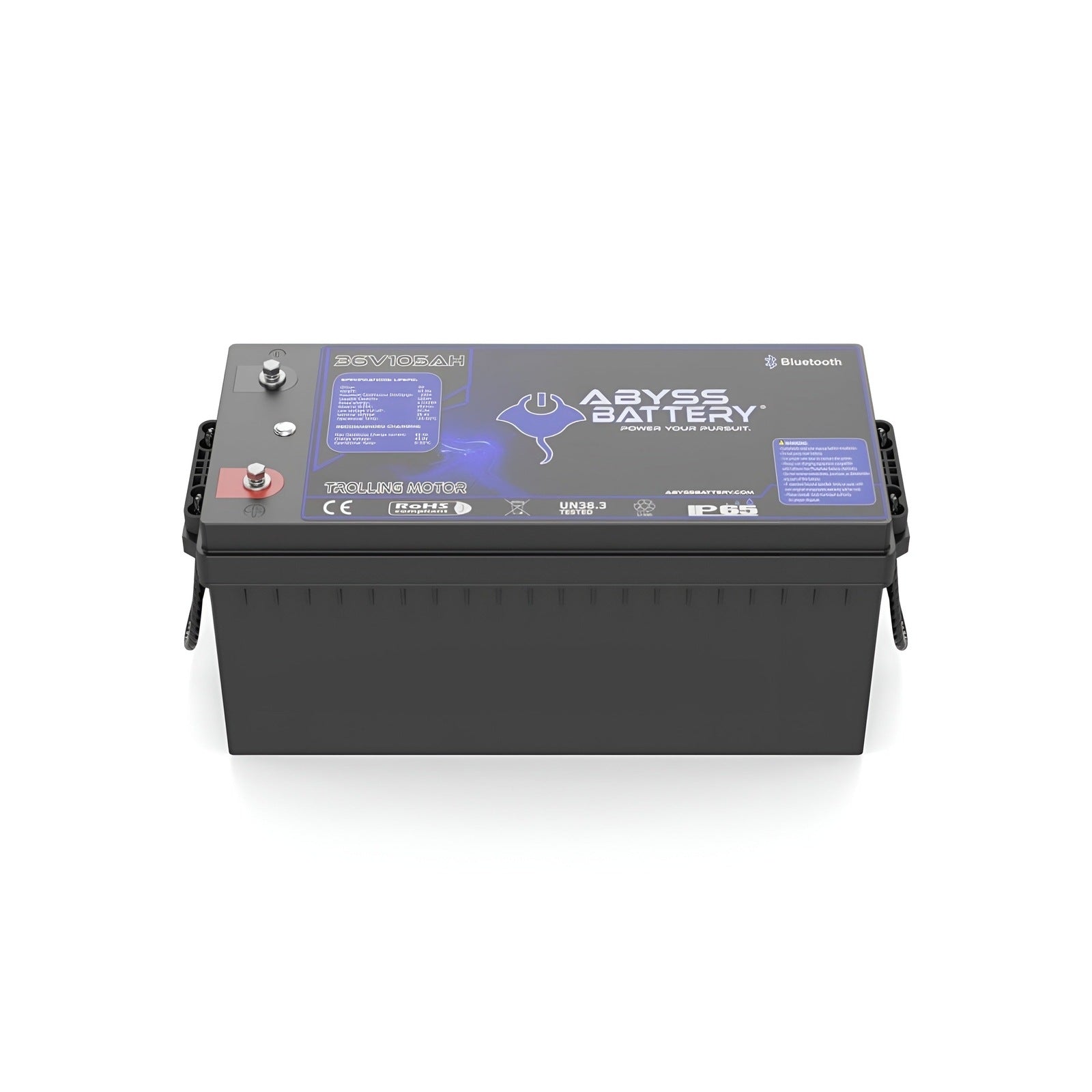

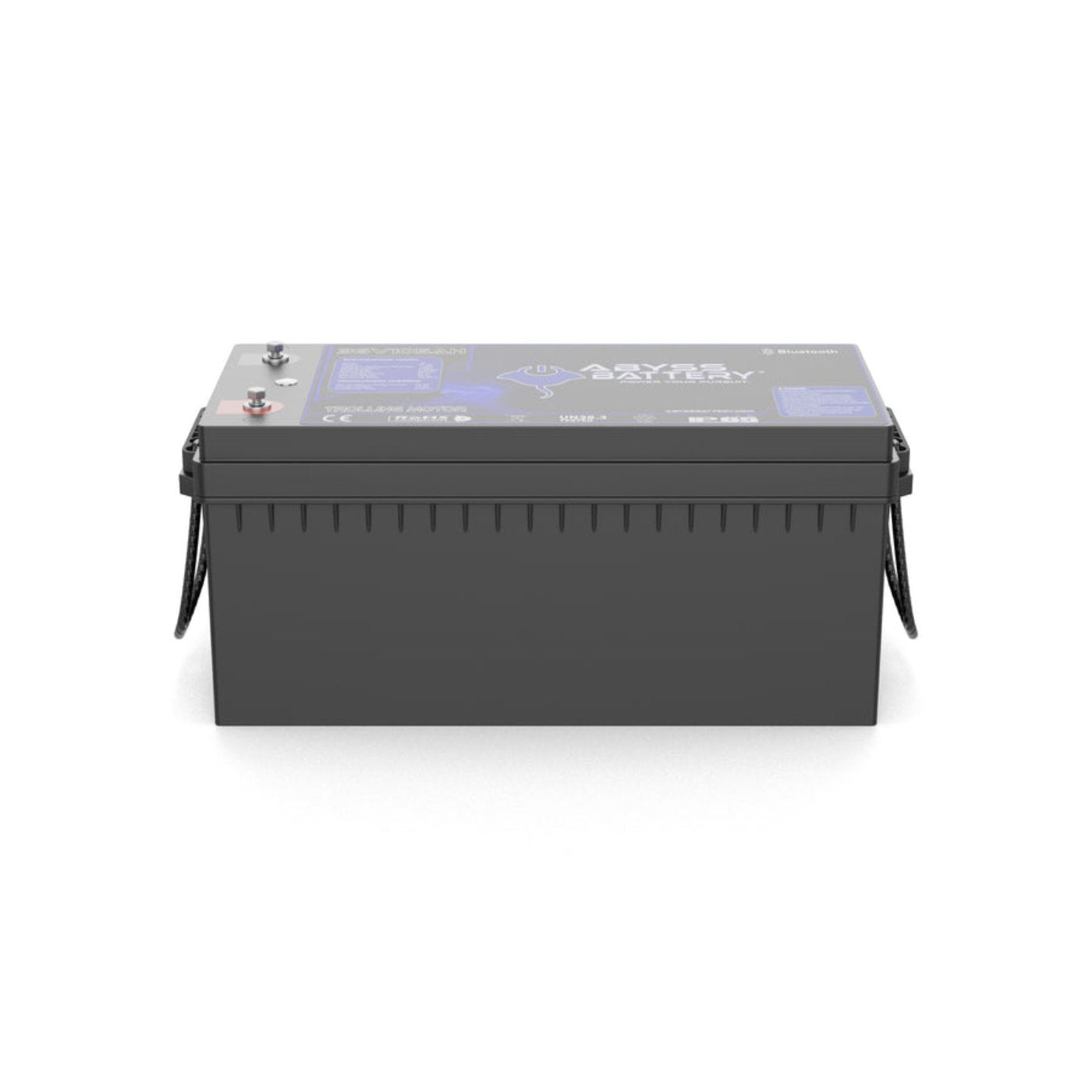

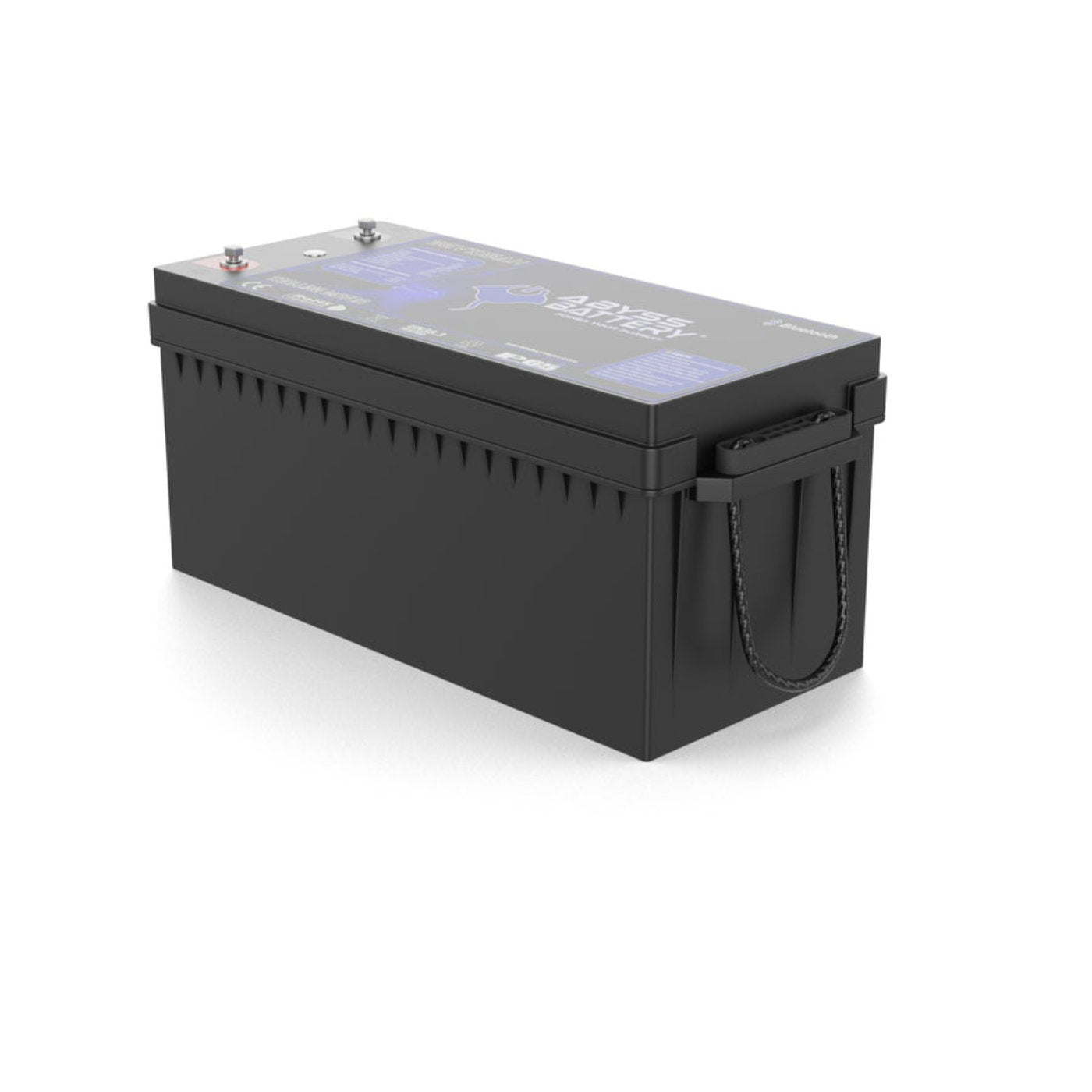

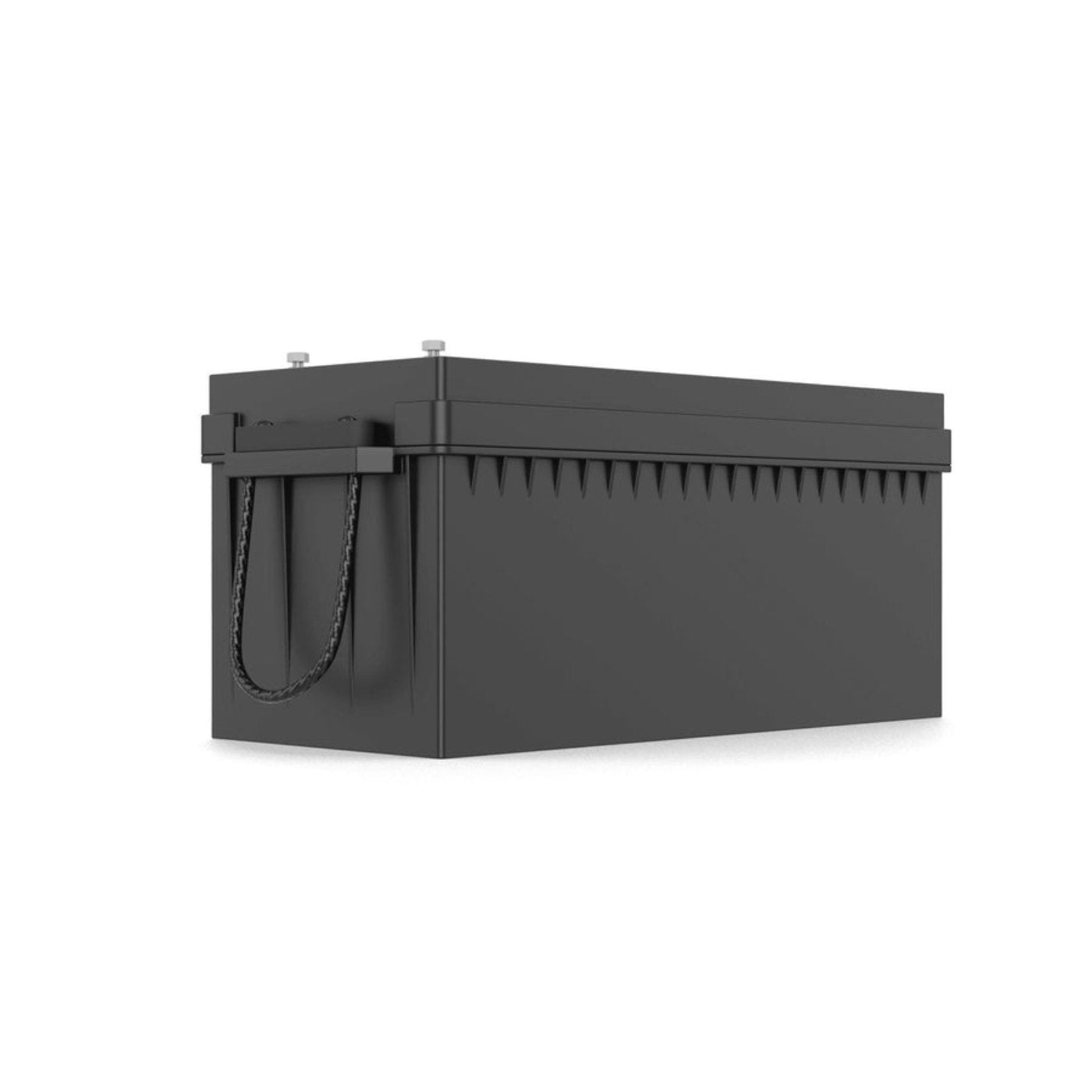

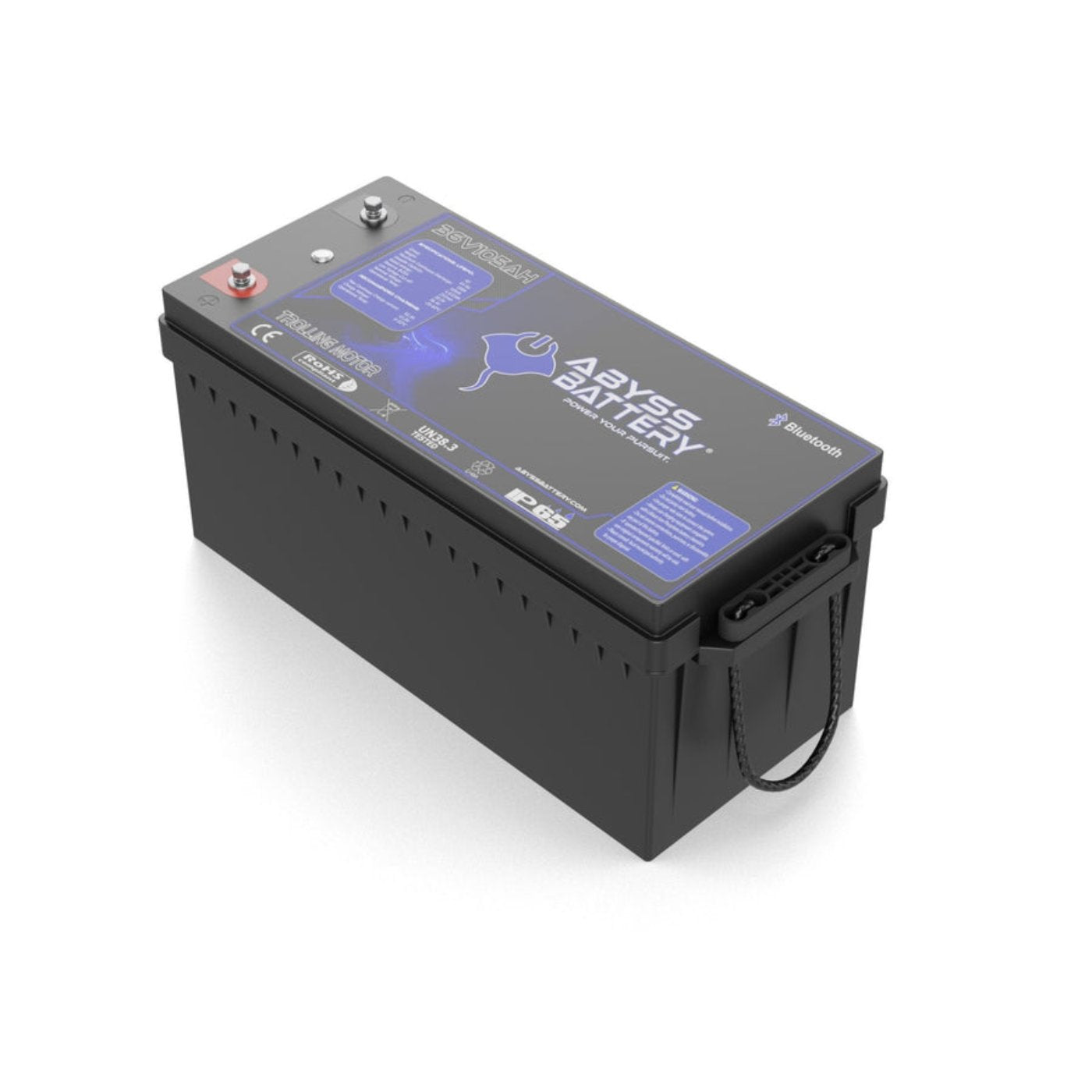

Abyss Battery 36v 105ah Lithium Trolling Motor Battery - AB-36V105-BT
Swap your unreliable trolling batteries for a powerful ABYSS® 36V 105Ah Lithium Trolling Motor Battery. This single group 4D lithium battery is compact, lightweight, and will free up storage space on your boat by replacing three 12 volt Lead-acid or AGM group 31 batteries in series.
Whether you’re trolling in calm weather or fighting the wind, this battery will back you up even with load-heavy consumption. Ideal for deep cycle applications in diverse marine environments, seasons, and temperatures for center console boats 39' ft and up. Our 36V 105Ah Lithium Trolling Motor Battery gives you a long and steady draw to last even for multi-day fishing trips. Just set it, charge it, and off you go.
Features
-
Higher qualified Grade-A cylindrical cells: UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000 times and excellent consistency.
-
Bluetooth Connectivity: Monitor the battery status (charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.
-
Built-in Heating: Uniform internal heating is an important feature of our cold-weather performance batteries, as many external heating blanket options currently available cannot sense the internal temperature of the cells and may not be completely effective at heating the battery throughout. Our system features proprietary technology that draws power from the charger itself, requiring no additional components. The entire process of heating and charging is completely seamless. Simply plug the battery into our lithium charger and the internal heating and monitoring system takes care of the rest.
-
More stable and firm internal structure: The cell holders within our battery protect and separate each cell to avoid any short circuit risks caused by intense vibration or impact. The separation and space created between each cell also improves the overall heat dissipation within the battery pack while charging and discharging.
Specifications
| TECHNICAL SPECIFICATIONS | DETAILS |
|---|---|
| Nominal Voltage | 38.4V |
| Nominal Capacity | 105Ah |
| Parallel Connection | Maximum 6 units |
| Series Connection | No |
| Bluetooth Management System (BMS) | 12S100A (Available on Android/iOS) |
| Charge Voltage | 43.2±0.6 |
| Standard Charge Current | 21A |
| Fast Charge Current | 52A |
| Max. Continuous Discharge Current | 100A |
| Peak Discharge Current | 700A (300ms) |
| Discharge Cut-off Voltage | 30V |
| Cycle Life | 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Charge Efficiency | 100% @0.2C |
| Discharge Efficiency | 98-100% @1C |
| Operating Charge Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -5°C to 45°C (23°F to 113°F) |
| Dimensions: | 20.47" x 9.44" x 8.66" in |
| Approximate Weight: | 61 lbs (29 Kg) |
| Terminal Type: | M8 |
| Case | Color/Material: Black Plastic case (ABS) |
| IP Rating: | IP65 |
| Cell Type: | Cylindrical LiFePO4 cell |
| Cell Holder: | Yes |
Product Manual
Product Manual - AB-36V105-BT
What Our Experts Think
- High Efficiency: The Abyss Battery 36V 105Ah Lithium Trolling Motor Battery provides consistent power, ensuring longer runs and reliable performance for your trolling motor.
- Lightweight & Compact: Compared to traditional lead-acid batteries, this lithium battery is lighter, making it easier to handle and install.
- Durability: Built to last, it offers excellent resistance to vibration and harsh conditions, making it perfect for marine environments.
- Fast Charging: Enjoy quicker recharge times, keeping your boat ready for longer excursions.
- Eco-Friendly: A more sustainable choice, reducing your environmental impact while enhancing your boating experience.
Q&A
Q: How long will the Abyss 36V 105Ah Lithium Trolling Motor Battery last on a single charge?
A: The battery provides extended runtime, typically lasting a full day of fishing or boating, depending on usage and motor power.
Q: Can this battery be used for deep cycle applications?
A: Yes, it is designed as a deep cycle battery, ideal for continuous use in marine environments.
Q: How long does it take to fully charge the Abyss 36V 105Ah battery?
A: The charging time is typically around 4-6 hours, depending on the charger used.
Q: Is this battery compatible with all trolling motors?
A: It is compatible with most 36V trolling motors, but it's always best to confirm with the manufacturer of your motor.
Q: Does the Abyss 36V 105Ah battery require maintenance?
A: Lithium batteries require minimal maintenance. Simply ensure it’s charged regularly and stored in a cool, dry place.
Maintenance Tips
- Regular Charging: Keep the battery charged between 20%-80% for optimal lifespan.
- Avoid Over-Discharge: Never discharge the battery below 20% to maintain performance.
- Store Properly: When not in use, store in a cool, dry place to prevent capacity loss.
- Clean Connections: Regularly inspect and clean terminals to prevent corrosion.
- Monitor Temperature: Avoid extreme temperatures (above 120°F or below 32°F) during use and storage.
- Use Compatible Chargers: Always charge with the recommended charger to ensure safety and efficiency.
