Description

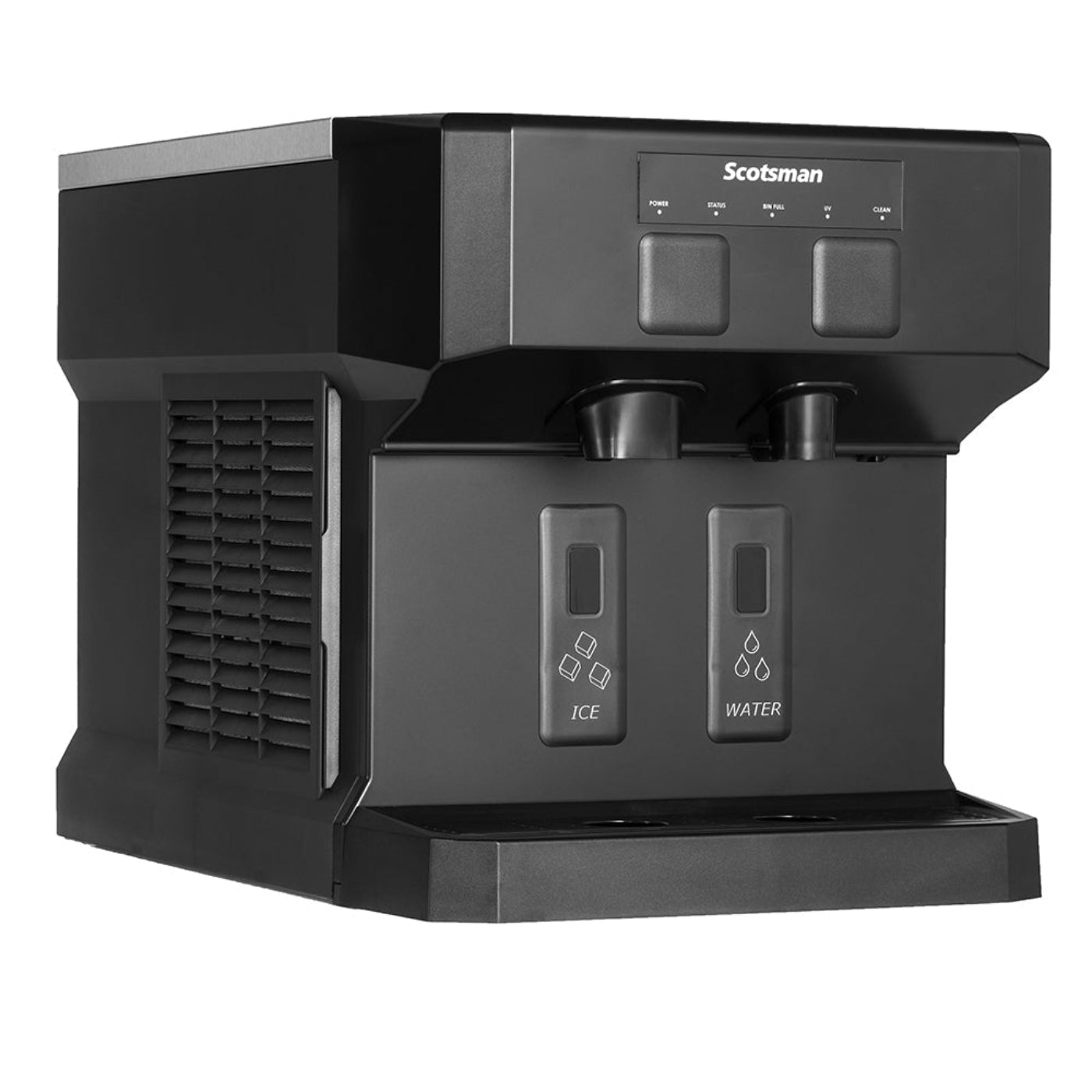

Scotsman HID207 Meridian™ Compact Countertop Nugget Ice & Water Dispenser 196 lb Production, 7 lb Storage – SCHID207AX1

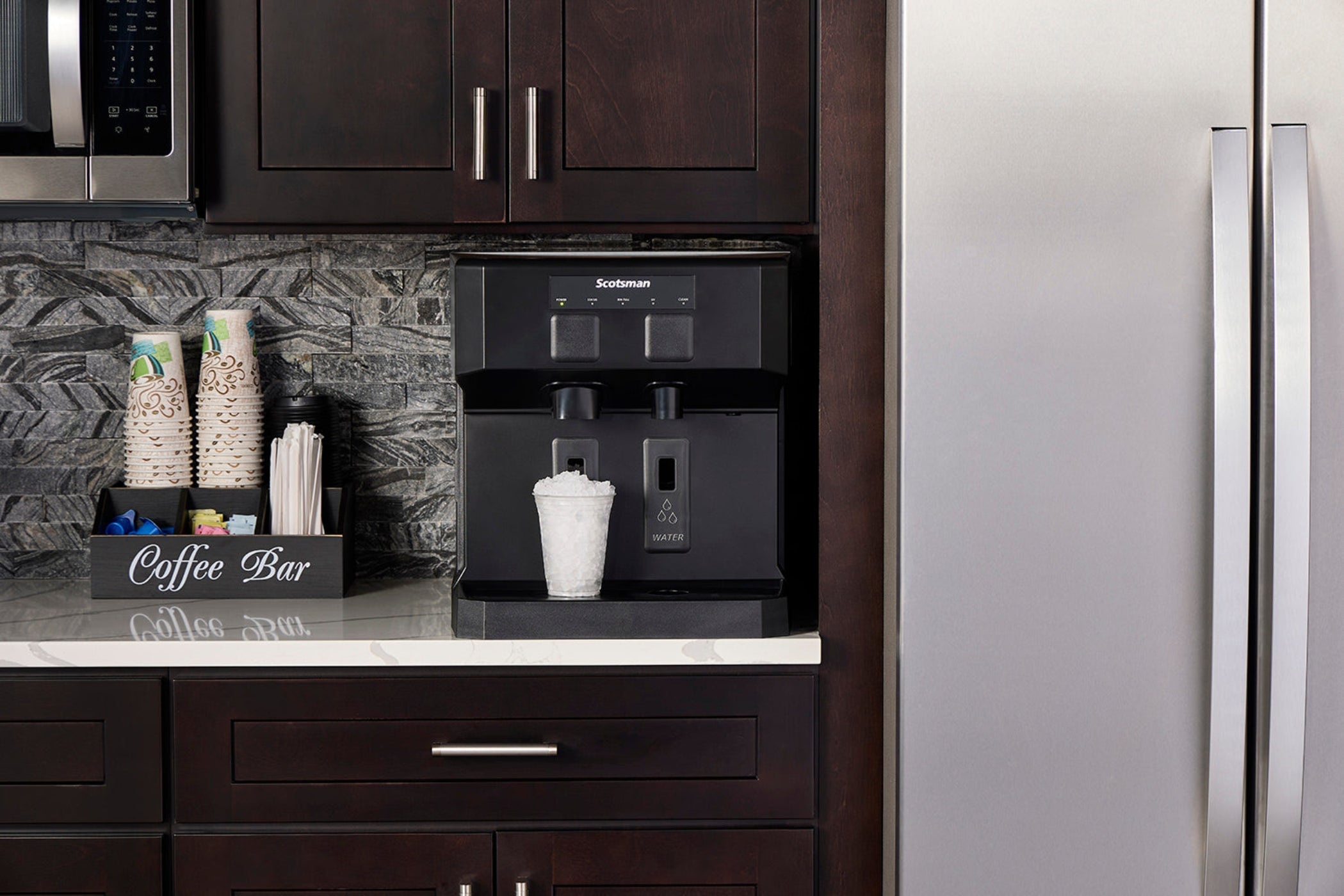

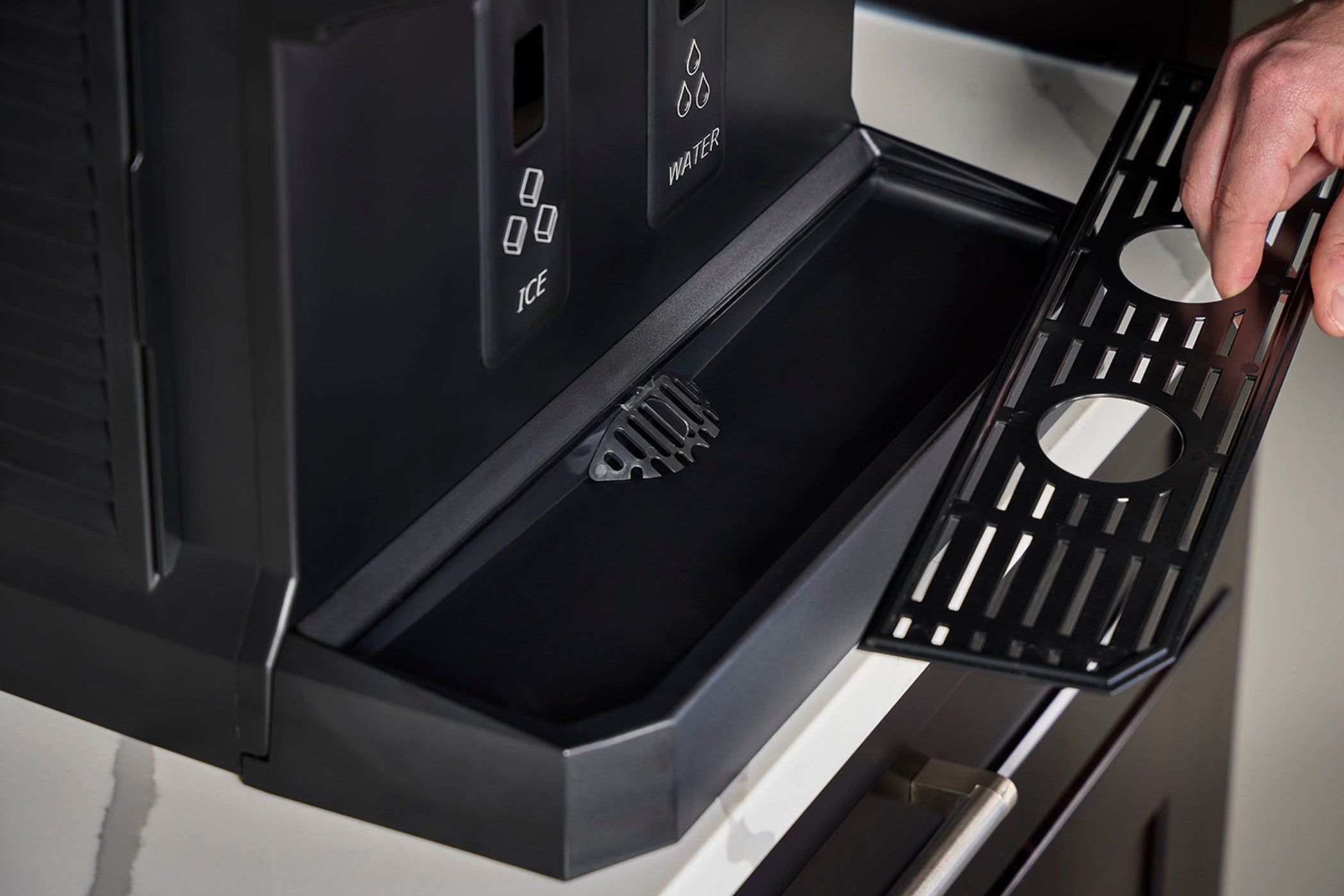

The Meridian™ Compact Ice & Water Dispenser features nugget style, Original Chewable Ice®, and is air-cooled. It has a production capacity of up to 196 lb/24 hours at 70°/50° (160 lb AHRI certified at 90°/70°), and a 7 lb bin storage capacity. It includes a sealed maintenance-free bearing, UV-LED internal sanitation module, and AutoAlert™ external indicating lights. The unit has a removable bin and air filter, SmoothStream™ water dispensing, and illuminated dispensing. It also features removable spouts and sink, an integrated sink drain cover, a consolidated 0.75″ drain outlet, a recessed utility chase, and a stainless steel evaporator and auger. The dispensing area is ADA compliant, measuring 8.15″, and the unit has a specific QR code. It comes with snap-on panels for an ice-only configuration, AgION® antimicrobial protection, uses R-290 refrigerant, and includes a 6’ power cord with a NEMA 5-15P plug. The voltage is 115V/60/1-ph, with 5.8 amps, and it is cULus, NSF, AHRI certified, engineered and assembled in the USA.

We also have free shipping (not including lift gate or residential charges).

Features

• Compact footprint produces up to 196 lb. per day, which can serve up to 75 people.

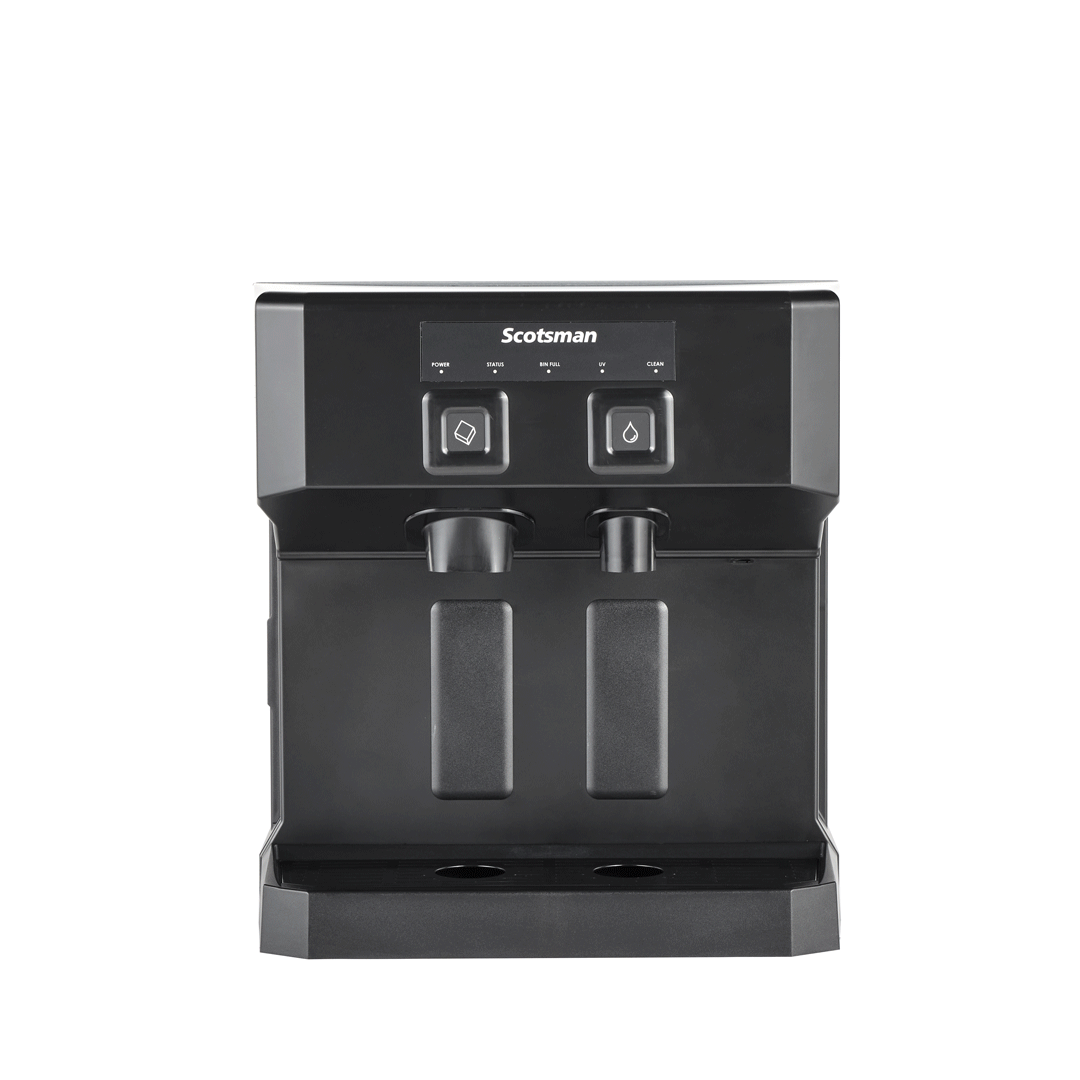

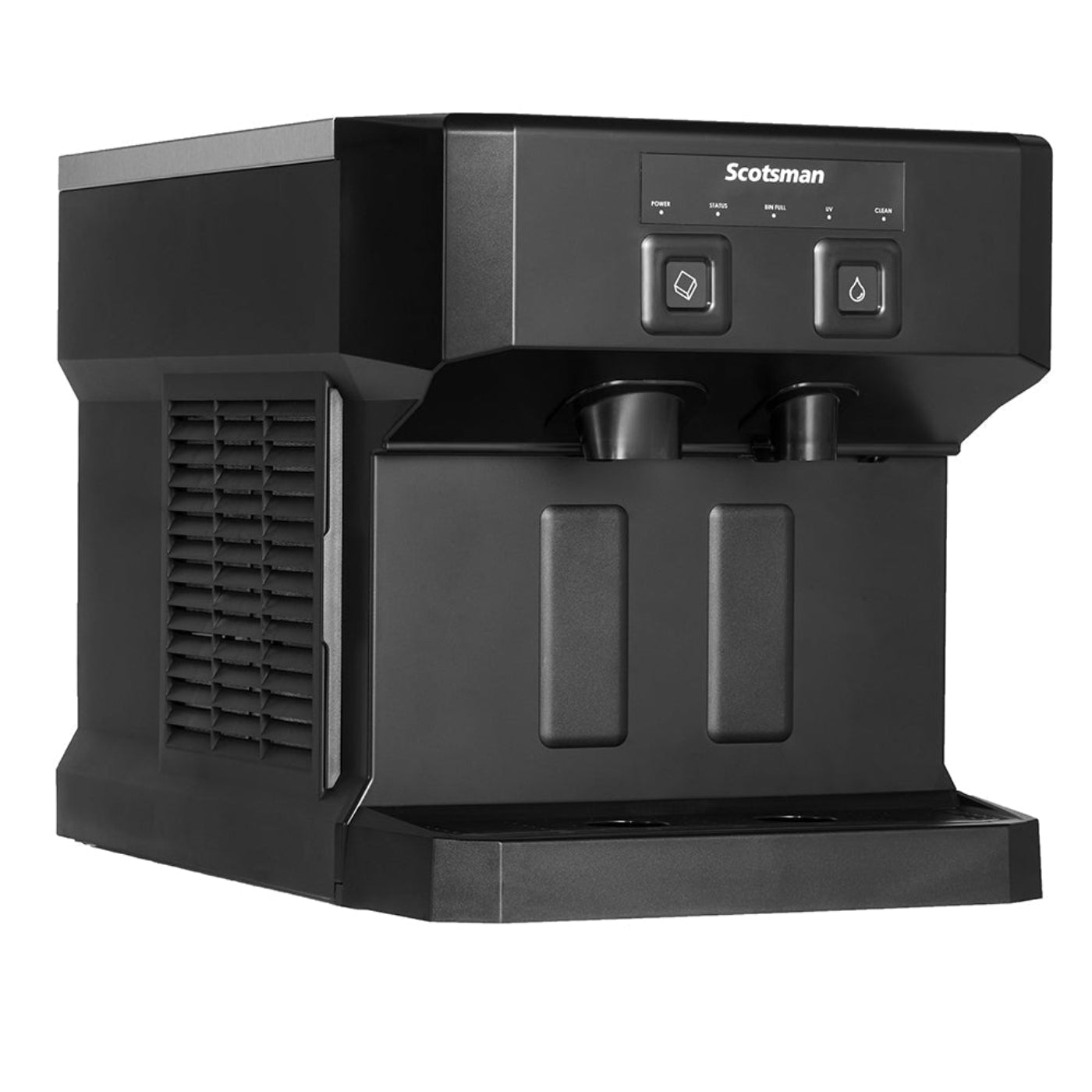

• Touch-free, infrared dispensing of ice and water eliminates the need to physically touch the dispenser for more sanitary operation. OR Antimicrobial push-button dispensing provides quick and efficient operation.

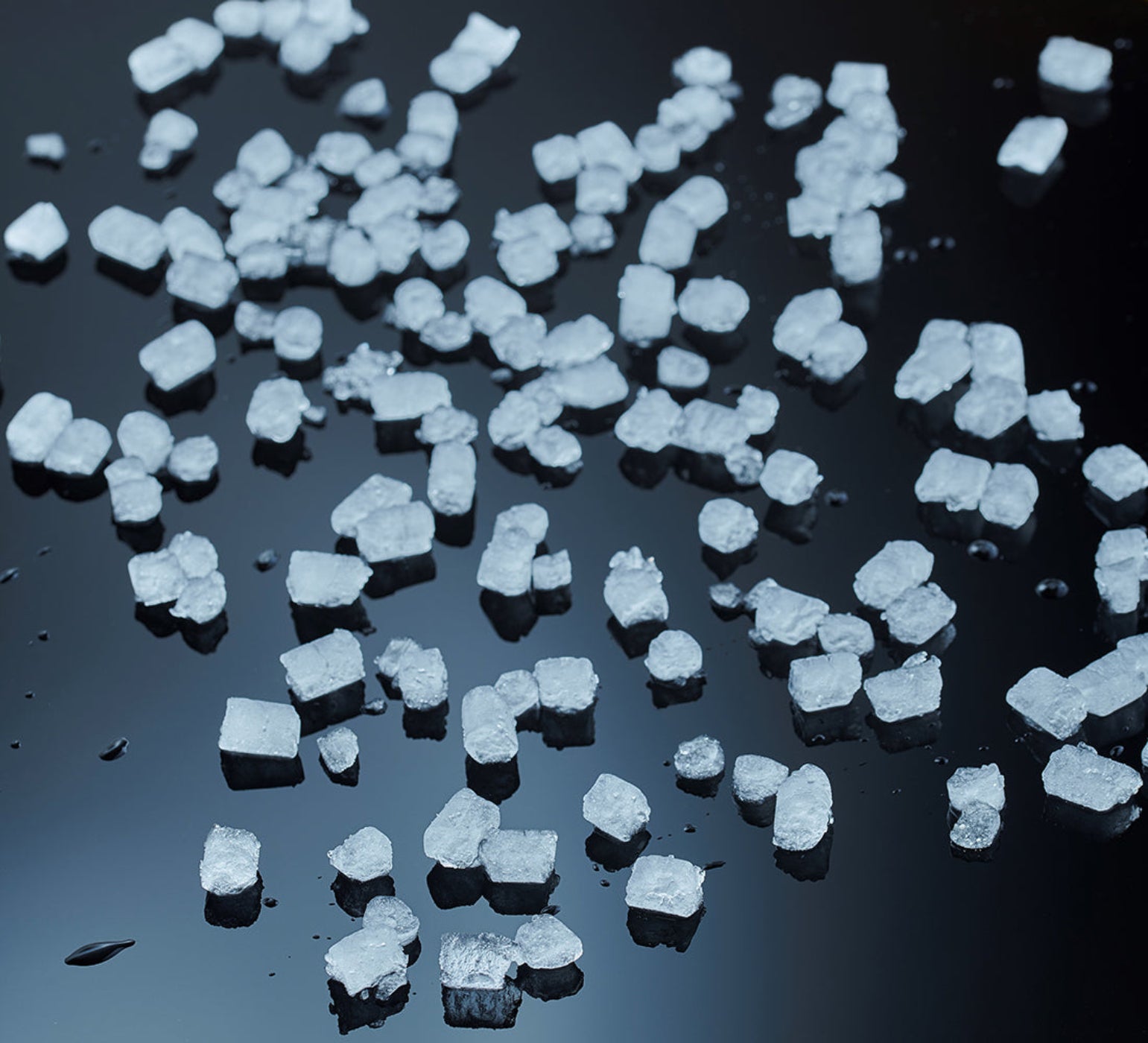

• Dispenses soft, Original Chewable Nugget Ice; Up to 20% softer than competition for optimal mouthfeel.
• Uses environmentally responsible, R-290 refrigerant, with zero ozone depletion potential and low GWP.
• Inherently more energy and water efficient than cube machines, without noisy harvest cycles.
• Designed, engineered, and assembled in USA.
• 100% of units are quality checked before leaving Scotsman’s ISO 9001:2015 certified plant in Fairfax, South Carolina

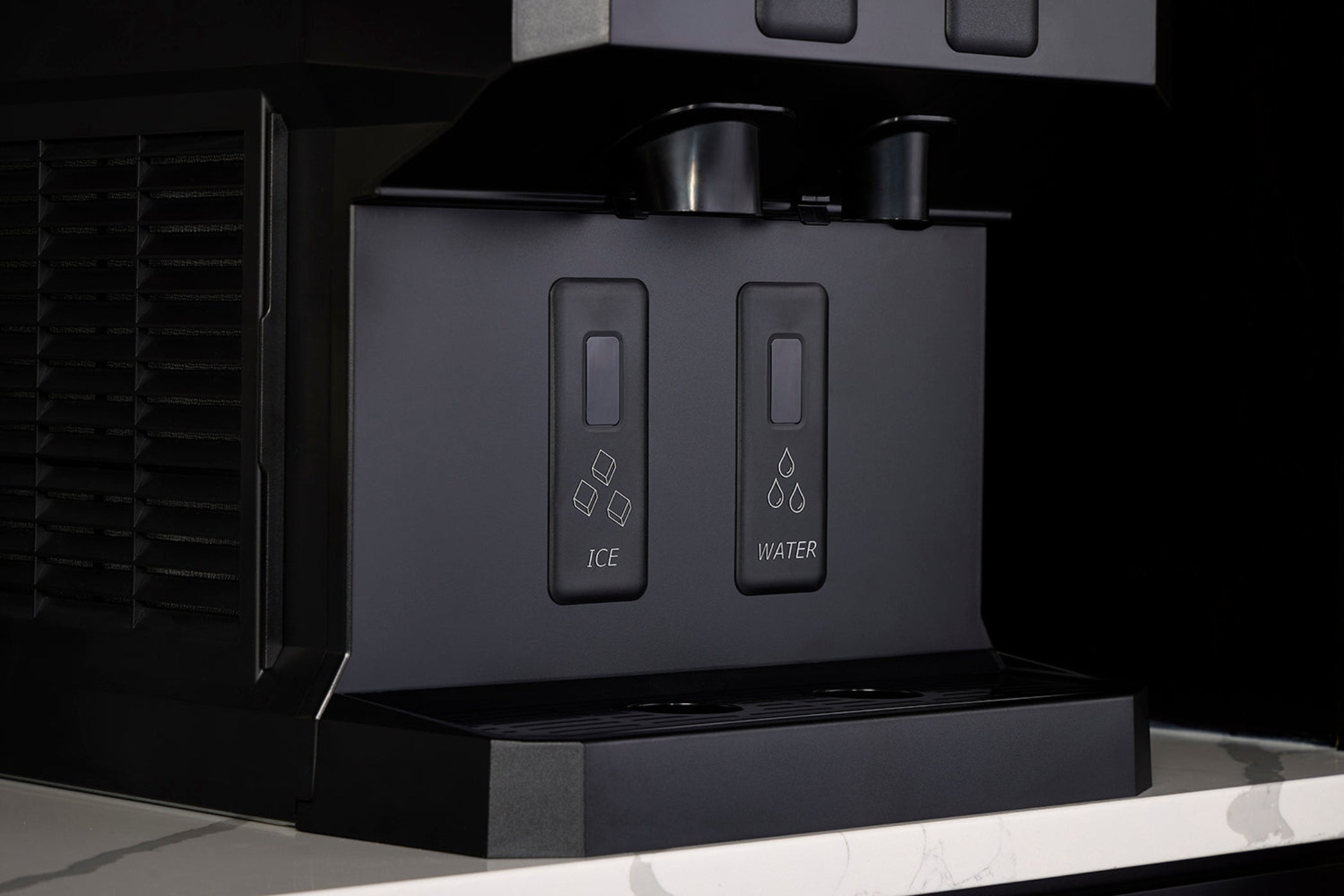

• ADA compliant dispensing area meets reach range requirements.

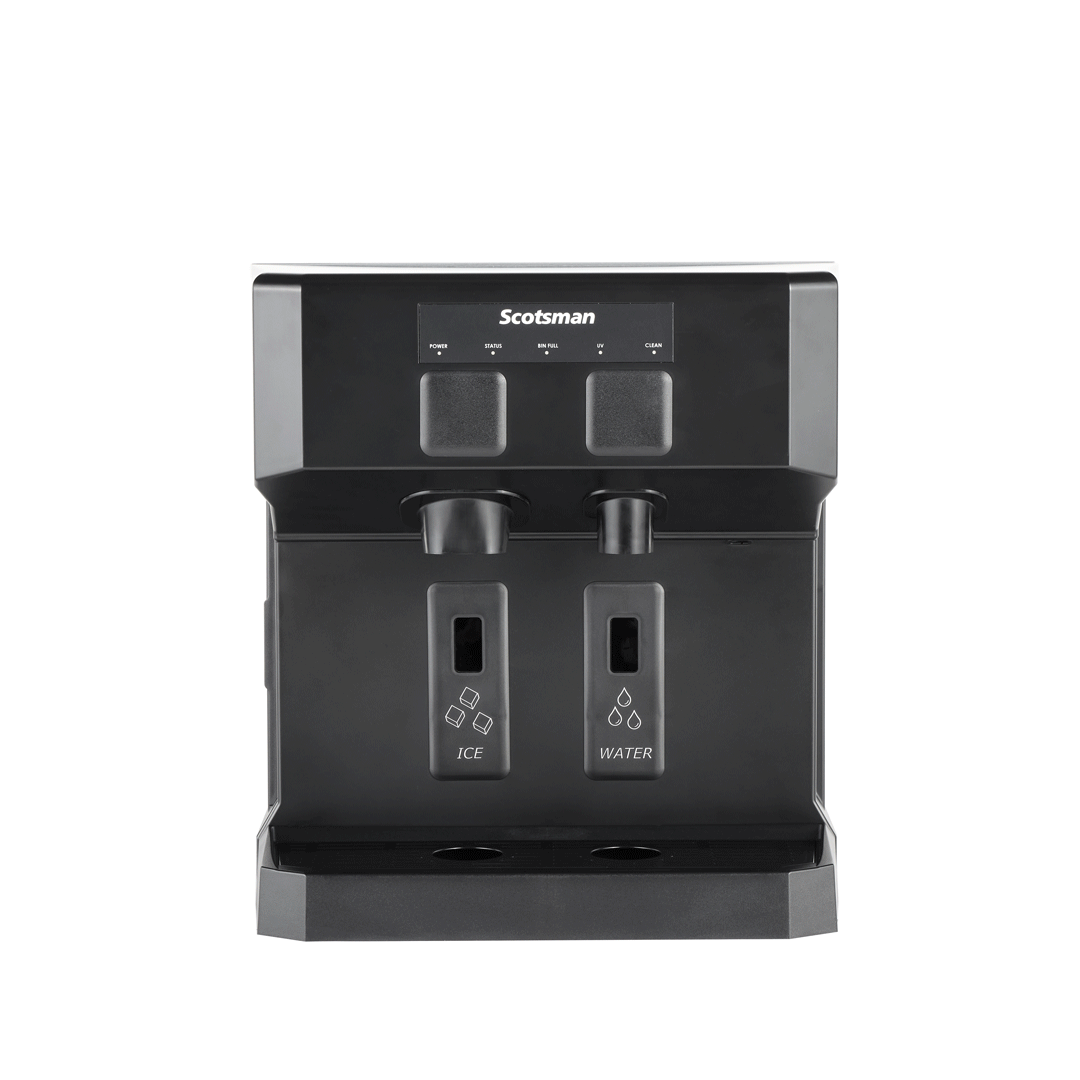

• Touch-free, infrared dispensing of ice and water eliminates the need to physically touch the dispenser for more sanitary operation.
• SmoothStream™ water dispensing technology, combined with illuminated dispensing, to reduce splashing while keeping the machine and surrounding areas clean.

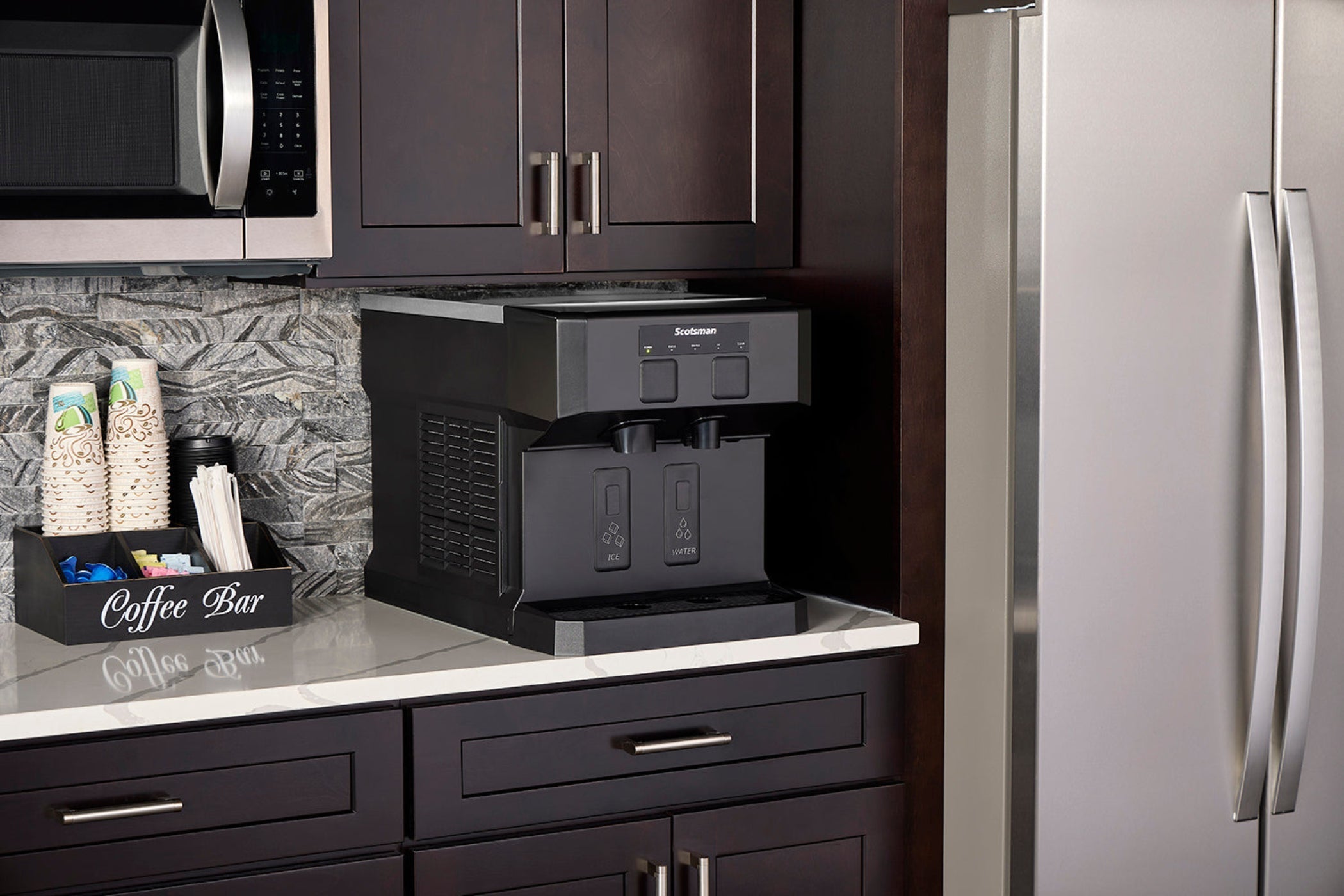

• Space-maximizing design, featuring recessed utility chase and uniquely contoured sides for enhanced breathability and tight installs.
• Ice only configuration available with included snap-on panels.
• Includes 6′ power cord with NEMA 5-15P plug.
• Optional HSTCD16-A machine stand allows for freestanding configuration, with reversible locking door and internal storage shelf.

Specifications

What our Experts Think

• High Production Capacity: Produces up to 196 lbs of nugget ice per 24 hours under optimal conditions (70°F air and 50°F water temperatures), with an AHRI-certified production rate of 160 lbs at 90°F air and 70°F water temperatures.

• Compact Footprint: Measuring 16.05″ in width, 23.44″ in depth, and 17.54″ in height, this dispenser is designed to fit into spaces with limited room without compromising on performance.

• Efficient Storage: Features a 7 lb storage bin, ensuring a steady ice supply during peak times while maintaining a compact form factor.

• Touch-Free Dispensing: Equipped with TouchFree® infrared dispensing, the HID207 allows users to obtain ice and water without physical contact, promoting hygiene and convenience.

• UV-LED Sanitation: Incorporates an internal UV module that actively treats incoming water, ensuring clean and refreshing ice and water.

• Durable Construction: Built with sealed, maintenance-free bearings and high-quality components, reducing the need for frequent maintenance and extending the unit’s lifespan.

• User-Friendly Features: Includes an AutoAlert™ indicator panel that displays the machine’s status, SmoothStream™ water dispensing technology to reduce splashing, and removable components such as the bin, air filter, spouts, sink, and grill for easy cleaning.

• Environmental Considerations: Utilizes R-290 refrigerant, which is eco-friendly with zero ozone depletion potential and low global warming potential.

Q&A

Q: What is the daily ice production capacity of the Scotsman HID207? A: The Scotsman HID207 produces up to 196 pounds of nugget ice per day under optimal conditions (70°F air and 50°F water temperatures).

Q: How much ice does the storage bin hold? A: The integrated storage bin has a capacity of 7 pounds, suitable for moderate ice consumption needs.

Q: What are the dimensions of the unit? A: The HID207 measures 16.05 inches in width, 17.54 inches in depth, and 23.44 inches in height, making it ideal for countertop installation.

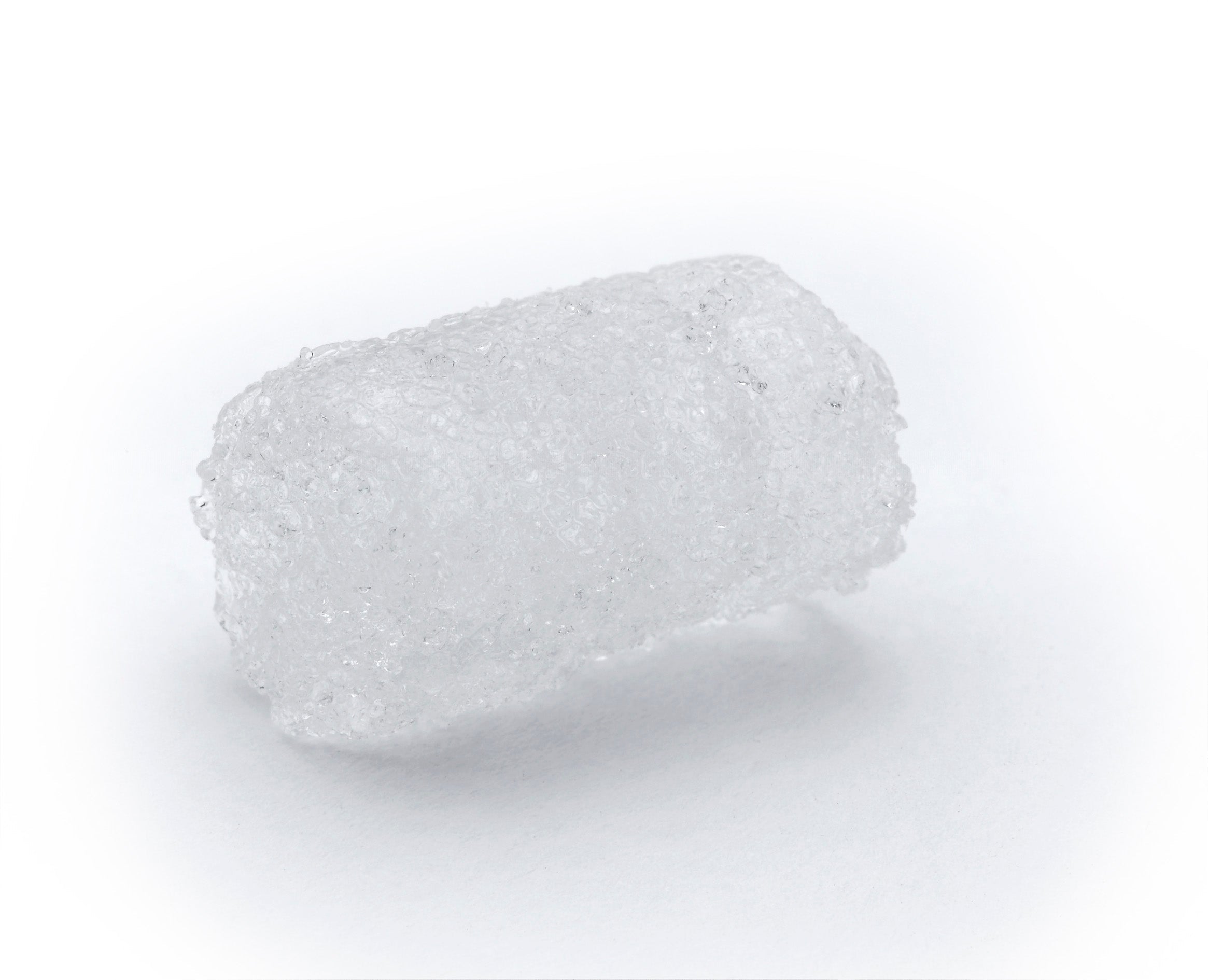

Q: What type of ice does this machine produce? A: It produces nugget ice, known for its chewable texture and suitability for various beverage applications.

Q: Is the Scotsman HID207 energy-efficient? A: Yes, this model utilizes R-290 refrigerant, which has zero ozone depletion potential and low global warming potential, making it an environmentally friendly choice.

Q: What are the electrical requirements for this ice maker? A: The HID207 operates on a 115V, 60Hz, single-phase electrical supply, drawing 5.8 amps, and comes with a 6-foot power cord with a NEMA 5-15P plug.

Q: How does the machine facilitate maintenance? A: It features sealed, maintenance-free bearings, removable bin, air filter, spouts, and sink, as well as an internal UV-LED sanitation system that treats incoming water, ensuring freshness and reducing maintenance needs

Q: What dispensing options does the HID207 offer? A: The dispenser offers touch-free, infrared sensor dispensing, promoting hygiene, and includes an internal UV-LED sanitation system that treats incoming water

Q: Is the Scotsman HID207 suitable for outdoor use? A: No, this model is designed for indoor use only, specifically for countertop applications.

Q: What warranty coverage does Scotsman provide for this model? A: Scotsman offers a 3-year parts and labor warranty on all components, ensuring reliable performance and peace of mind.

Maintenance Tips

• Regular Cleaning: Clean and sanitize the ice-making and dispensing system every six months to prevent scale buildup and ensure optimal performance.

• Drip Tray Maintenance: Regularly empty and clean the drip tray to prevent overflow and maintain hygiene.

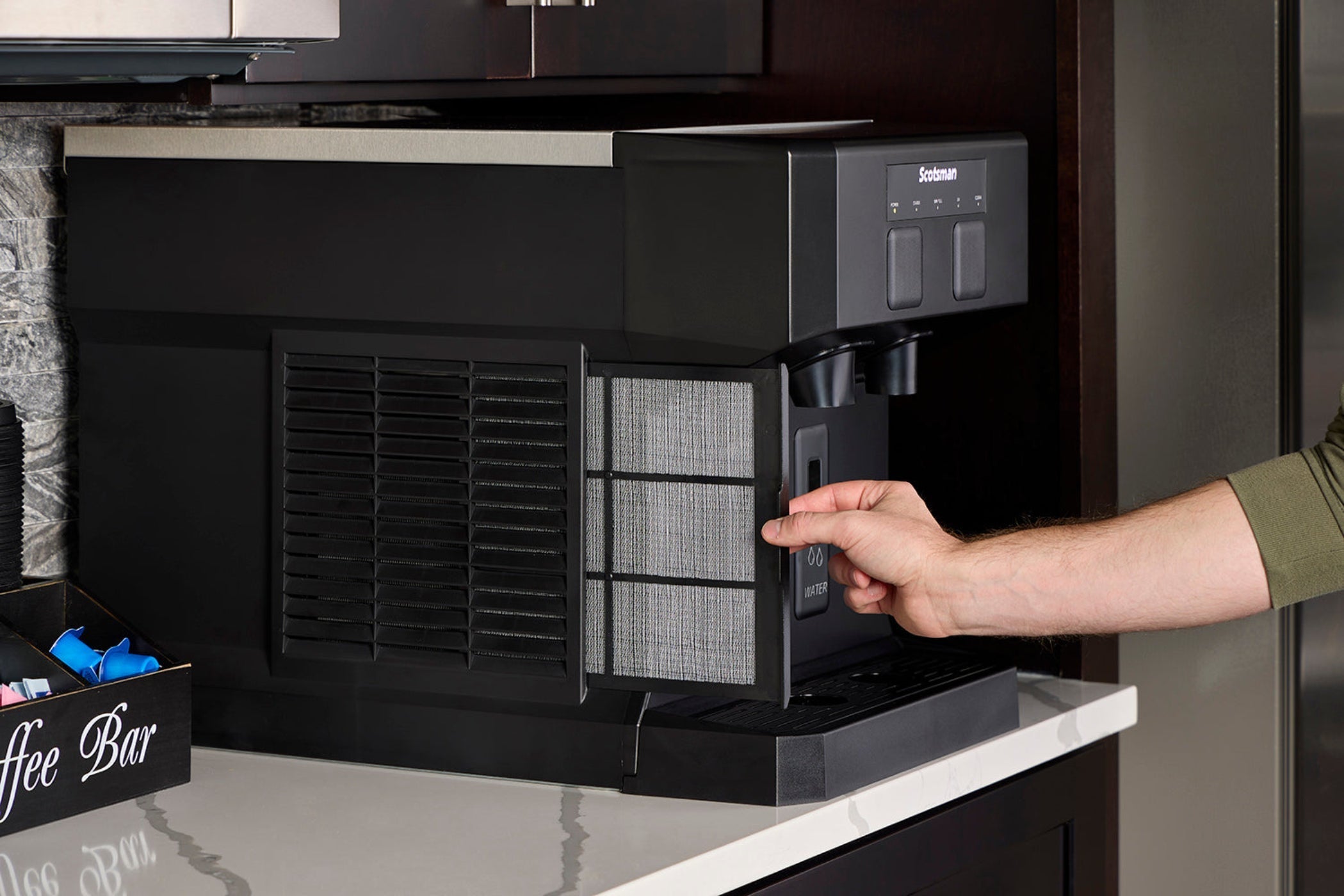

• Air Filter and Condenser Care: Periodically clean the air filter and condenser to ensure efficient operation.

• UV Sanitation System: The HID207 includes a UV water sanitation system. Ensure the UV module is functioning correctly to maintain water purity.

• Monitor Ice Production: Regularly check for unusual noises, reduced ice production, or changes in ice quality, and address issues promptly to ensure consistent operation.

• Professional Servicing: Schedule annual professional maintenance to ensure all components function correctly and to extend the machine’s lifespan.
